2007 Hanse 470e

Boat Name

Dream Catcher

Specs

Builder: Hanse

Designer: judel / vrolijk & co

Flag of Registry: Denmark

Keel: Other

Hull Shape: Monohull

Dimensions

LOA: 47 ft 0 in

Beam: 14 ft 8 in

LWL: 41 ft 4 in

Maximum Draft: 7 ft 5 in

Displacement: 26932 lbs

Ballast: 7837 lbs

Dry Weight: 26932 lbs

Engines

Total Power: 75 HP

Engine 1:

Engine Brand: Yanmar

Year Built: 2007

Engine Model: 4JH3TCE

Engine Type: Inboard

Engine/Fuel Type: Diesel

Location: Center

Propeller: Folding propeller

Drive Type: Sail drive

Engine Power: 75 HP

Tanks

Fresh Water Tanks: (105 Gallons)

Fuel Tanks: (66 Gallons)

Holding Tanks: 2

Accommodations

Number of cabins: 3

Number of heads: 2

Electrical Equipment

Electrical Circuit: 12V

Outside Equipment/Extras

Electric windlass

Accommodations

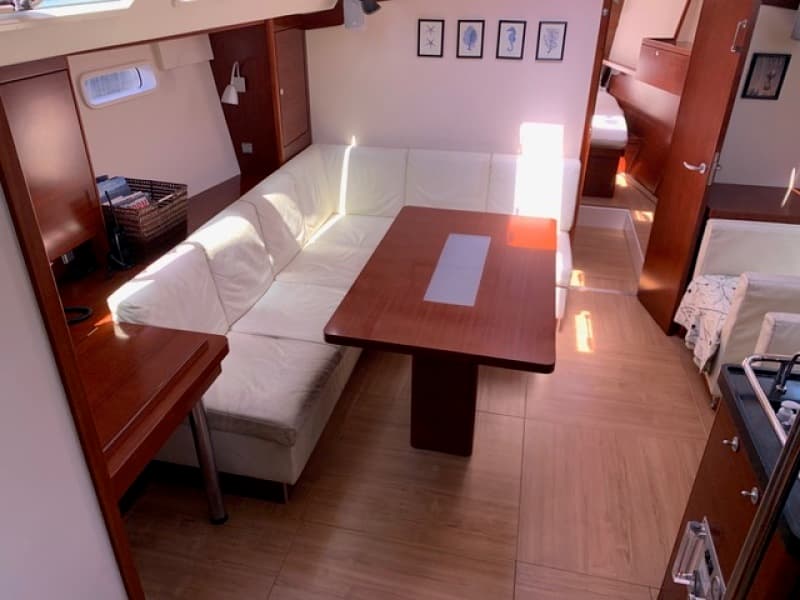

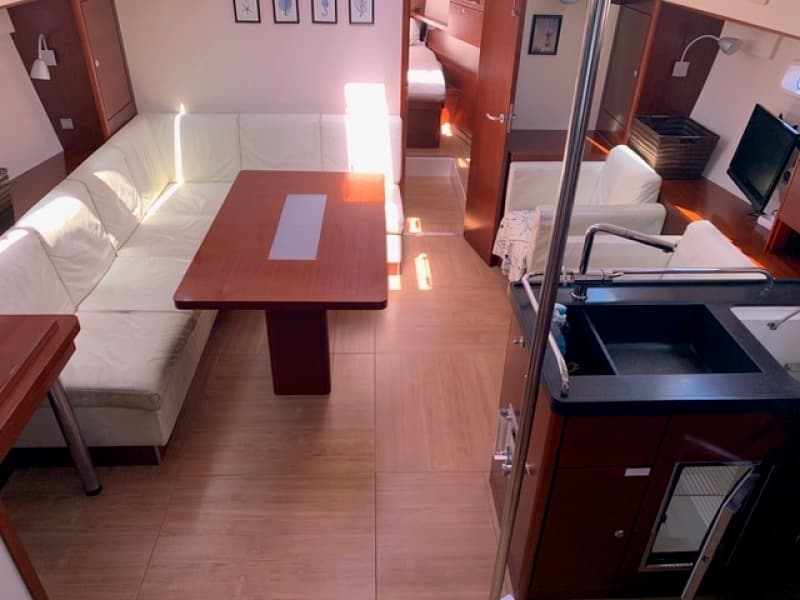

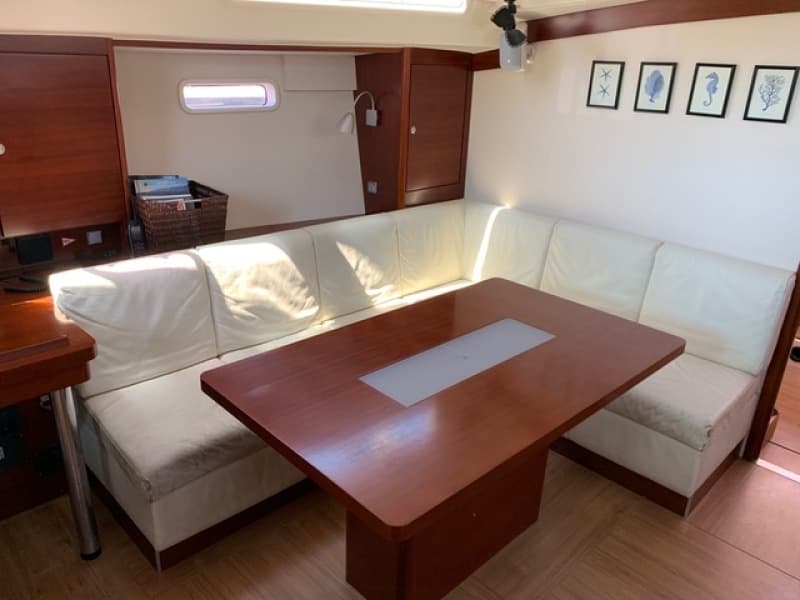

 The Main Salon is bright and airy. The handsome satin finish bright work contrasts nicely with the white paneling. This is a functional and bright interior with a nod toward the classic yachts yet still enjoys all the benefits and amenities of a modern and comfortable cruising yacht.

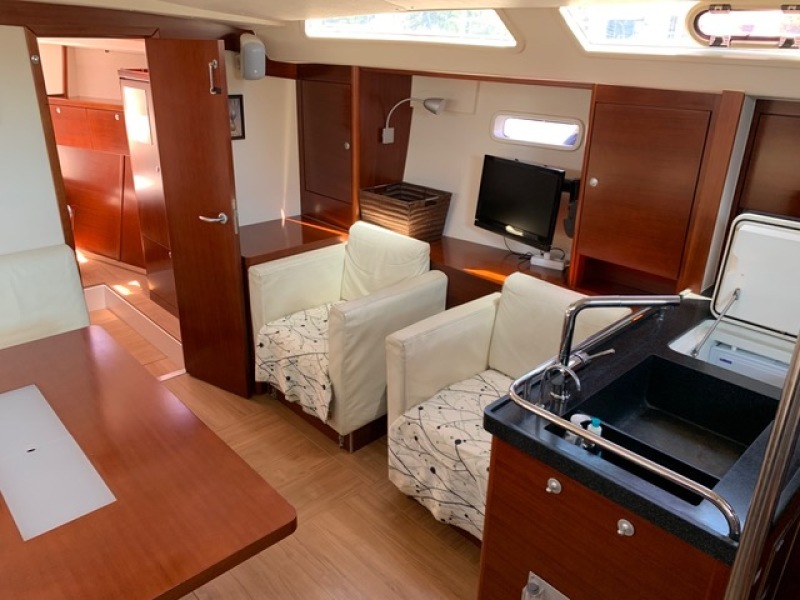

Designed for both long range cruising and fast passages, the interior features a large U shaped Dinette to port and two comfortable chairs to starboard. Thoughtful storage is found everywhere.

• High quality marine plywood, mahogany veneer, satin varnish
•  American Cherry Trim work and paneling in a Satin Finish
• Teak styled floor squares in the saloon for quick access
• Two Retractable and Ergonomic Cream Leather Armchairs

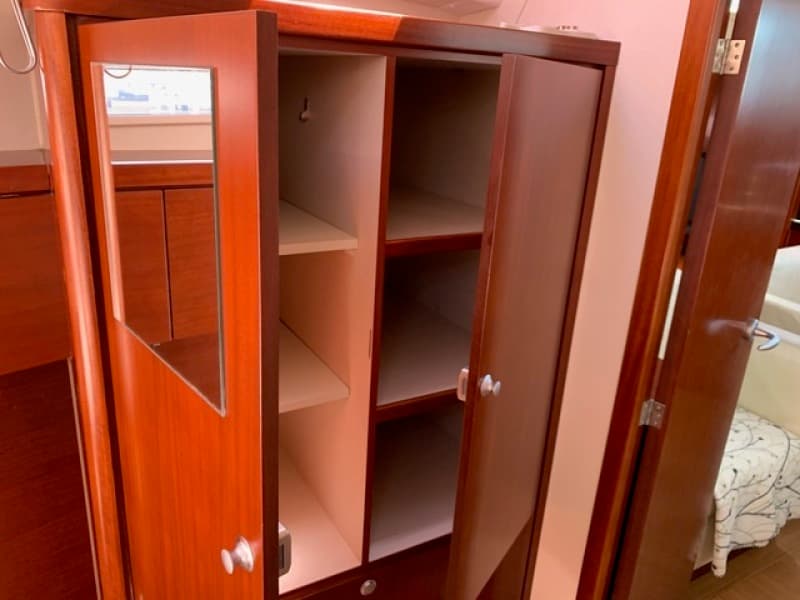

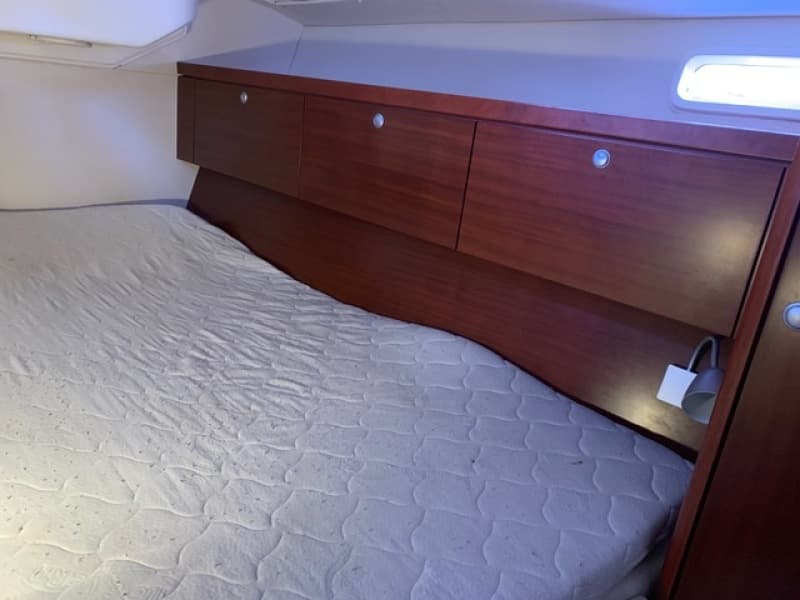

Forward is the Owners cabin with Island Berth, extensive hanging lockers and drawers including a head and shower unit in owners state room (Version A1)

Aft are two Guest Cabins each with storage lockers and Hanging Clothes lockers.

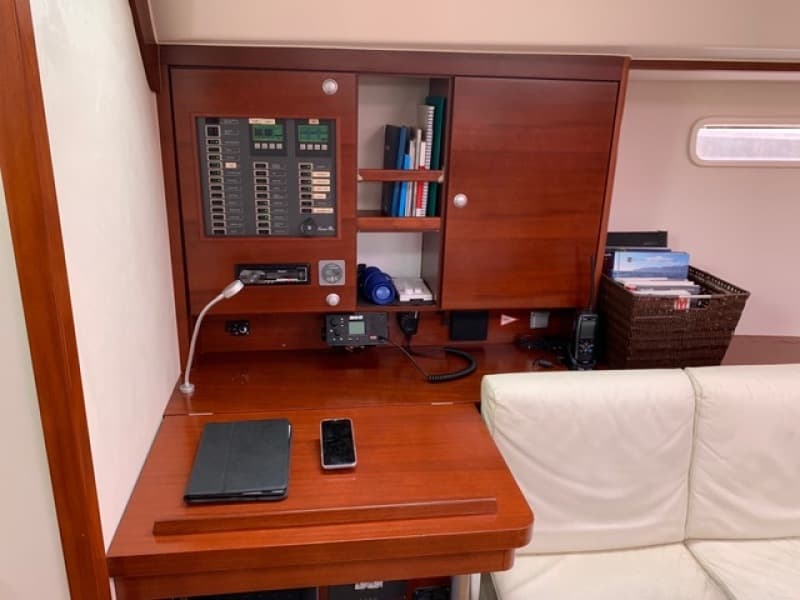

Navigation area

• Seat at navigation station
• Locker above chart table for instruments and books
• 110 V / 230 V / 12 V outlet
• Storage in the chart table
• Chart lights'

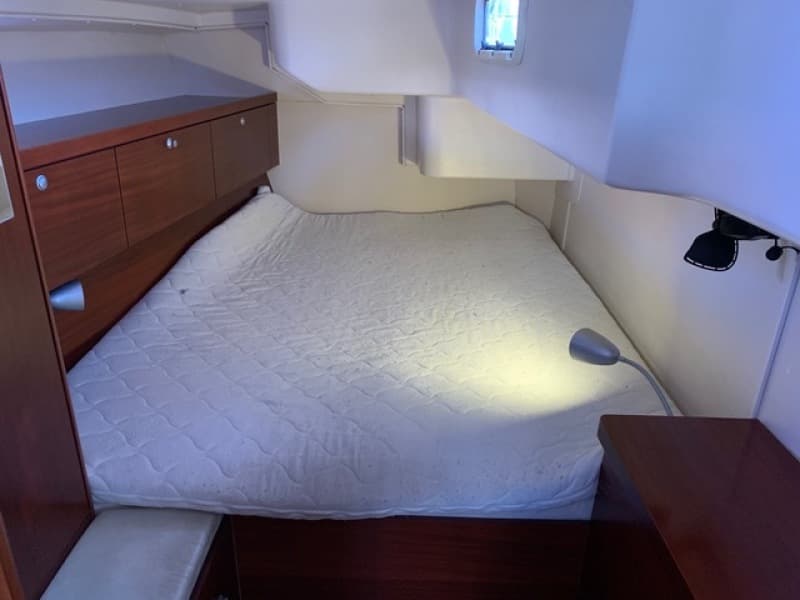

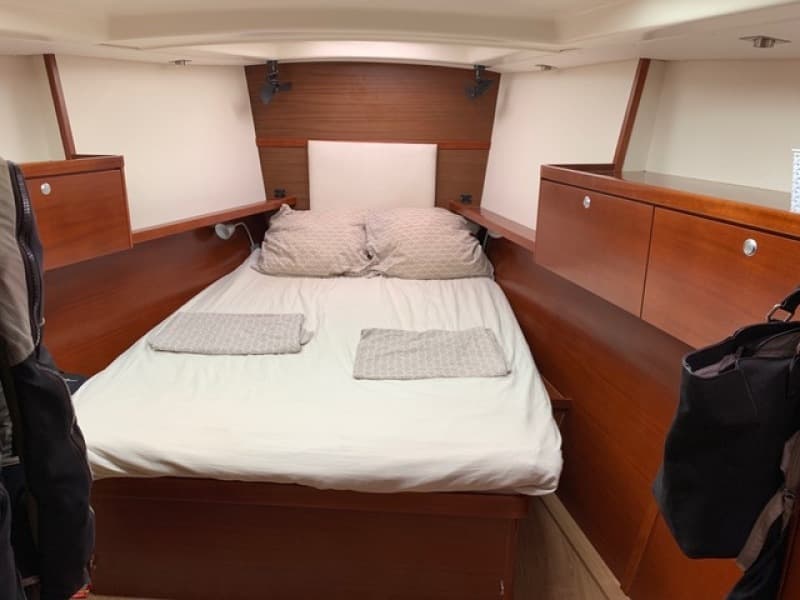

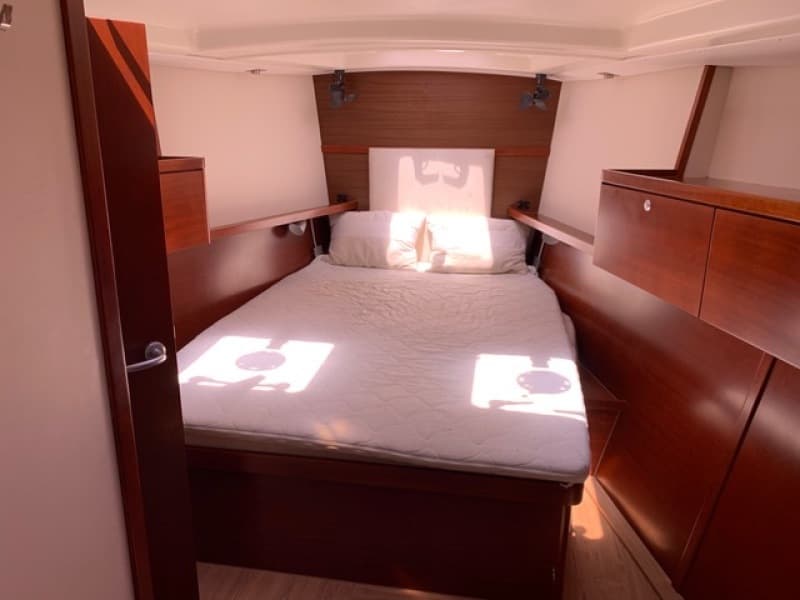

Master Stateroom

• Center Line Bed
• Ensuite Head
• Shower Compartment houses the Washing Machine (2017) that can be easily removed if shower compartment is desired

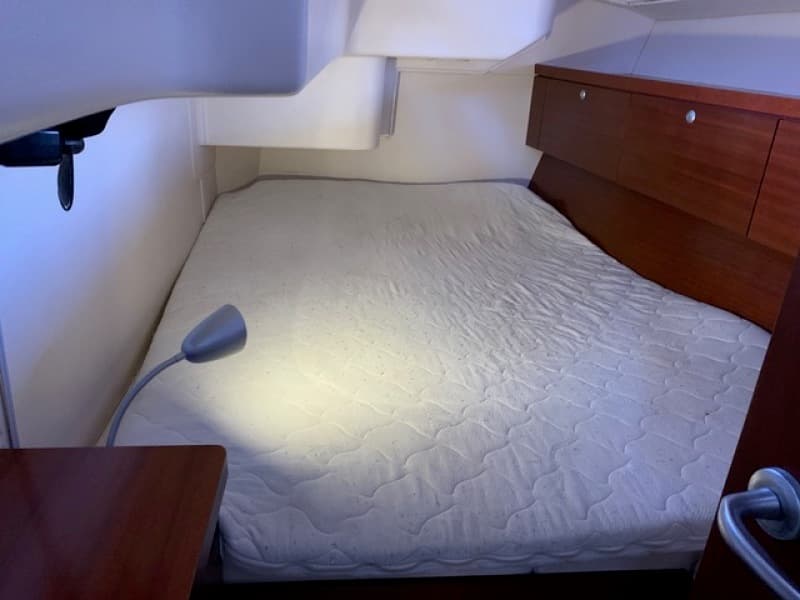

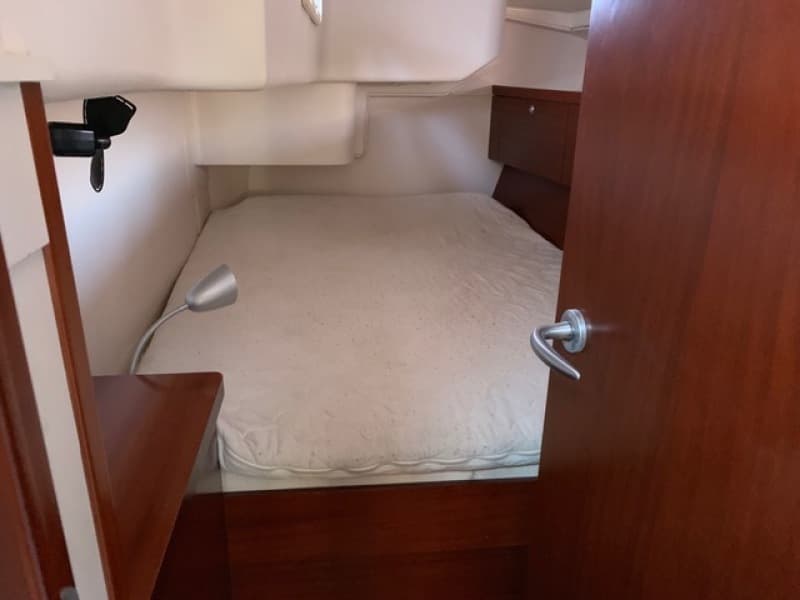

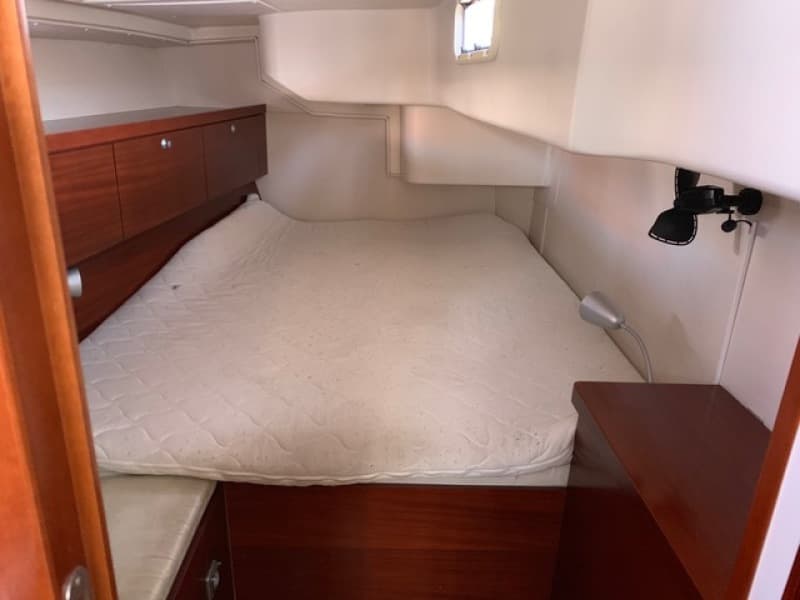

Aft cabins

• 2 double aft cabins with lockers

Interior Concepts

• Different layouts, according to Hanse Individual Cabin Concept

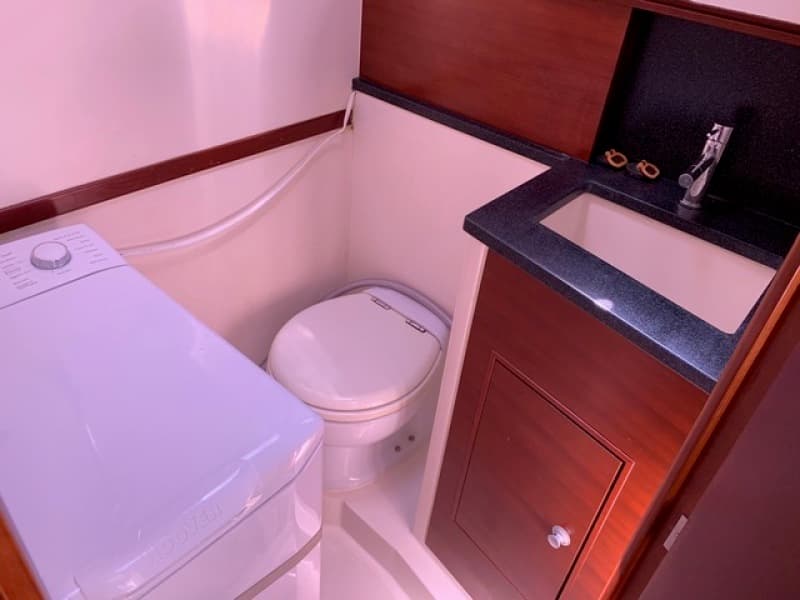

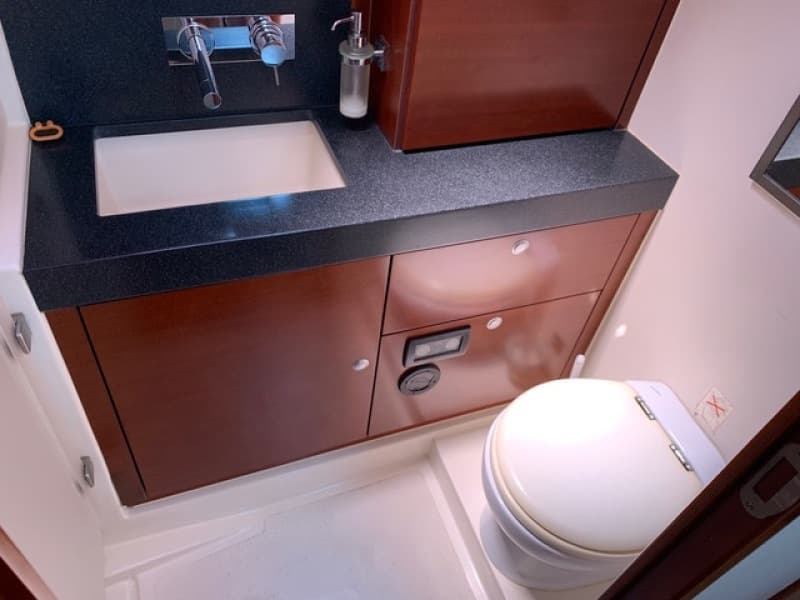

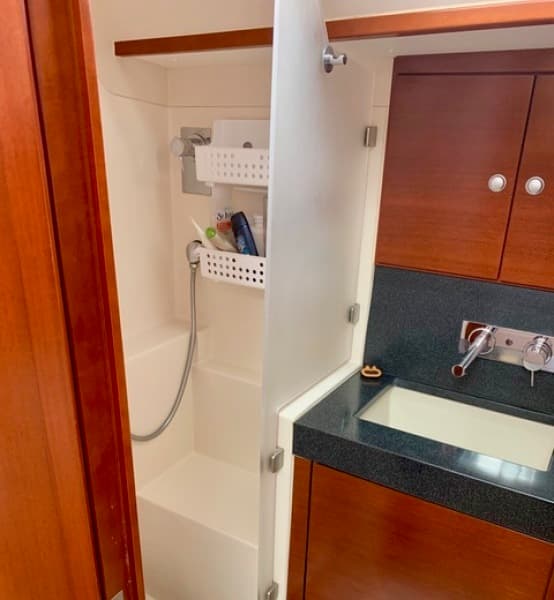

Head / Shower

• Large head with separate shower stall on port side
• Marine toilet
• New Shower pump (2017)
• Holding tank
• Sea and deck discharge
• Corian solid surface black quartz with sink
• Electrical drain pump
• Mirror
• Locker & shelves
• Opening hatch

Navigation Equipment

• B&G GPS System
• New B&G Zeus3 Chart Plotter (2017)
• New B&G 4G Radar Array (2017)
• B&G Forward Facing Scanner with Sonar HUB
• New B&G V20 VHF (2019)

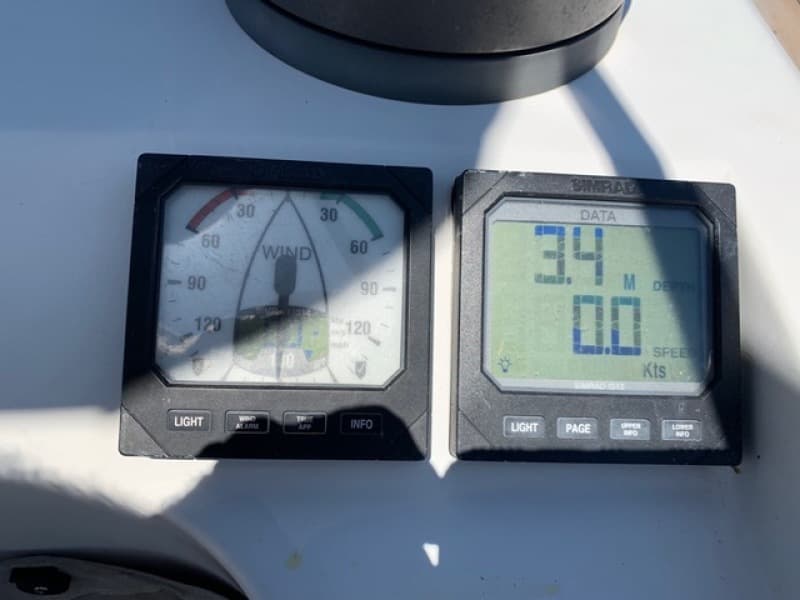

• Simrad IS 12 Log, Echo Sounder, Wind
• Simrad AP16 Autopilot
• Contest 130 Compass
• New WIFI Sniffer (2018)

Navigation lights

• Navigation lights on pulpit and pushpit
• Steaming light
• Anchor light

Navigation instruments

• Compass illuminated
• Speedometer and depth sounder on a combi display at each helm

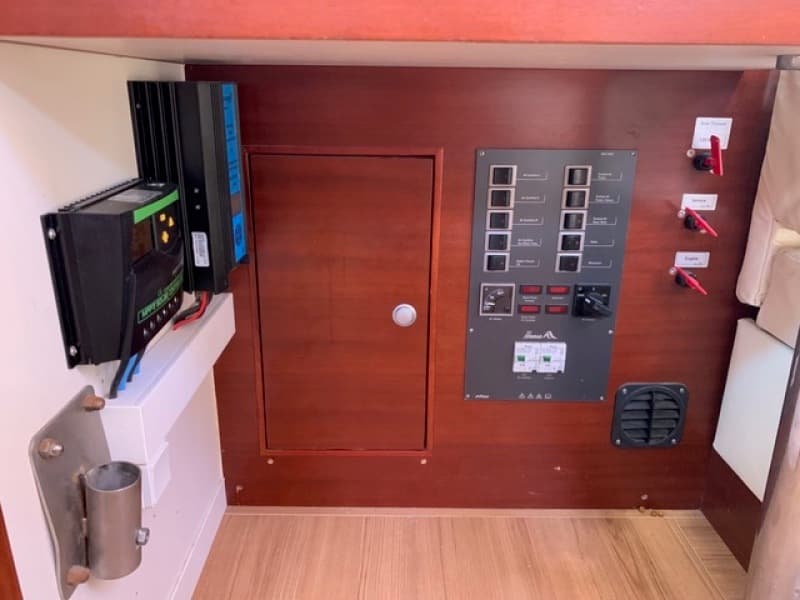

Electrical

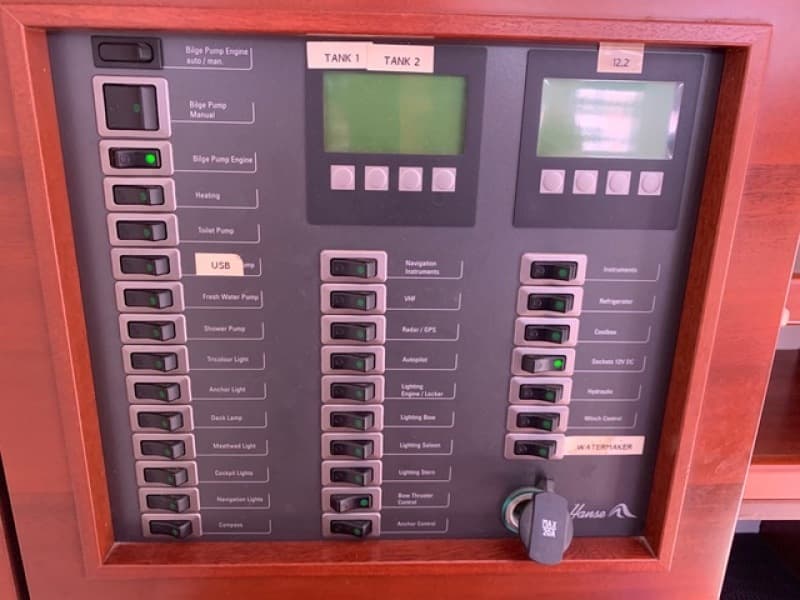

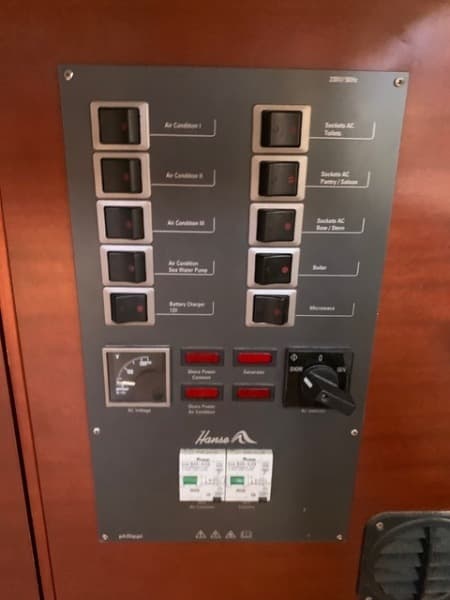

• 12 V and 110 V / 230 V Electrical Panels

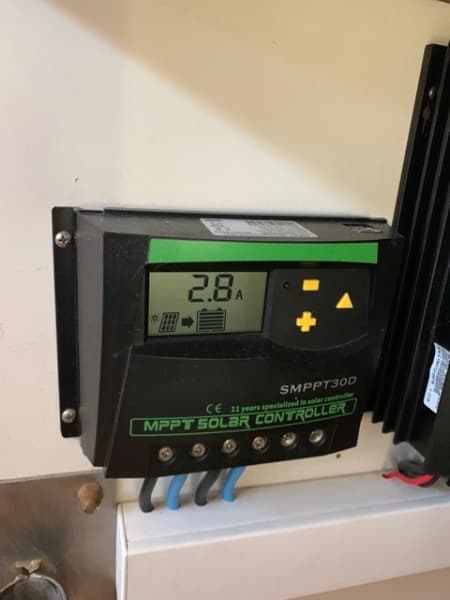

• 500 Watt Solar Panels (delivering 26AH on a sunny day)
• Silent Wind: Wind Generator
• New Honda i20 220V Gas Generator (quiet and efficient)
• New 220 Volt Inverter (2017)
• New Victron Powermeter (2018)

Batteries:

• Engine Battery 12V/95ah
• House Battery Bank Replaced (2017) 665ah Total
• Sterling Battery Booster (2017)
• Main battery switch
• Battery charger 12 V / 50 Amp.
• 110 V / 230 V shore power protected with differential breaker and distribution system
• Switches for all onboard electrics
• Voltmeter and battery controls

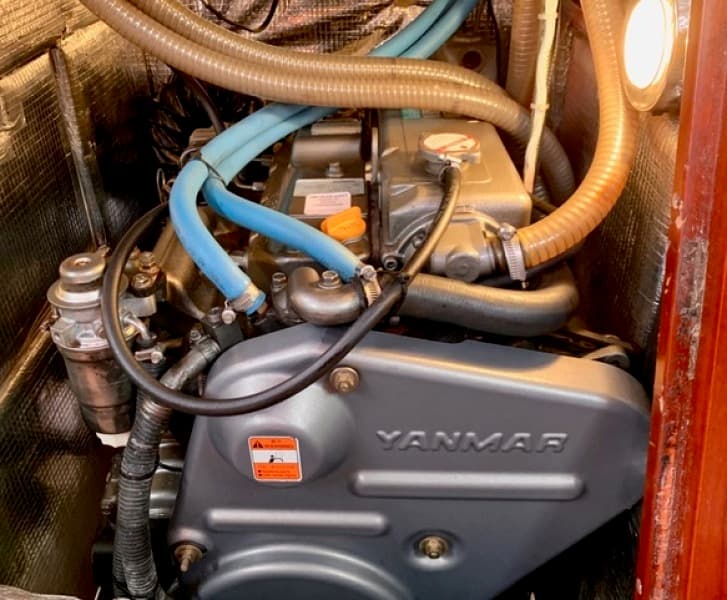

Engine and Machinery

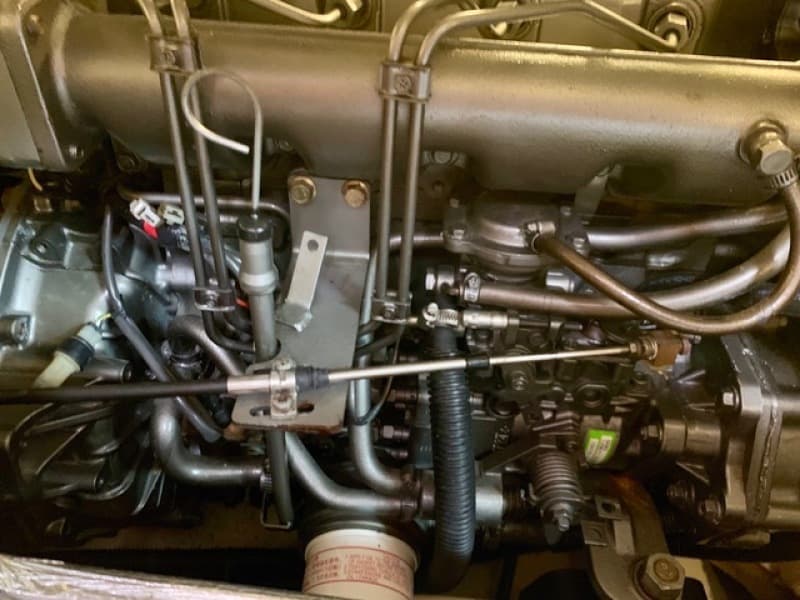

• Yanmar 4JH4, 55.9 kW / 75 HP, diesel engine with 1200 hours original
• Saildrive with Zinc Anode
• Gori 3 Blade Folding Propeller
• Saildrive serviced Annually
• Max Power VIP150 Bow Thruster

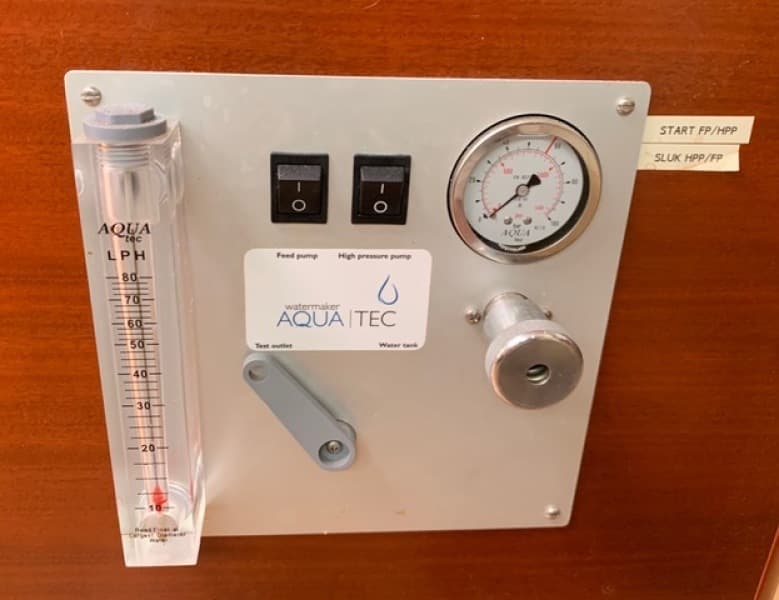

• Aqua Tec Water Maker
• 1 alternator 12 V / 60 Amp.
• 12 V / 95 Ah engine battery
• Stainless steel fuel tank, approx. 250 l
• Fuel infill on deck
• Seawater strainer
• Fuel filter / Water separator
• Revolution counter
• Engine hour meter
• Engine mechanical compartment sound insulated

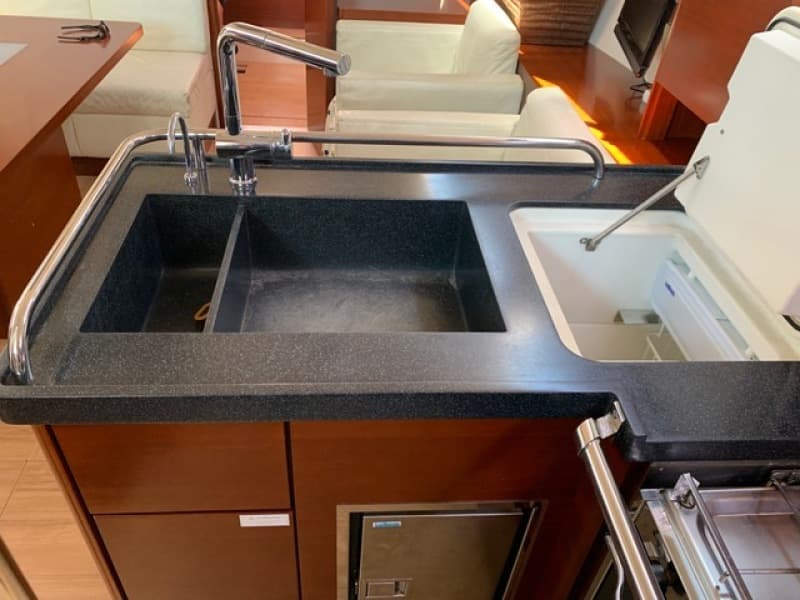

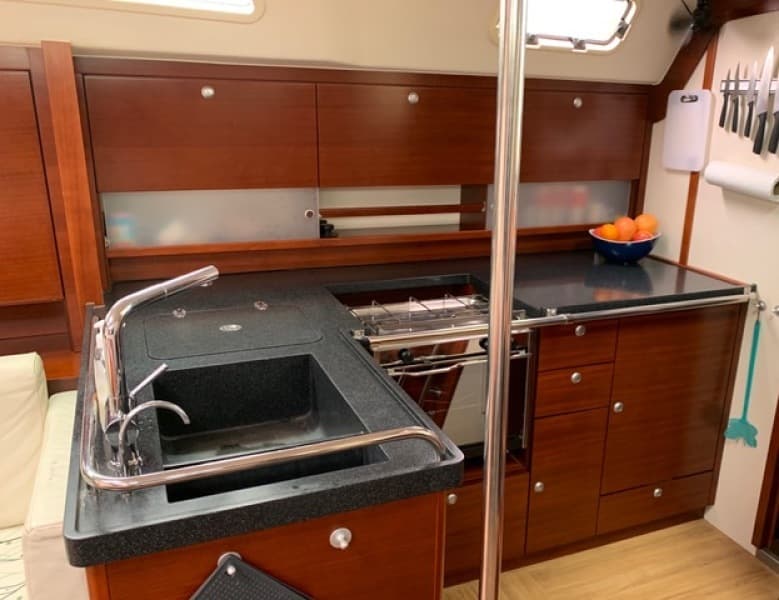

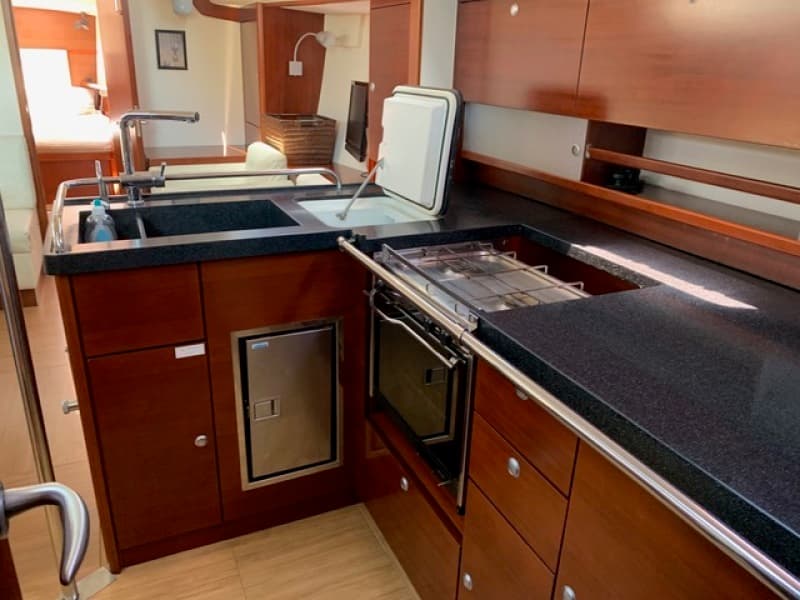

Galley

The Galley is located at the base of the companionway on the starboard side.

• Solid surface, Corian black quartz counter tops with integrated double sink
• Eno 2-burner LPG stove with oven, gimballed
• Gas system and self draining LPG bottle storage in cockpit

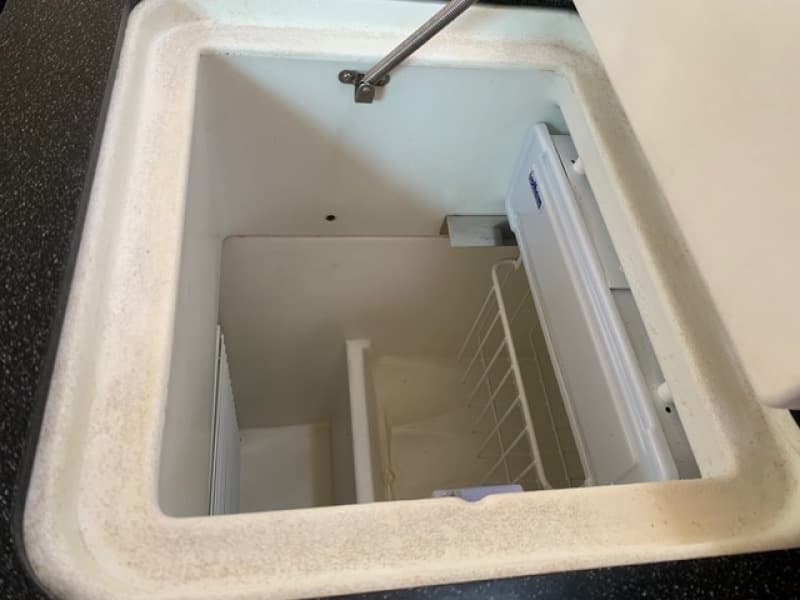

• Extra large 12v fridge of approx. 130 l, top and front loader with light
• New Fridge Compressor (2016)
• New Tap Water Filtration System (2019)
• Lockers and drawers
• Trash can

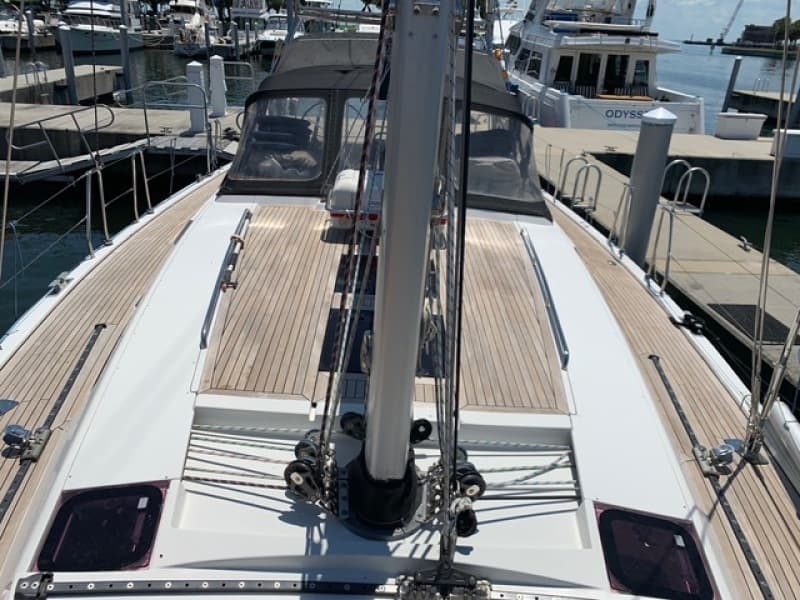

Deck and Hull

• Teak Decks are in excellent condition
• Hand laid sandwich construction, thermal and sound insulated

Deck Equipment

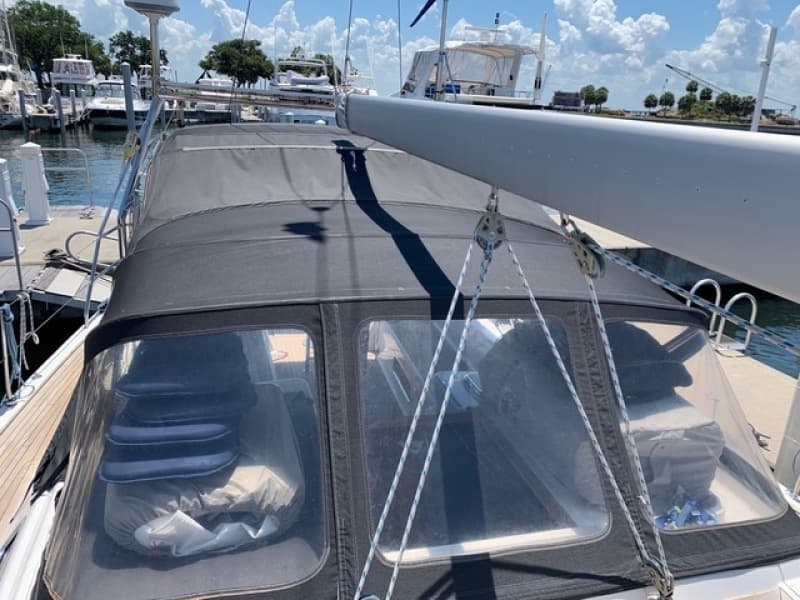

• New Bimini Top and Dodger (2015)
• Mosquito/ Sun Protection for Sides and Back (NEW 2019)
• Bow fitting with anchor roller
• Self-draining anchor locker with lockable hatch
• Electric windlass under deck
• Self-draining cockpit

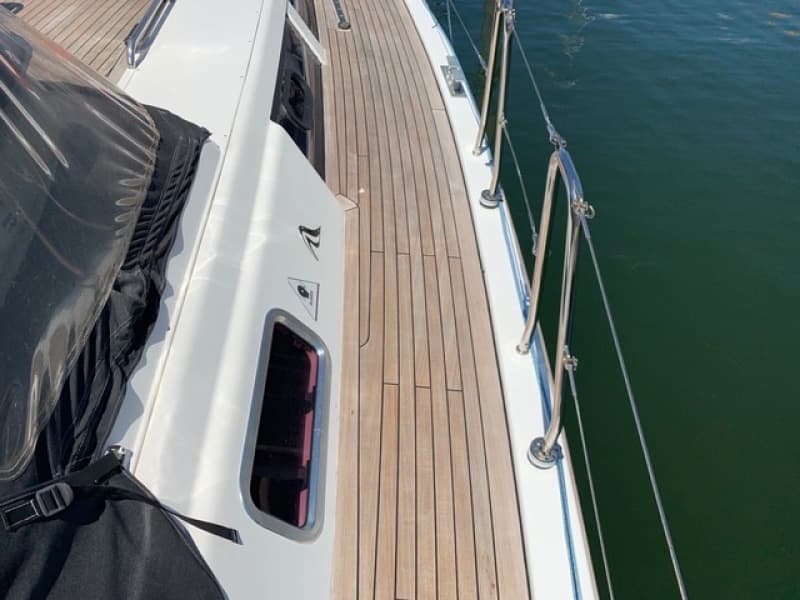

• Teak on side decks
• Teak on seats and cockpit floor
• Teak partly on coach roof

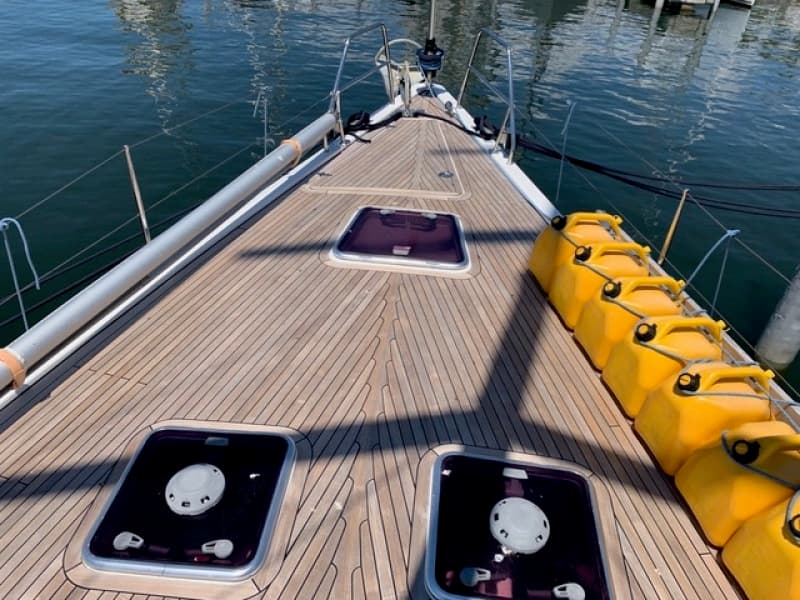

• 5 hatches
• 4 Flush hatches on the coach roof

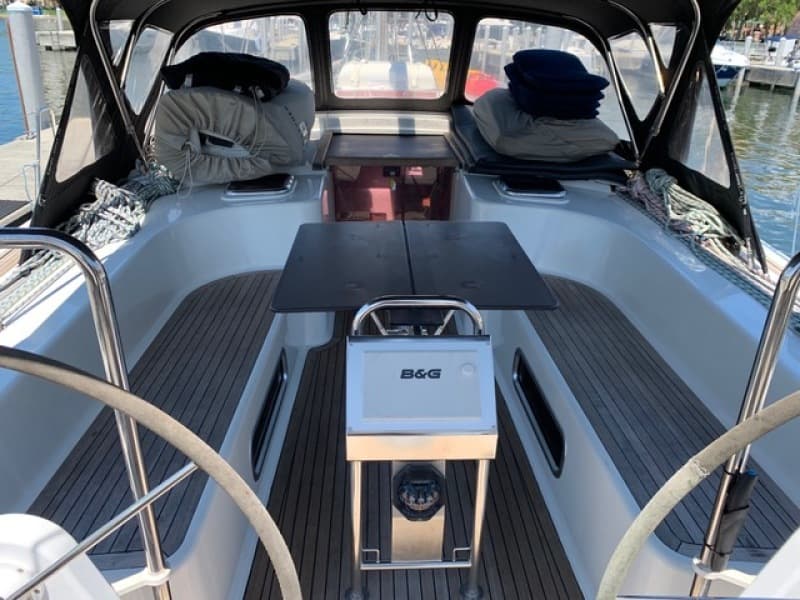

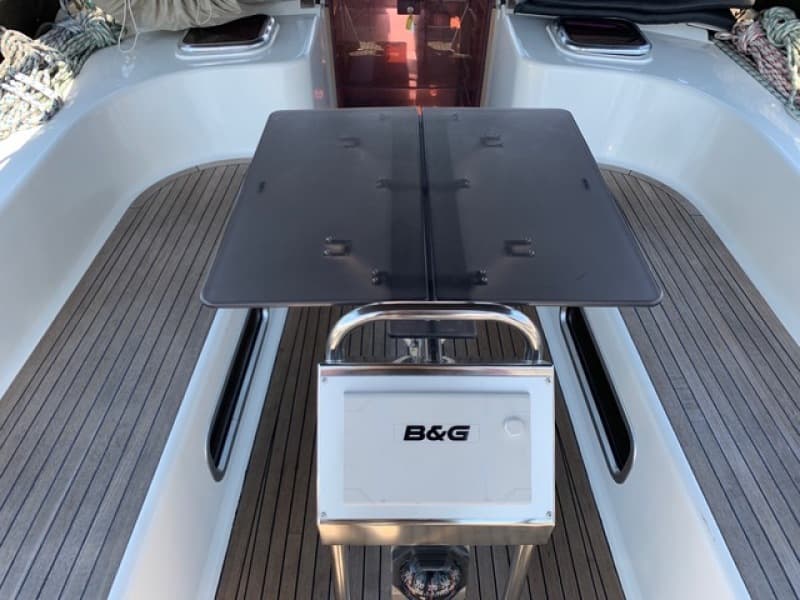

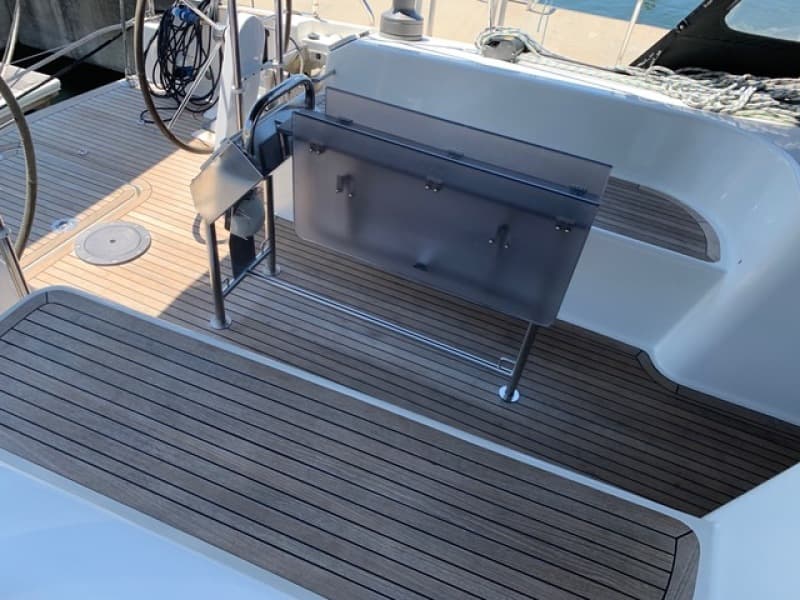

• Stainless steel and acrylic glass cockpit table with chart plotter bracket
• 6 retractable mooring cleats
• Hinged swimming platform
• Stainless steel swim ladder
• Self-draining cockpit

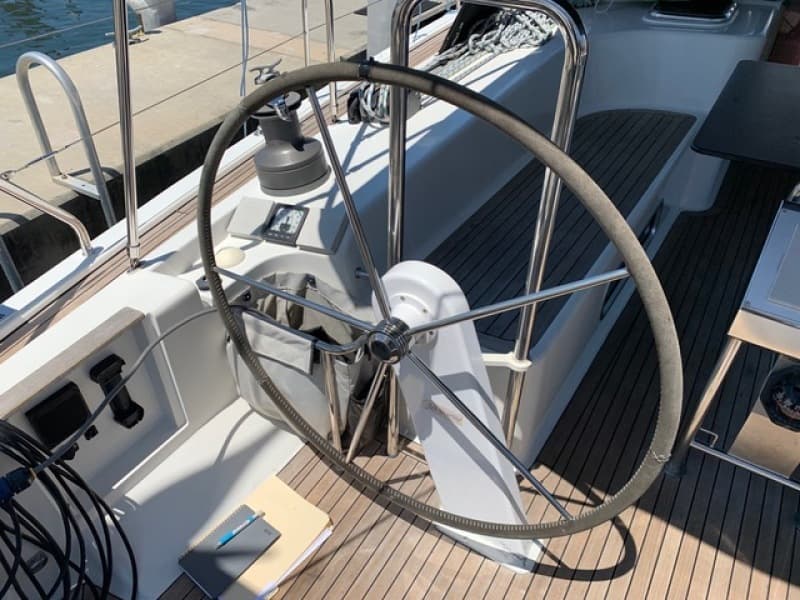

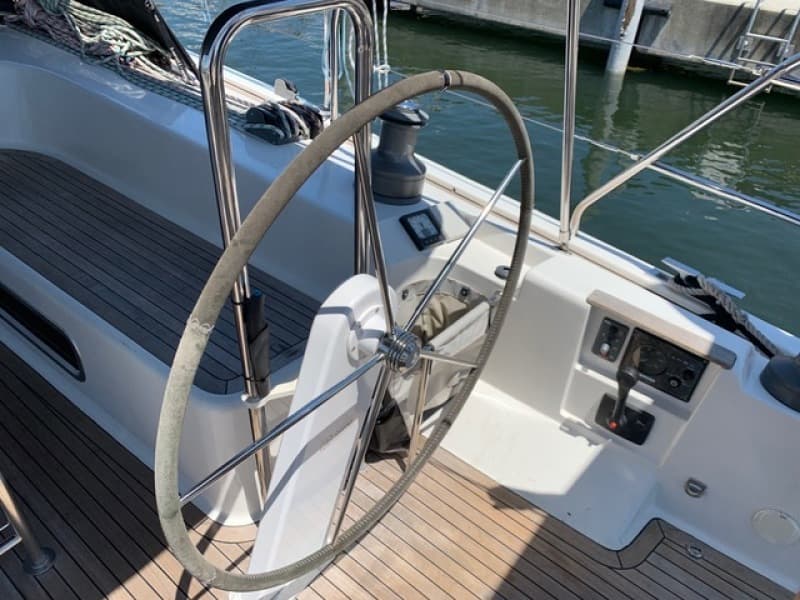

• Engine control at starboard helm stations
• Halyard storage boxes in the cockpit
• Storage for gas bottle, selfdraining
• Hot & cold shower on aft deck
• Genoa tracks with pinstop cars
• Mainsheet on coach roof
• 2 x 6 sheave deck organizers
• 12 deck jammers
• Opening portholes in cockpit
• Stainless steel pushpit with navigation light
• Stainless steel split pulpit with navigation lights
• Stainless steel stanchions tapered
• Rail gates on both sides

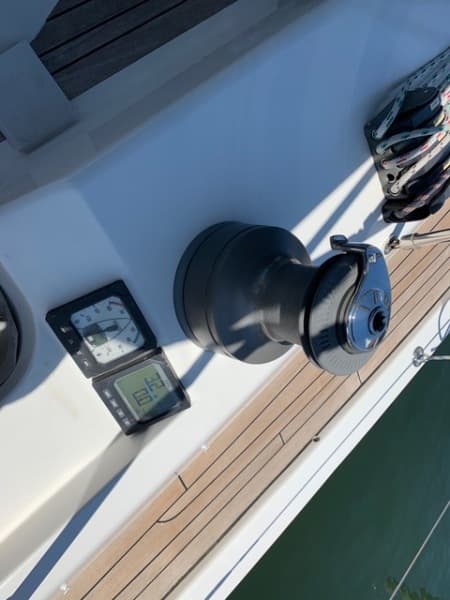

• 4 winches in cockpit: 1 electrical all purpose winch 54 AEST on starboard halyard position, 1 primary winch 54 AST, 2 secondary winches 46

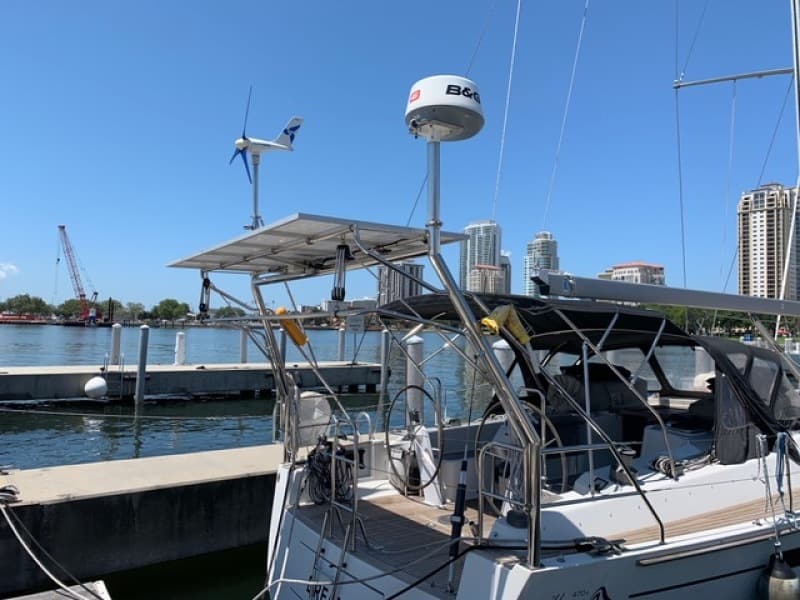

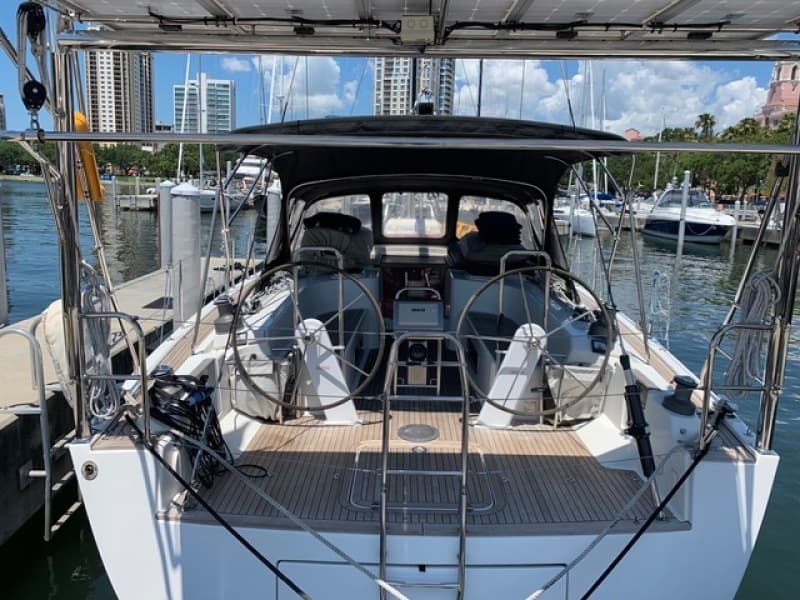

• Custom Stainless Steel Arch with Solar Panels and Wind Vane Integrated
• Dinghy Davits integrated into Arch
• Hull built with prepreg fiberglass fabrics and Corecell foam core set in epoxy, vacuum bagged and post cured
• White hull with blue double waterlines
• Waterline and cove line laid in the gelcoat
• Bulkheads laminated to hull and deck
• Lewmar Electric Anchor Windlass
• Reinforced Anchor Roller (2018)

Rig and Sails

• New Spartite Wedge around mast (2018)
• All Standing Rigging Scheduled to be replaced 5/19
• Doyle Mainsail fully battened (NEW 2018) 3 Reef Points
• Doyle Self-Tacking Jib (NEW 2018)
• Hydraulic Backstay Adjuster
• Two Electric Lewmar ST Sheet Winches

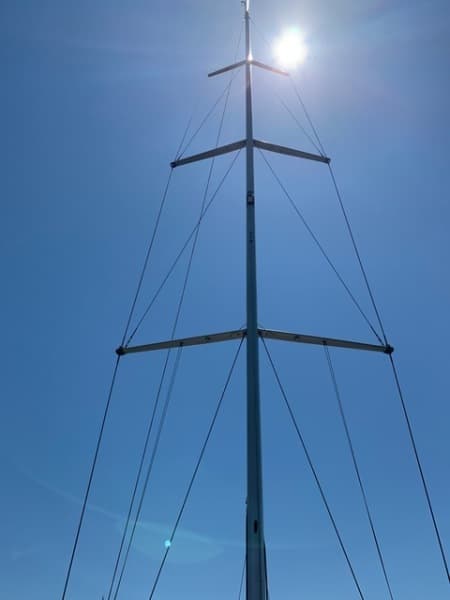

• Anodized Aluminum Mast with 3 Spreaders
• Furling system for jib
• Main halyard
• Jib halyard
• Ballslide system for mainsail
• Main Sheet
• Jib sheet
• New Reefing Lines (2018)
• Rod kicker
• Maindrop system with Lazy Jacks, colour: light-grey
• I : 65.58 ft
• J : 17.50 ft
• P : 65.58 ft
• E : 18.67 ft
• Working Sail Area : 1334.00 sq ft

Keel

• Standard composite iron / lead keel
• Option: medium draft keel: 2.30 m / 7´7
• Stainless steel keel bolts

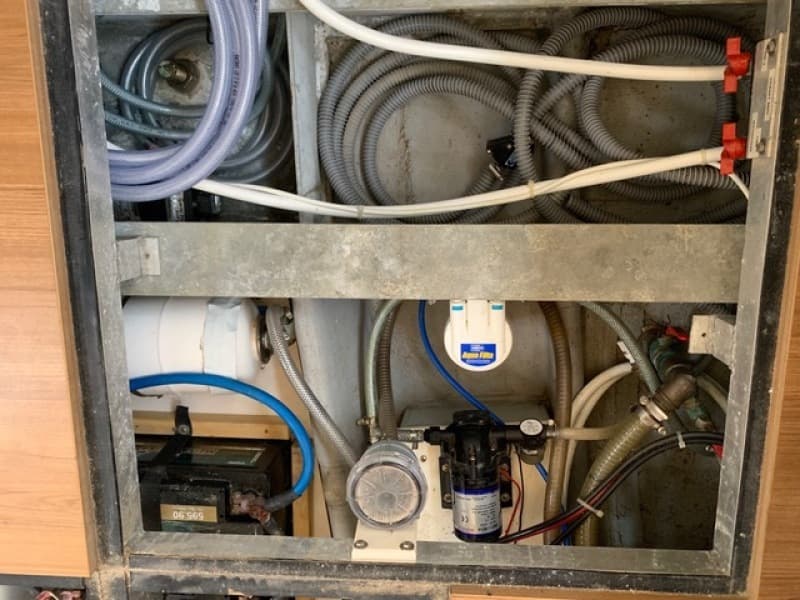

Plumbing System / Fresh Water

Tankage:

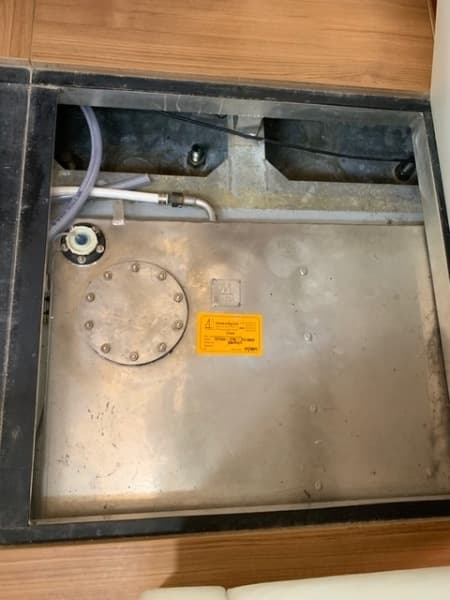

• Stainless steel fresh water, capacity approx. 380 liters/100 gallons
• Water infill on deck
• Water heater, running from engine and immersion heater 110 V / 230 V

Safety

• New MOB Buoy and Safety Line (2018)

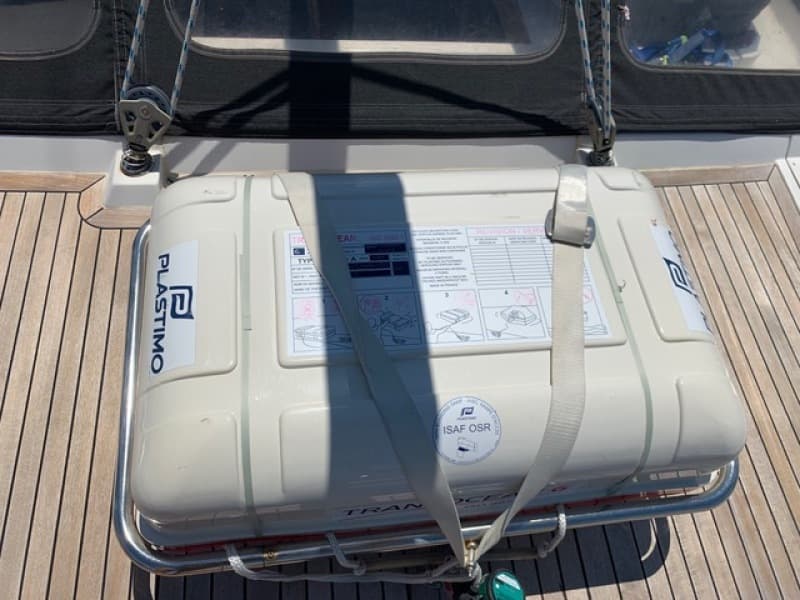

• New Life Raft (2017)
