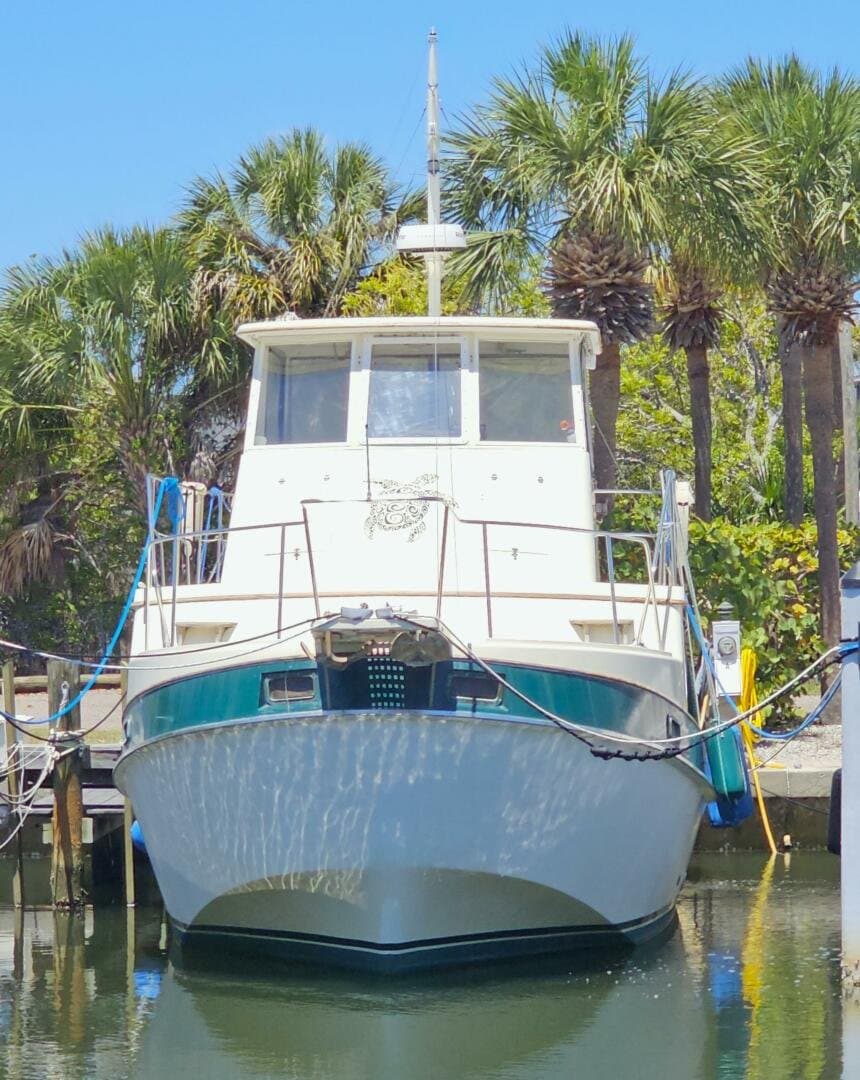

1984 Kadey-Krogen

Kadey Krogen Manatee, 1984

St. Petersburg, FL

BROKER"S NOTE

Be certain to view the 3D Virtual Tour of this vessel

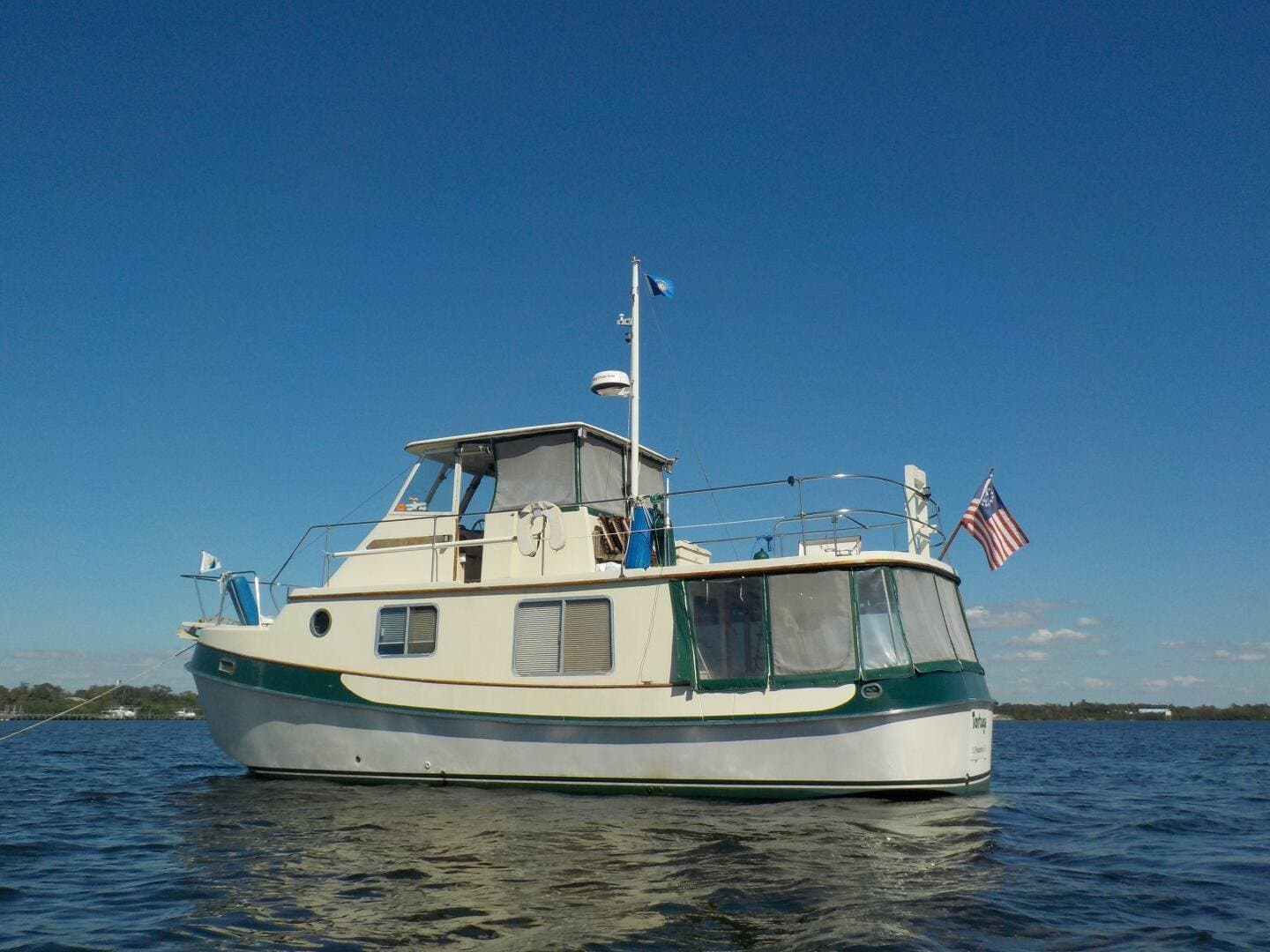

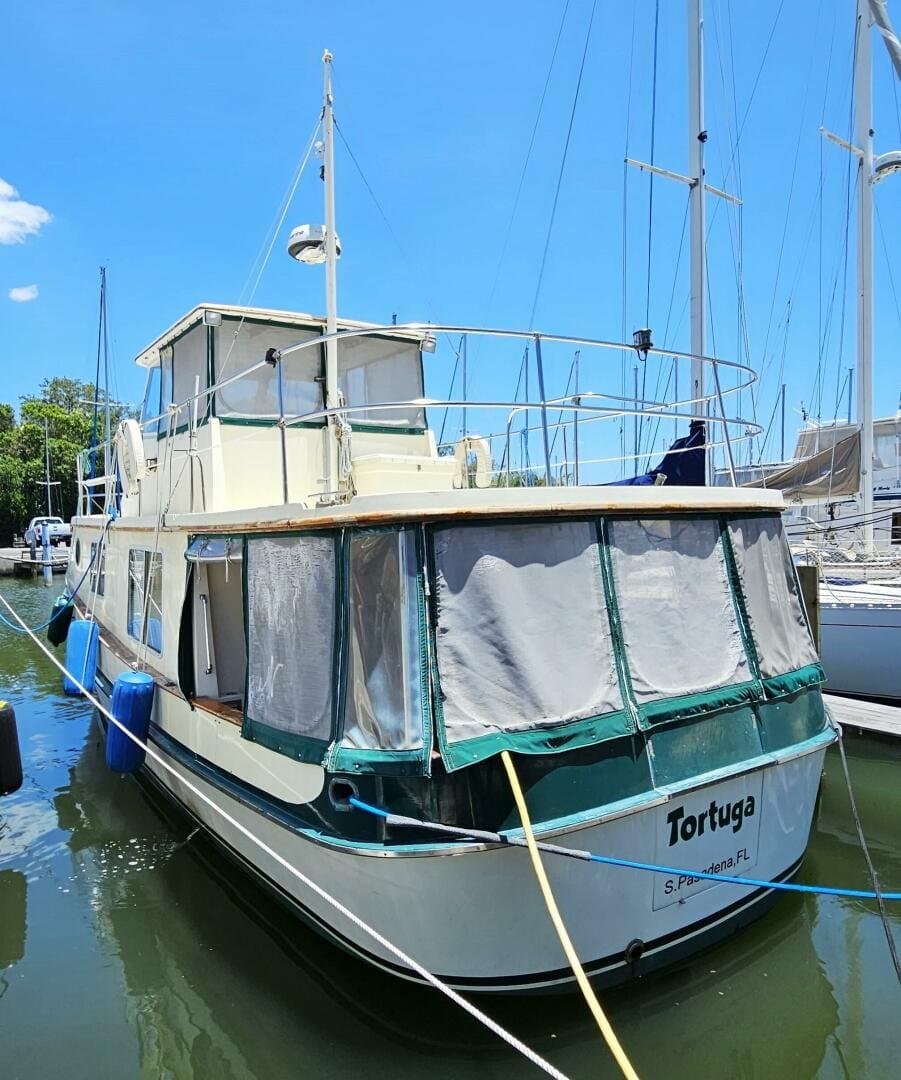

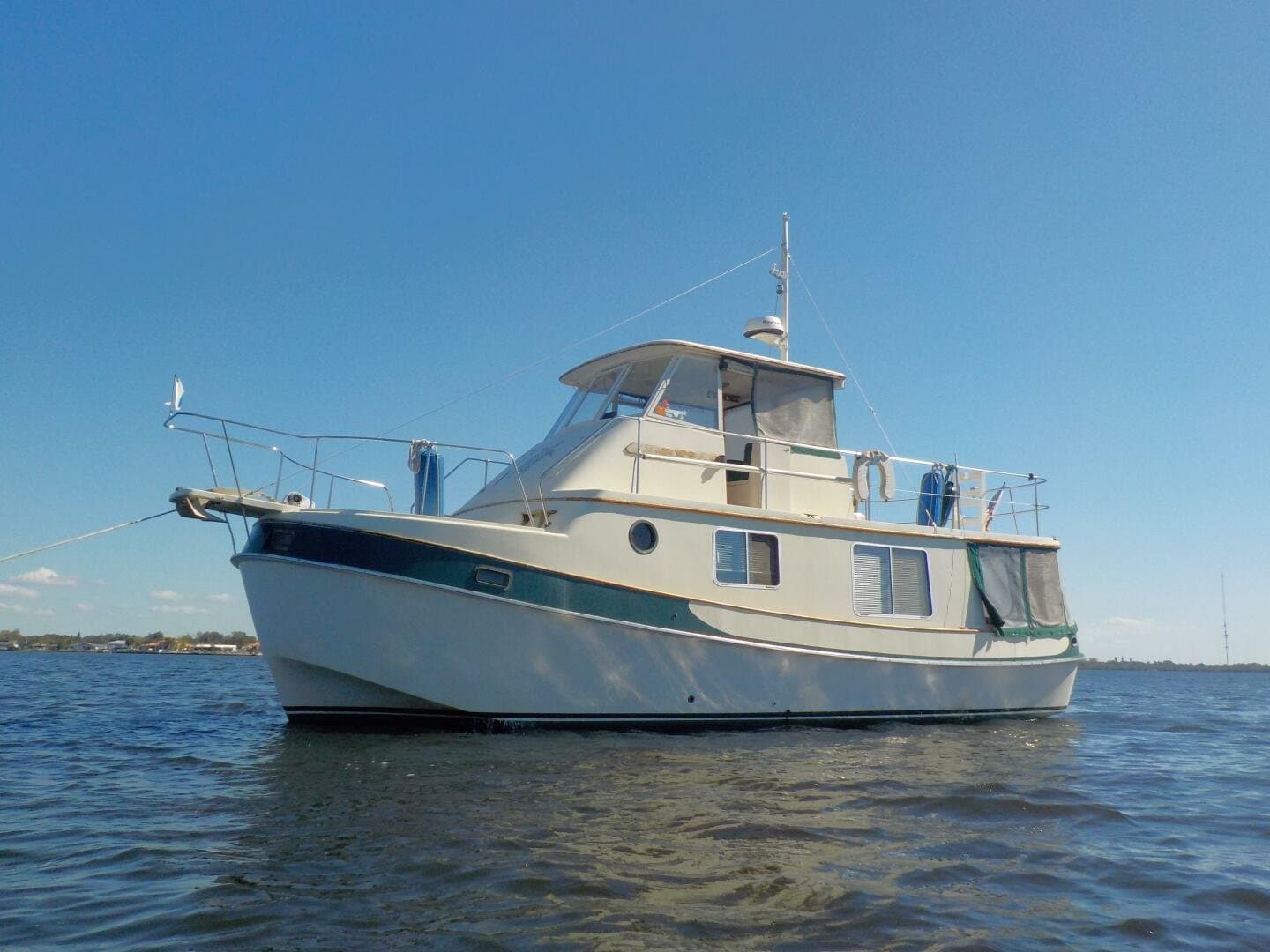

The Kadey-Krogen 36 Manatee is a trawler-style yacht designed and is a beloved model among trawler enthusiasts, valued for its quality construction, comfortable cruising, and timeless design. Her accommodations in only 36' rivals that of a boat 5 or 6 feet larger. With a single diesel engine and bow thruster, she is easy to maneuver and economical to run. Carrying 280 gallons of fuel and 300 gallons of water, she is capable of cruising extensive distance in comfort and safety.

This boat went through an extensive refurbishment, overseen by a knowledgeable owner who ran a boat yard and live aboard her for several years. She will be an excellent "Looper Boat" or live aboard.

Here's a brief history of the Kadey-Krogen 36 Manatee:

• Introduction: The Kadey-Krogen 36 Manatee was introduced in the early 1980s as a smaller sibling to the highly successful Kadey-Krogen 42 trawler. The company aimed to create a more compact yacht that retained the seaworthiness and comfort of its larger counterpart.
• Design: The Manatee's design was focused on providing comfortable long-range cruising capabilities, with an emphasis on fuel efficiency and a sturdy hull. The yacht featured a full-displacement hull shape, a raised pilothouse, and a spacious interior layout that maximized livable space.
• Construction: Kadey-Krogen Yachts constructed the Manatee using high-quality materials and craftsmanship. The hull was typically built using solid fiberglass, ensuring durability and strength. The yacht's construction quality and attention to detail contributed to its reputation as a reliable and well-built vessel.
• Dimensions and Specifications: The Kadey-Krogen 36 Manatee measures approximately 36 feet in length overall (LOA) and has a beam of around 13 feet. It has a displacement of around 26,000 pounds, allowing for a comfortable ride even in challenging sea conditions. The Manatee is equipped with a single diesel engine, typically ranging from 80 to 120 horsepower, which provides efficient cruising speeds.
• Interior Layout: Despite its size, the Kadey-Krogen 36 Manatee offered a spacious and well-designed interior. The main deck typically featured a salon, a galley, and a pilothouse. Below deck, there was a forward stateroom, a head (bathroom), and additional sleeping accommodations in the salon. The yacht's interior was known for its high-quality teak woodwork and cozy atmosphere.
• Popularity and Legacy: The Kadey-Krogen 36 Manatee gained popularity among boating enthusiasts who sought a smaller trawler-style yacht without sacrificing comfort or seaworthiness. Its reputation for solid construction and excellent cruising capabilities made it a sought-after vessel for long-distance cruisers and liveaboard boaters.
• Production and Availability: Kadey-Krogen Yachts built the Manatee for over a decade, from the early 1980s until the mid-1990s. During that time, they produced a limited number of these yachts. As the years went by, used Kadey-Krogen 36 Manatees became available on the market, allowing boaters to acquire these well-regarded vessels.

Many recent upfits including...

•      Engine – Volvo Penta TAMD31L-A - 138 hp, Turbo, 4 cylinder – Engine hours 237 as of 05/24/23 - Rebuilt 2018.  Rebuilt fuel pump and injectors (November 2021)

•      Hydraulic Steering – Seastar Capilano Helm unit and cylinder installed new (September 2021)

•      Bottom painted January 2021 w/ Seahawk Biocop-TF

•      Prop reconditioned (February 2021)

•      Shaft, cutlass bearing, stuffing box installed new (February 2021)

•      4 burner Force 10 oven/stove installed new (May 2021)

•      Vacuflush VG12 – Complete recondition (all seals, duck bill valves, clamps) and new pressure switch (October 2021). Toilet recondition; complete bowl/base kit (October 2022).

•      San-X Sanitation Hose installed new  ( February 2021)

•      Engine Start Battery installed new – 1 - AGM Group 24  ( October 2022)

•      Gen Start Battery installed new – 1 - AGM Group 24 ( May 2022)

•      Galvanic Isolator installed new - PCO Safe Galvanic Isolator ( March 2022)

•      House, windlass and bow thruster batteries installed new – ( February 2021)

•      Air conditioning (one of two installed) installed new - Dometic DTG8 115V 50/60HZ 410A , 8,000 BTU - Turbo w/ air sensor DTG8-1171 205160089 ( August 2021)

And much more!

DIMENSIONS

•      Length - 36.33 ft

•      Max Draft – 3.17 ft

•      Beam – 13.67 ft

•      Length at Waterline – 34 ft.

ENGINE

•      Brand: Volvo Penta

•      Rebuilt 2018

•      TAMD31L-A - 138 hp, Turbo, 4 cylinder

•      Hours: 237 as of 05/24/23

•      Type: Inboard, Diesel

•      Injector pump and injectors rebuilt (November 2021)

TANKS

•      Fresh Water – 2 @ 150 gal ea. Total 300 gallons

•      Fuel – 1 @ 280 gallons

•      Holding Tank – 1 @ 30 gallons

SPEED & DISTANCE

•      Cruising speed 7 knots

•      Max Speed – 8 knots

ACCOMMODATIONS

•      Cabin w/Queen center line bed – 1

•      Heads with separate shower stall – 1

•      Salon

•      Galley

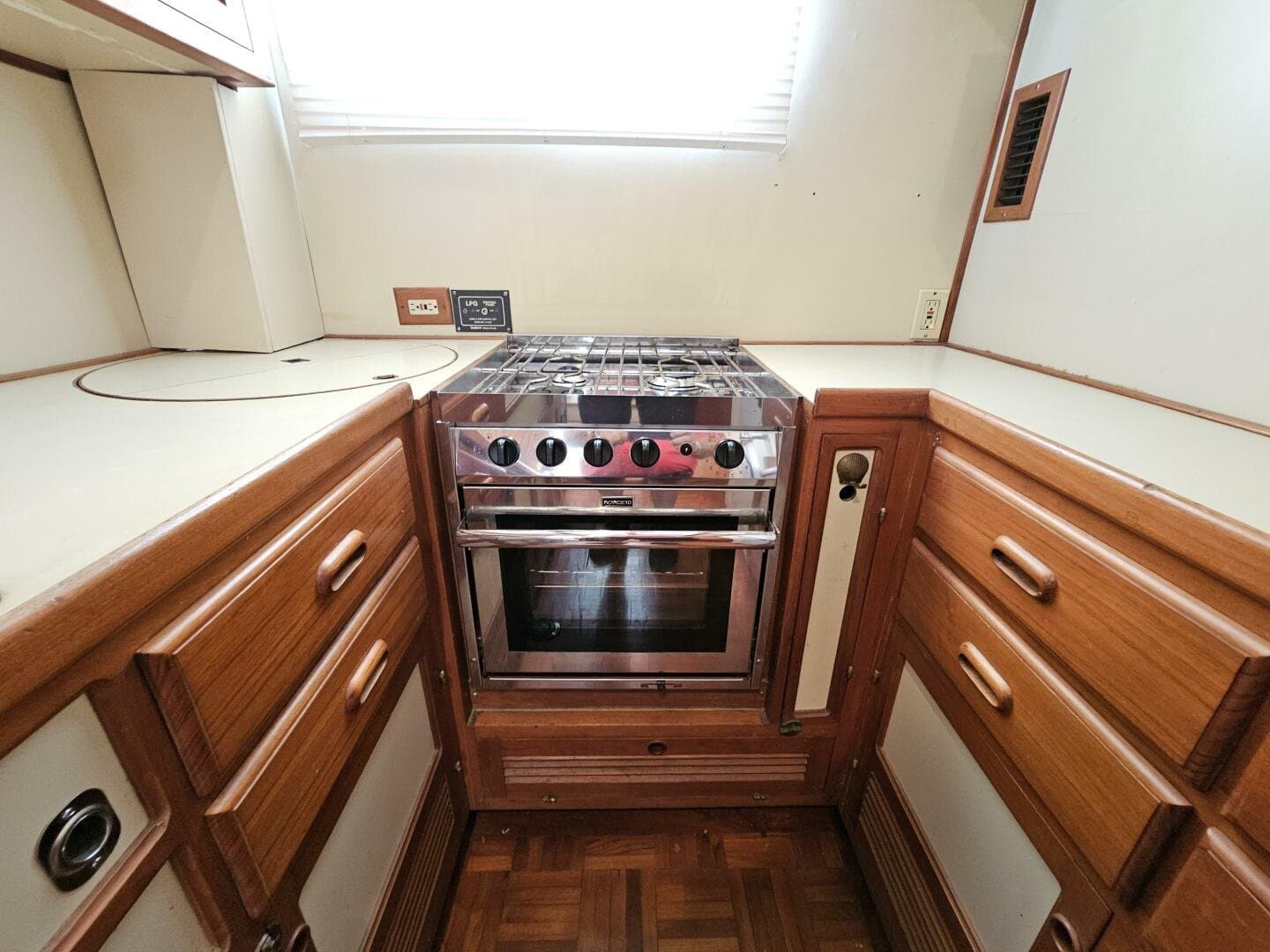

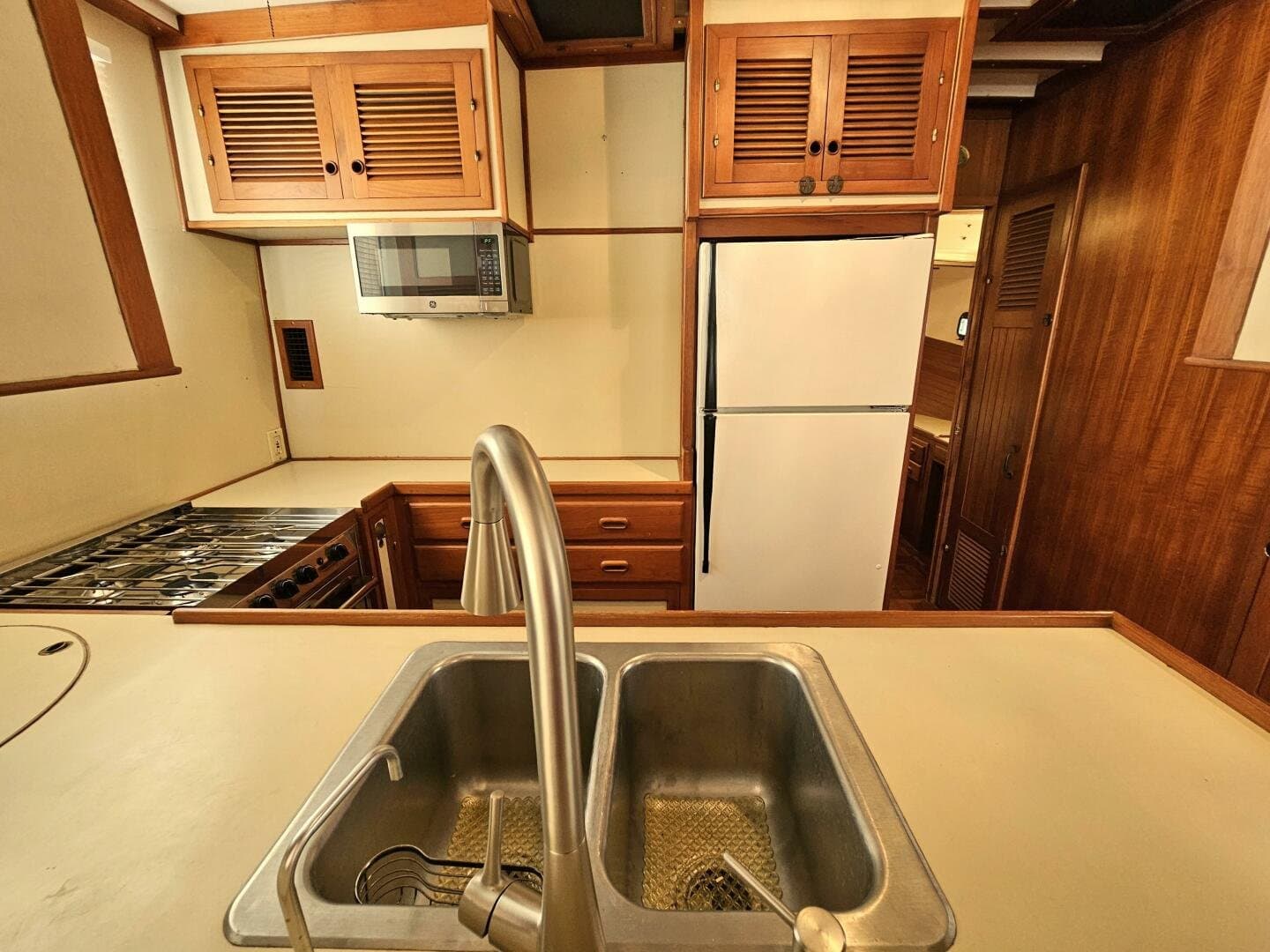

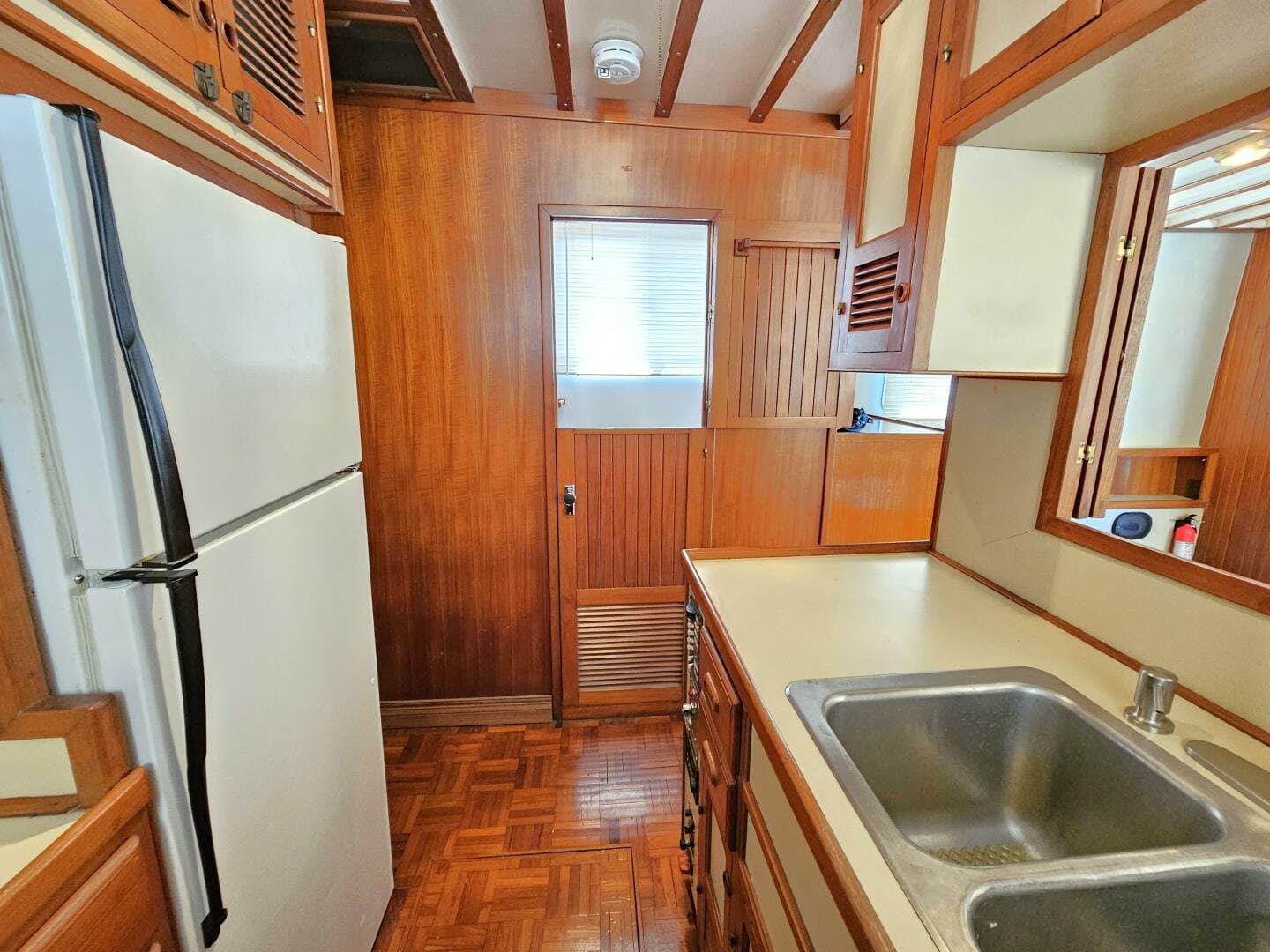

GALLEY

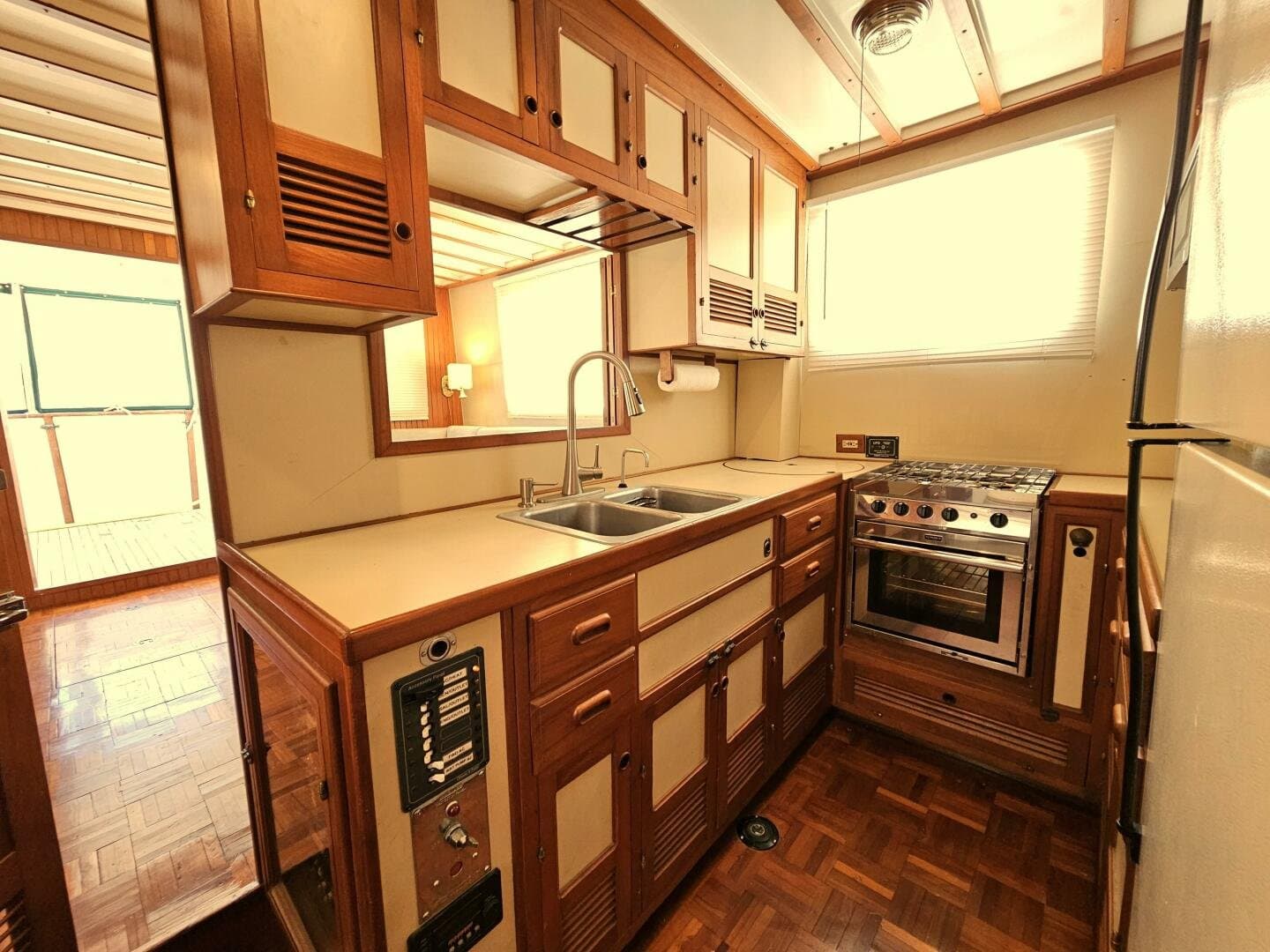

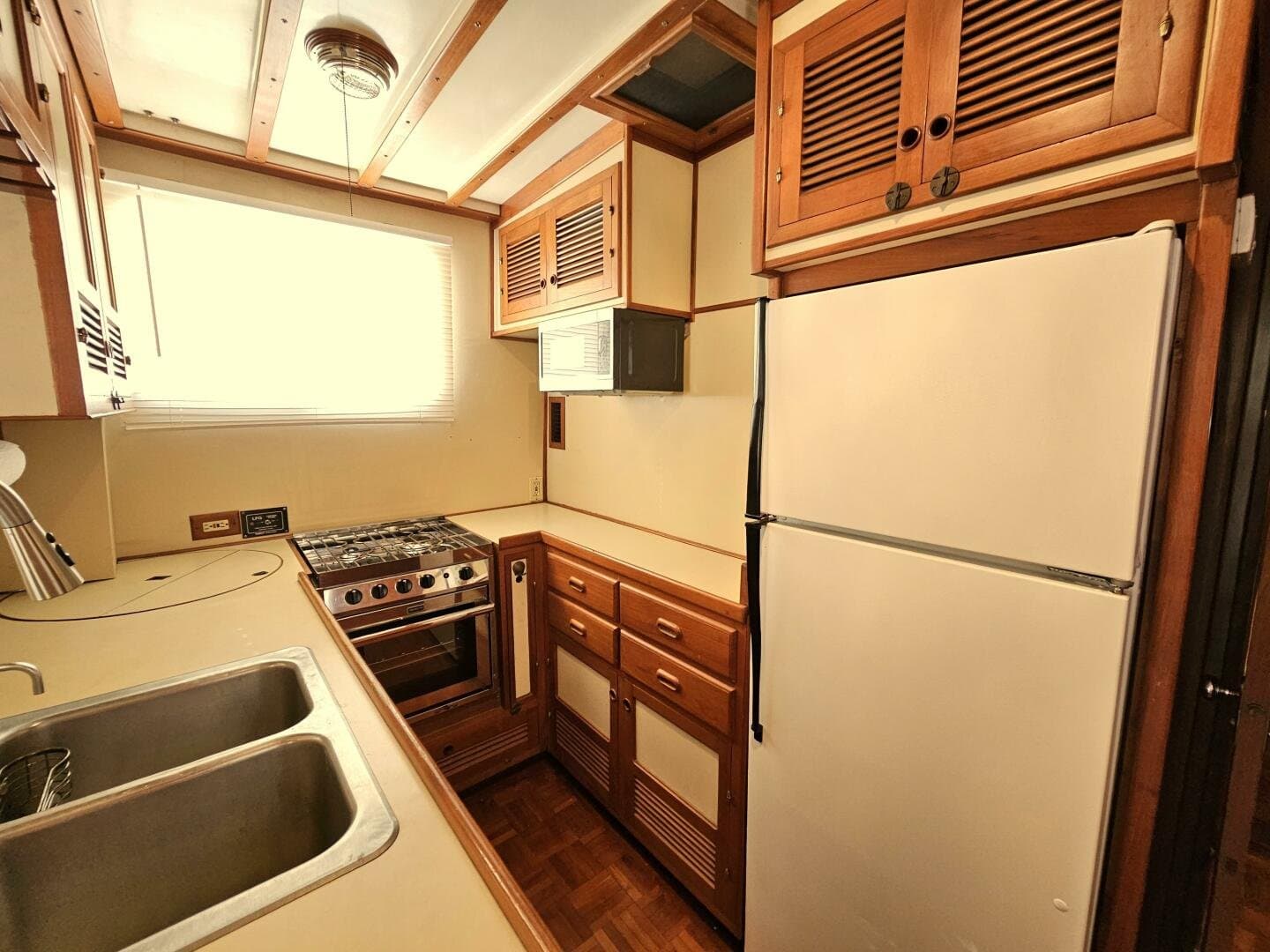

The U-shaped galley is located on the port side, forward of the saloon. It is very large and has an exceptional amount of cupboard, drawer and locker storage. In addition there is a teak louvered pass through to saloon. Deep double stainless steel sinks with new upgraded faucet with pullout nozzle. It features:

•    4 burner Force 10 oven/stove. Model 1988146 installed new. ( May 2021)

•    GE Microwave – 700 watt model JEM3072SH2SS. Under cabinet moun installed new t. ( September 2021)

•    Roper Refrigerator (14 cu. ft.) /Freezer (6 cu. ft) Model - RT12DKXEW00

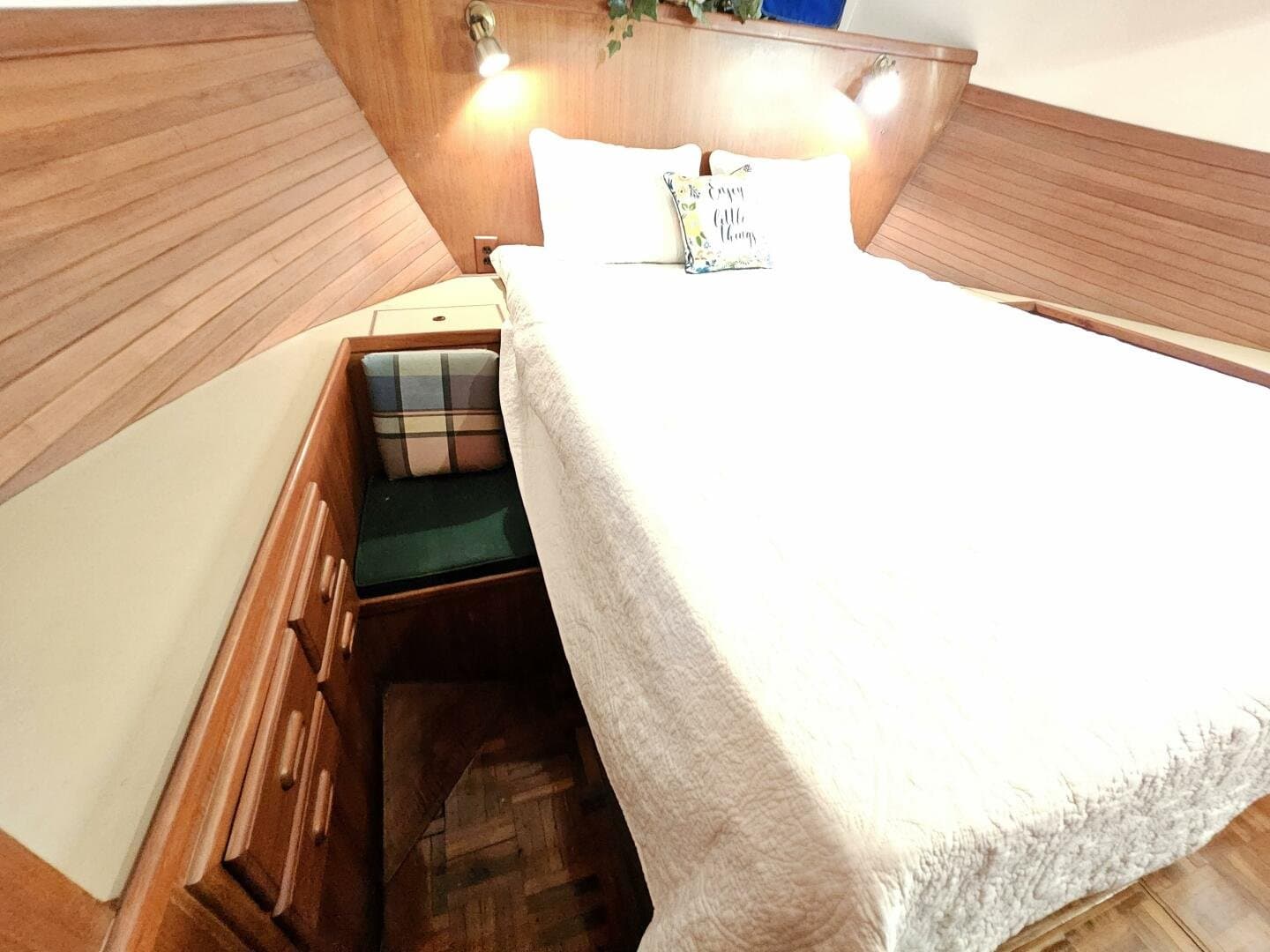

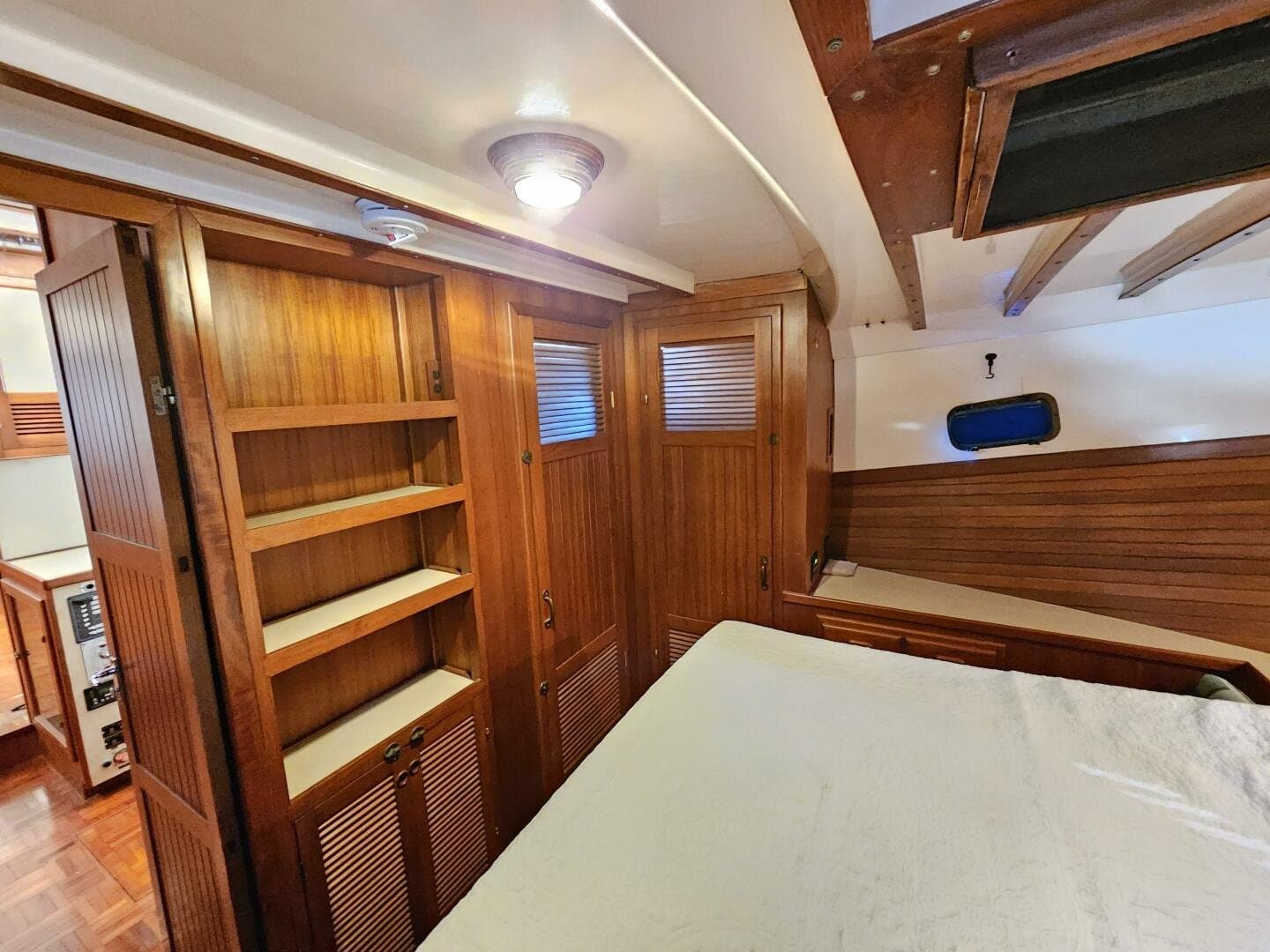

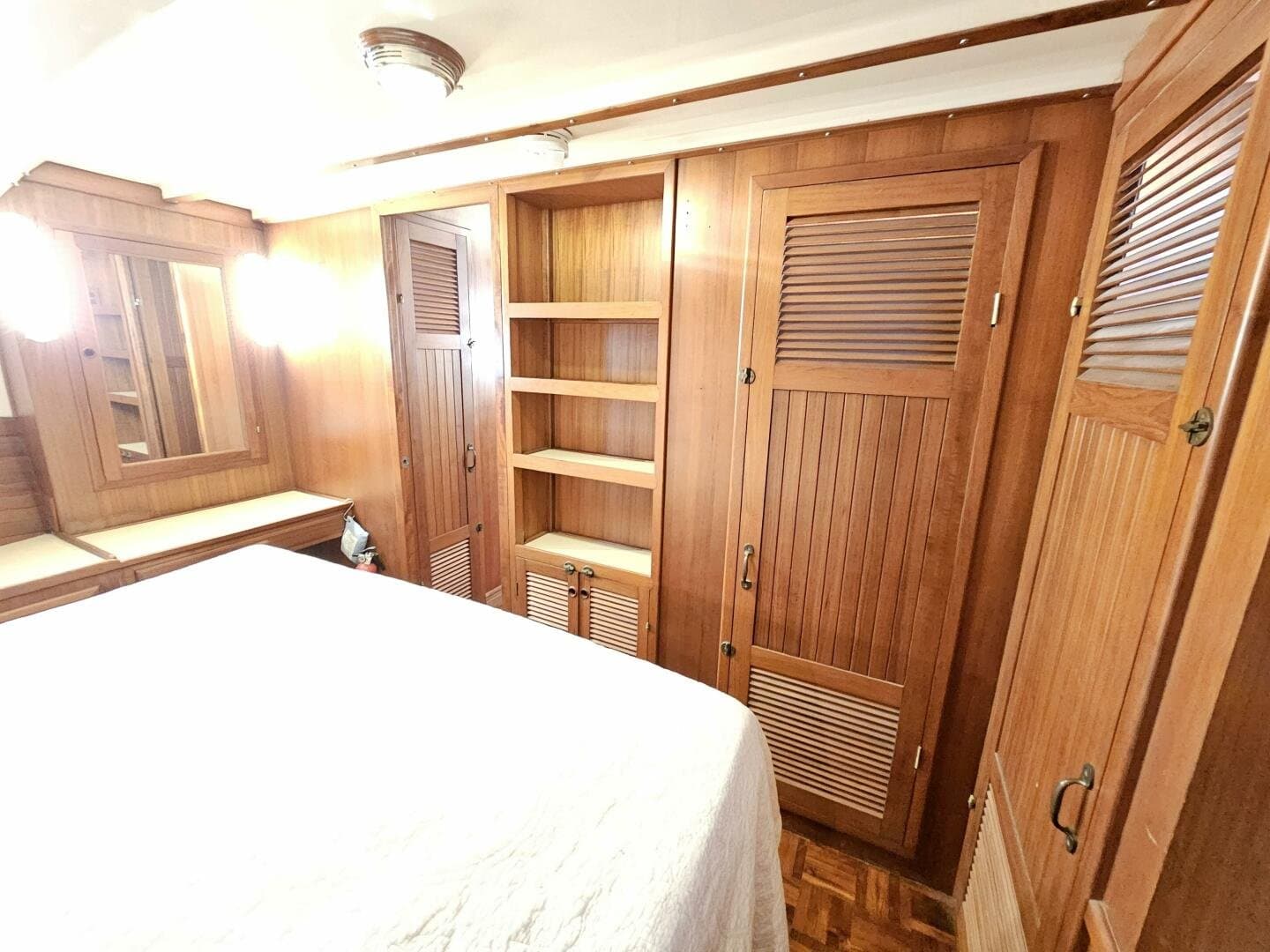

MASTER STATEROOM

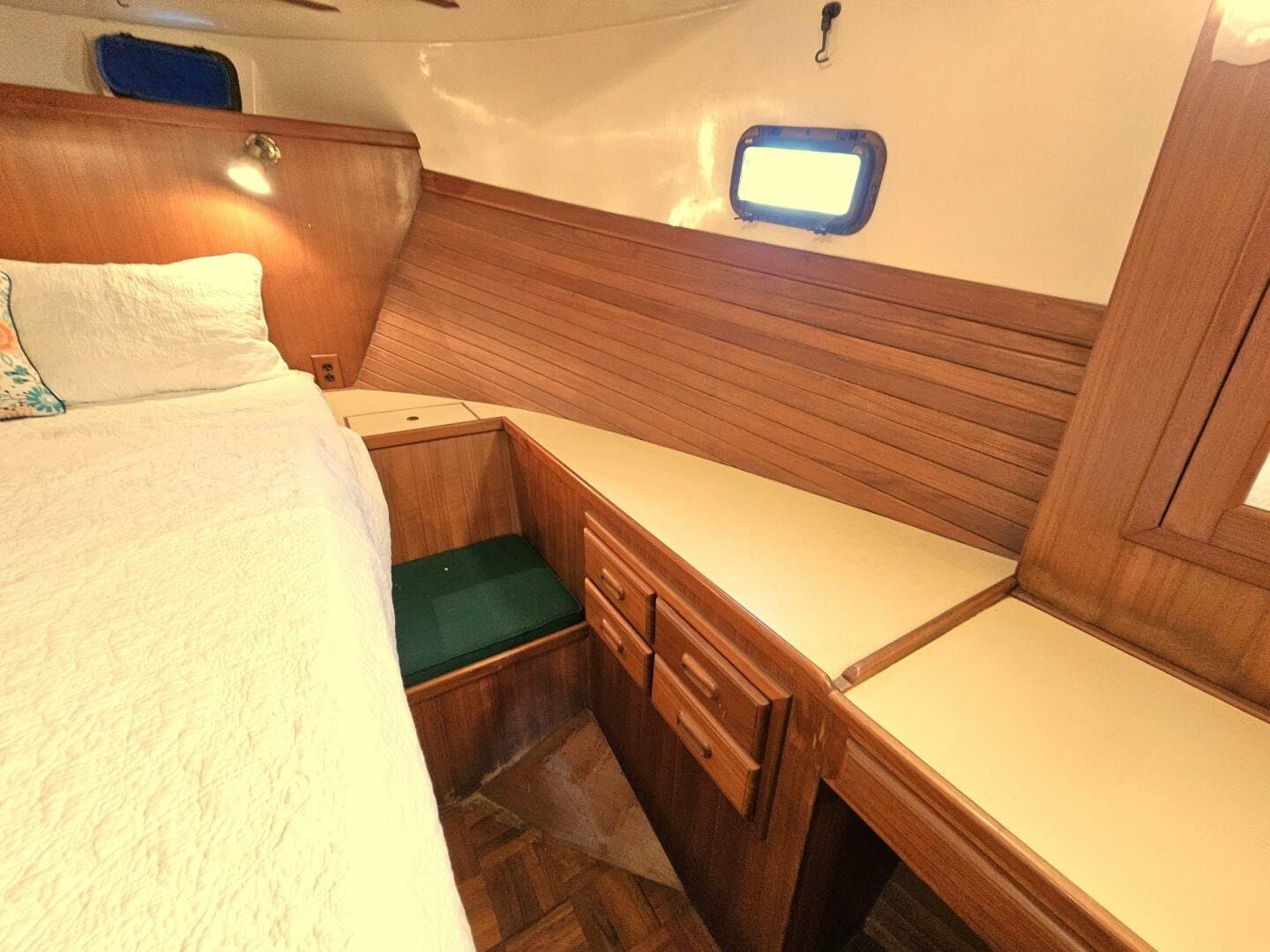

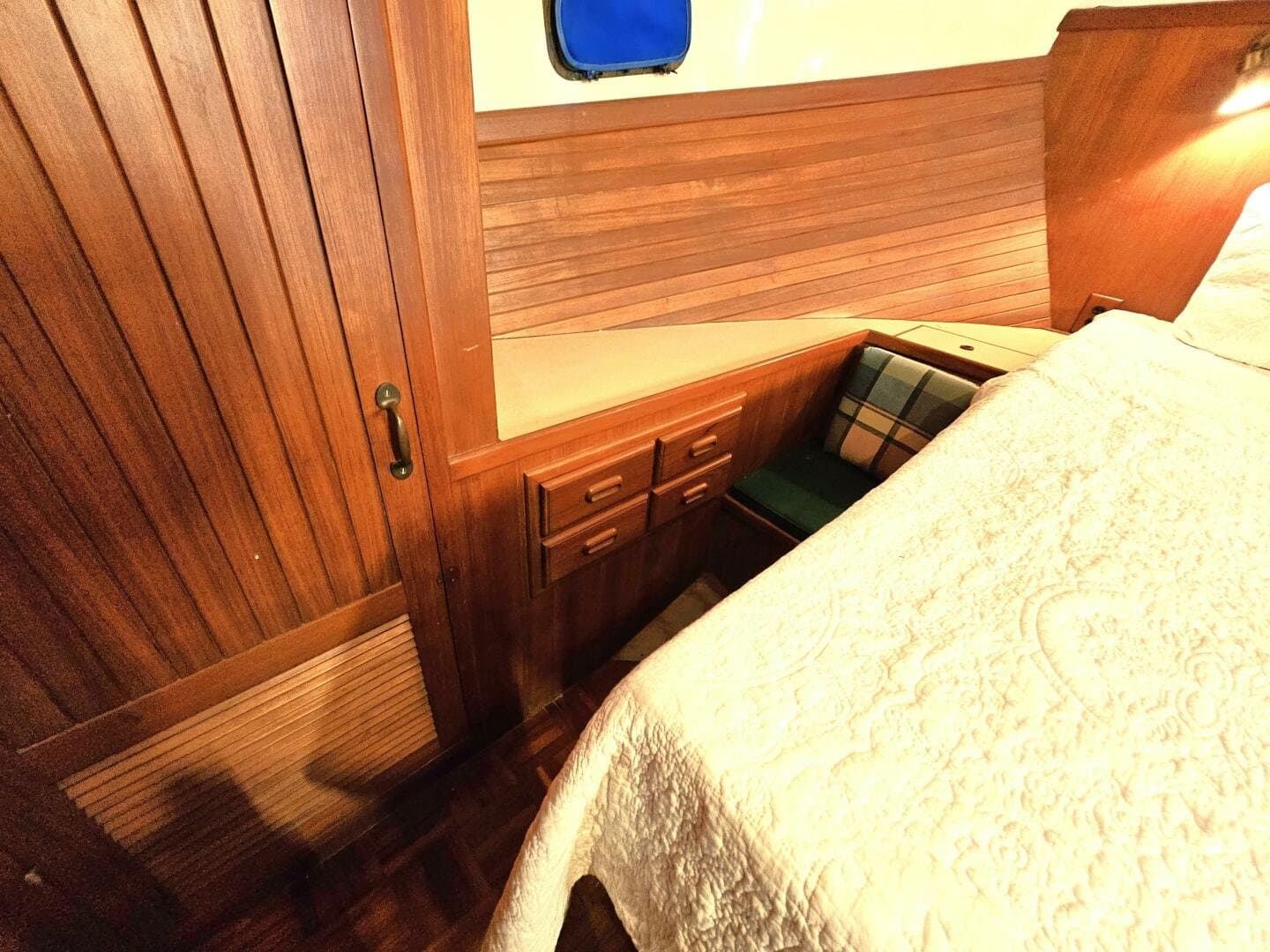

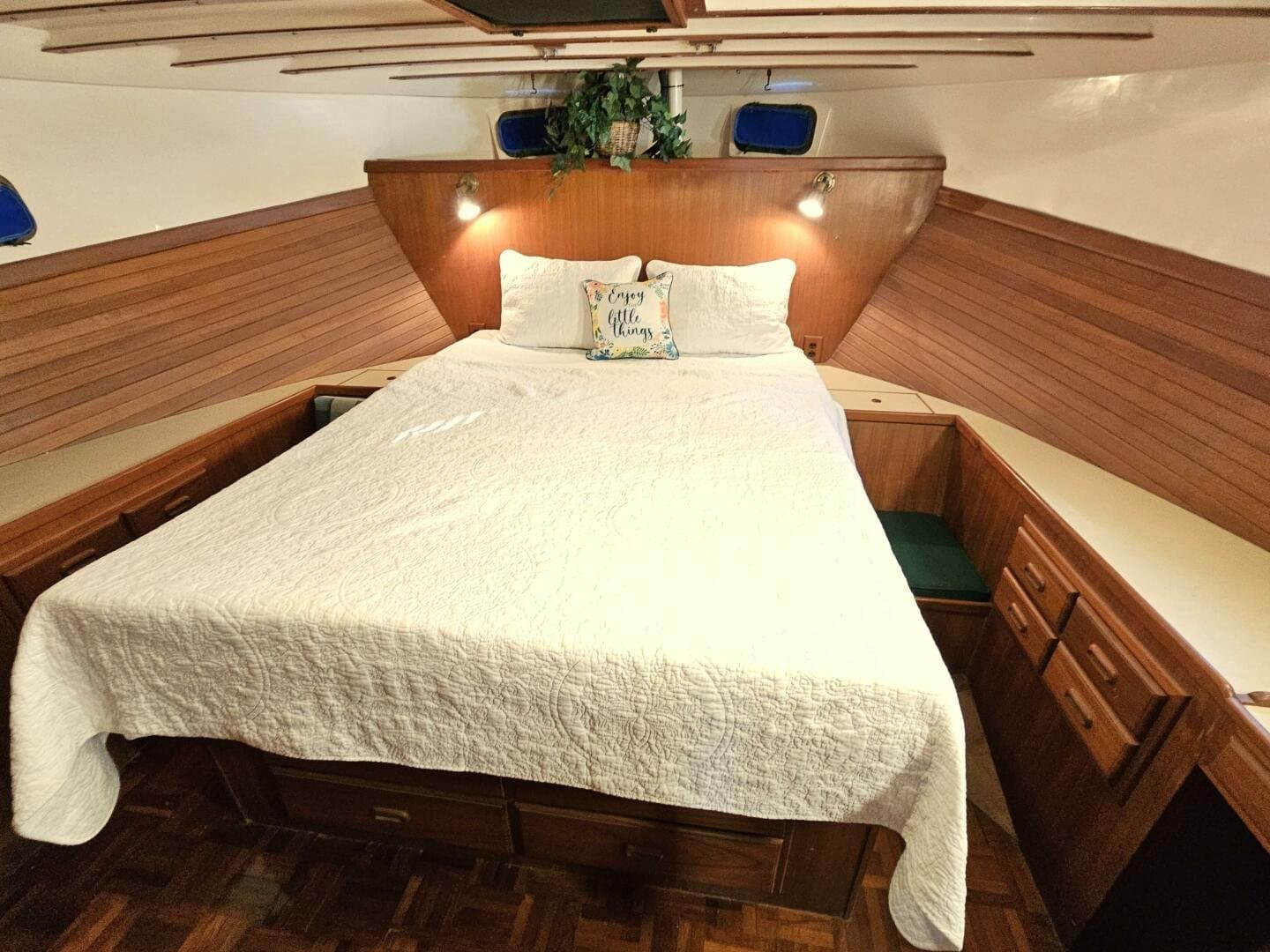

One of the outstanding features of the Krogen Manatee is the large stateroom, located forward.

•      Queen size, center line berth

•      Large "walk-in" size hanging locker

•      Bulit-in bookcase, mirrored vanity and generous drawer storage.

•      Four opening ports and a large opening hatch for great ventilation especially when you are on the hook.

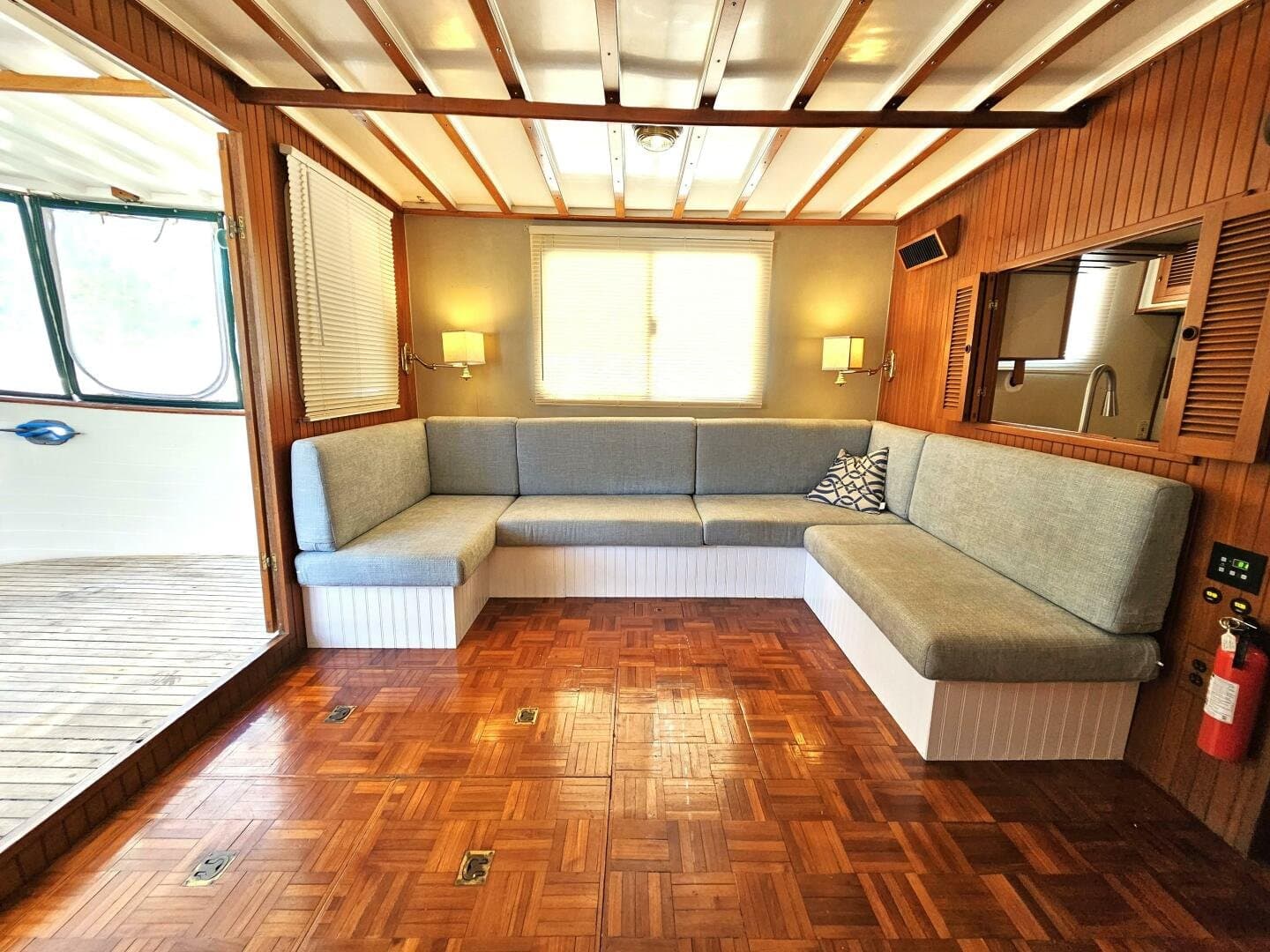

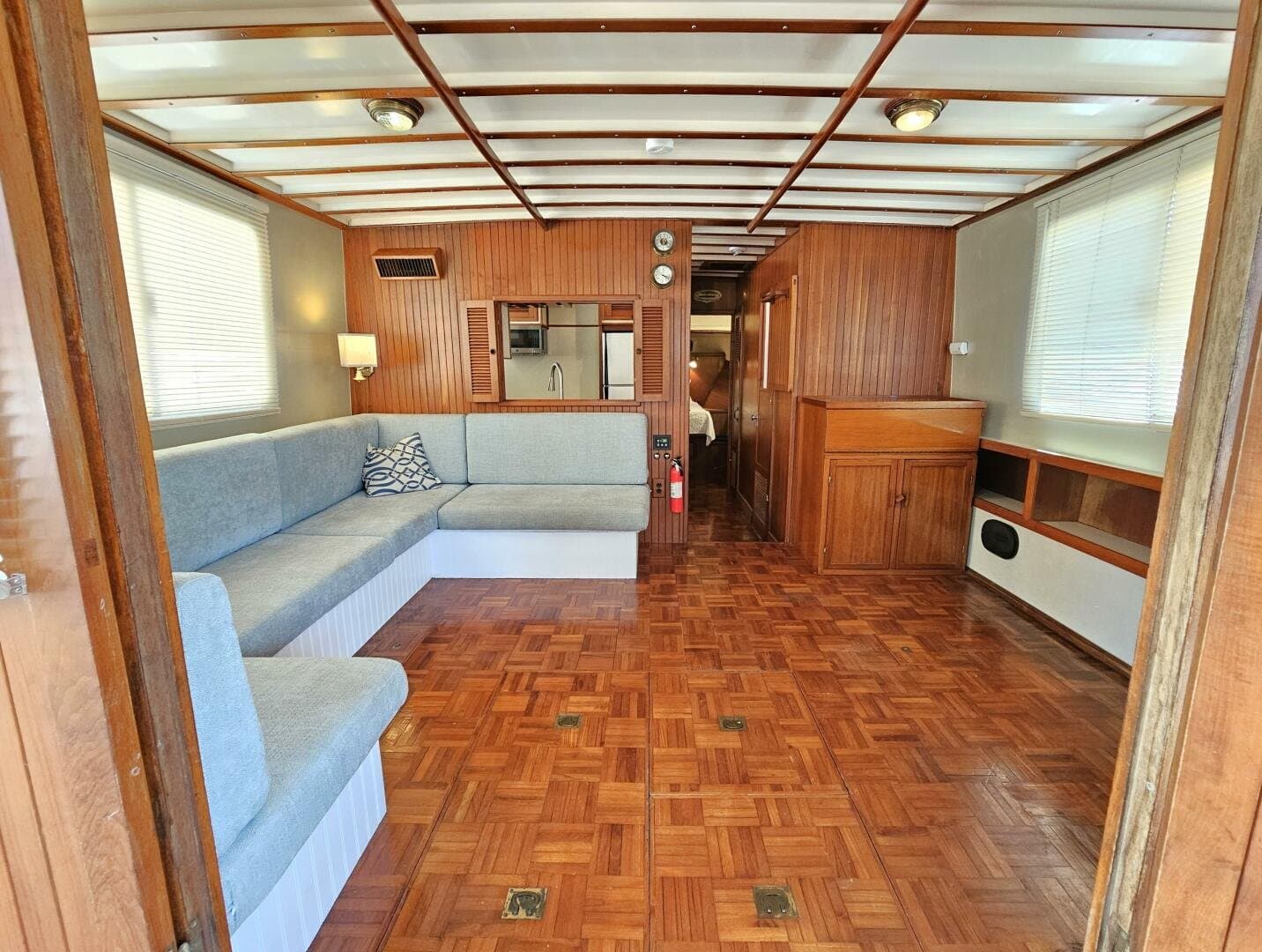

SALOON

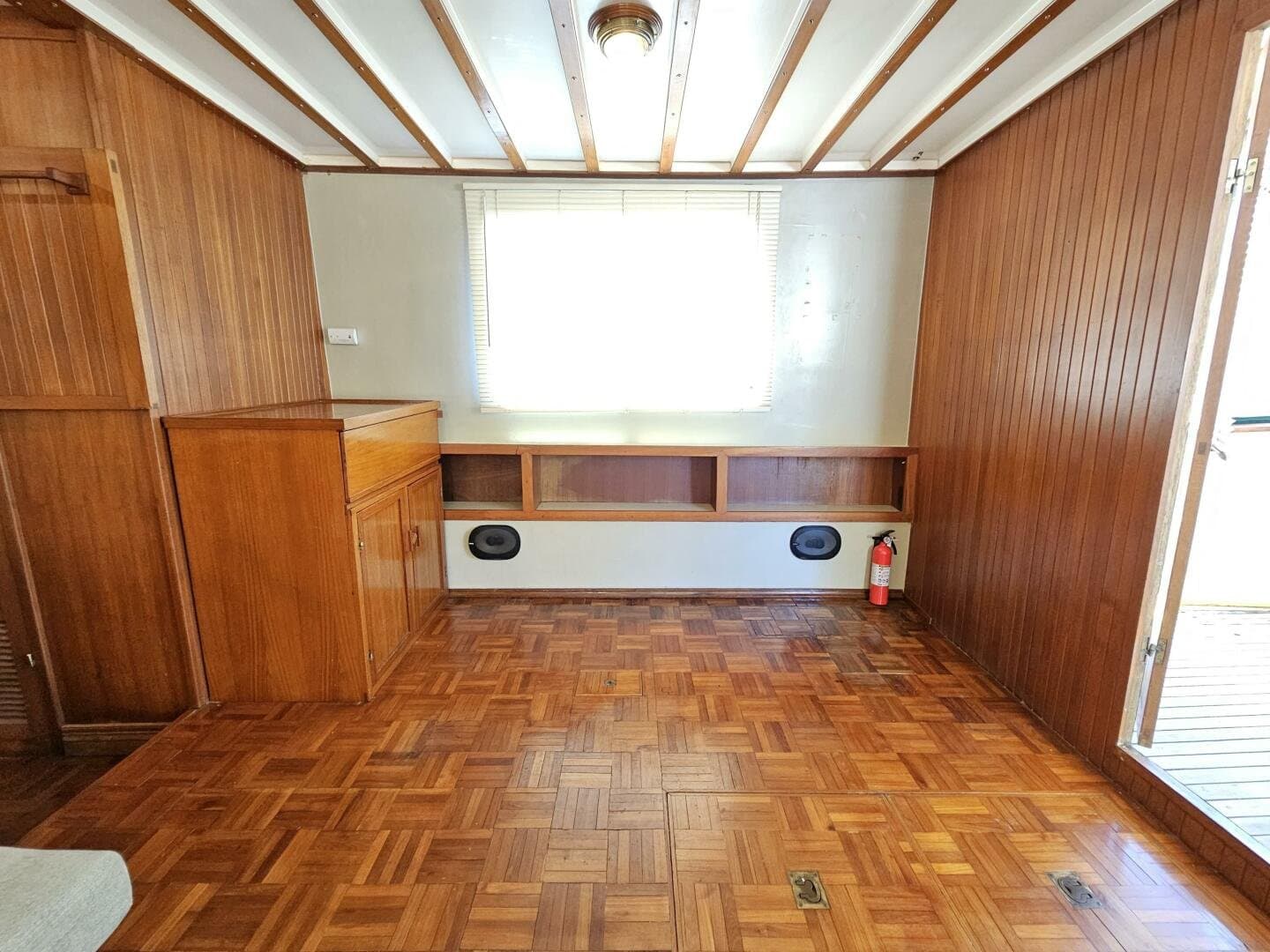

The Saloon is entered through double teak doors from a fully covered large aft deck. Aft deck fully enclosed with eisenglass/screen panels. It features a built-in U-shaped settee to port with ample storage. The starboard is open, allowing for 2 comfortable chairs and a small table. There are large opening windows with custom mini blinds port, starboard, aft and on doors.

HEAD

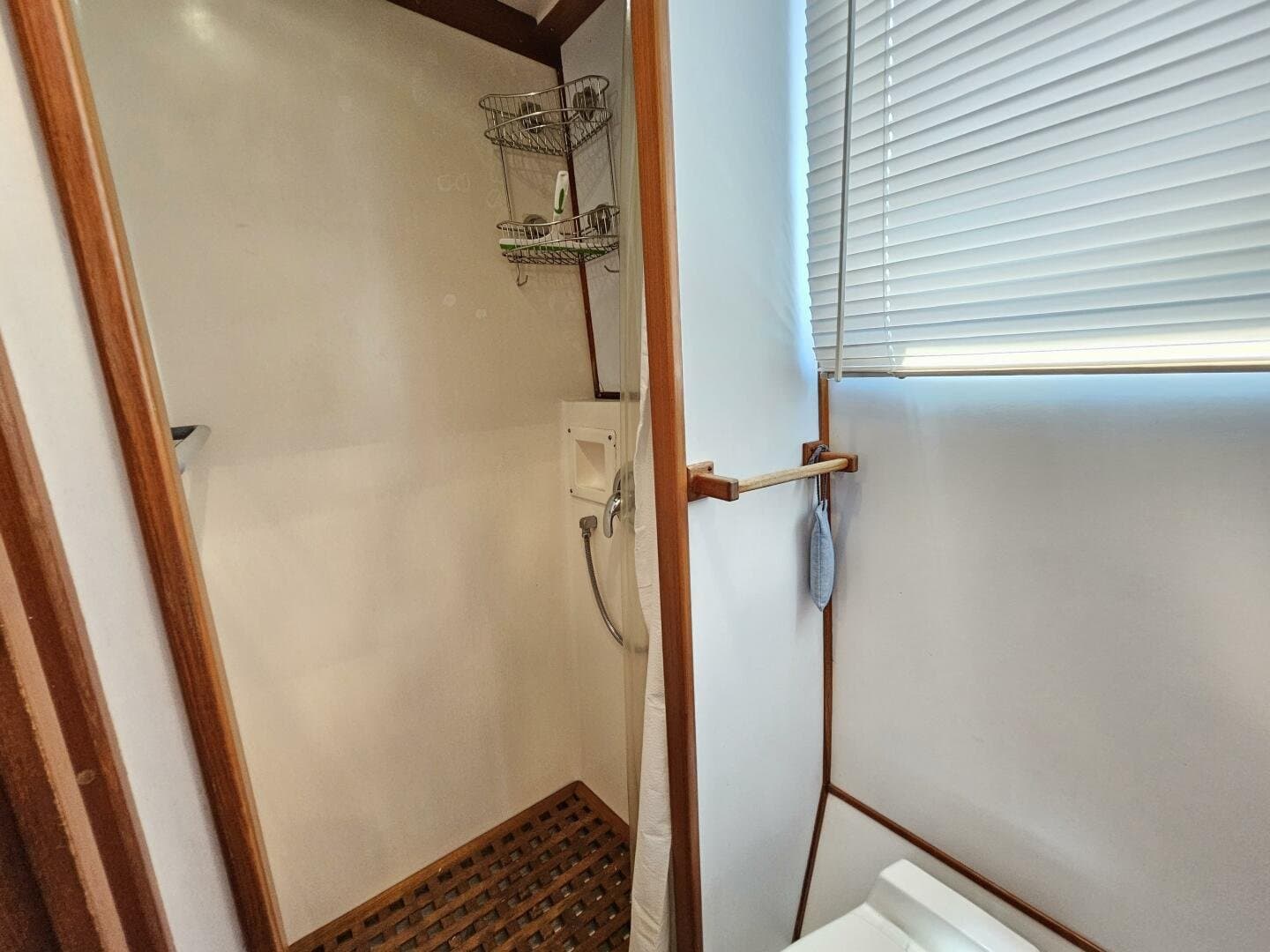

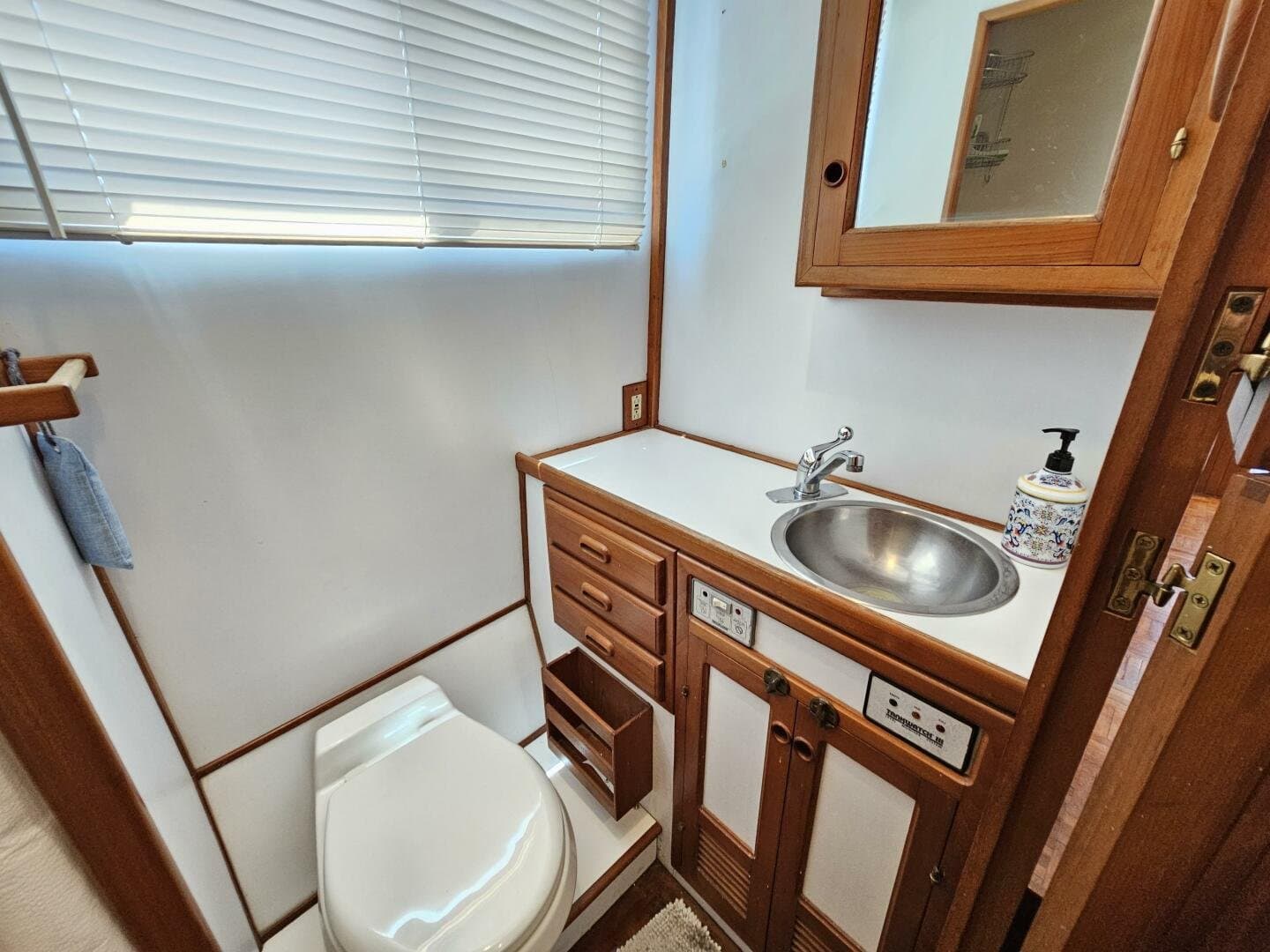

The head is located to starboard, opposite the galley. It includes a large separate stall shower and a large opening window and a Dutch door for ventilation.

•      Vacuflush VG12 – Complete recondition (all seals, duck bill valves, clamps) and new pressure switch ( October 2021). Toilet recondition; complete bowl/base kit ( October 2022).

•      All new San-X Sanitation Hose 1 1/2" #116-105-1120 hoses installed new ( February 2021)

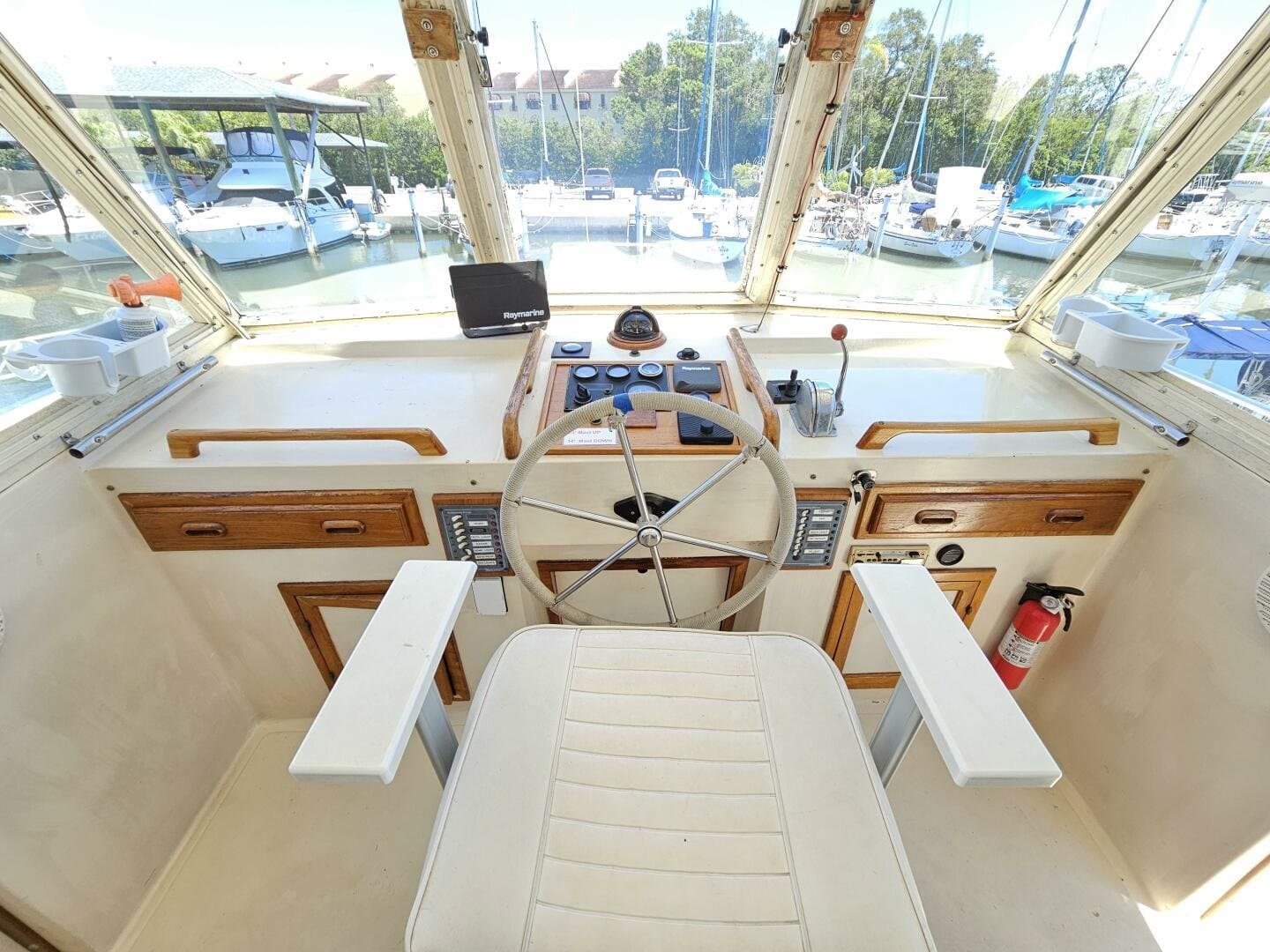

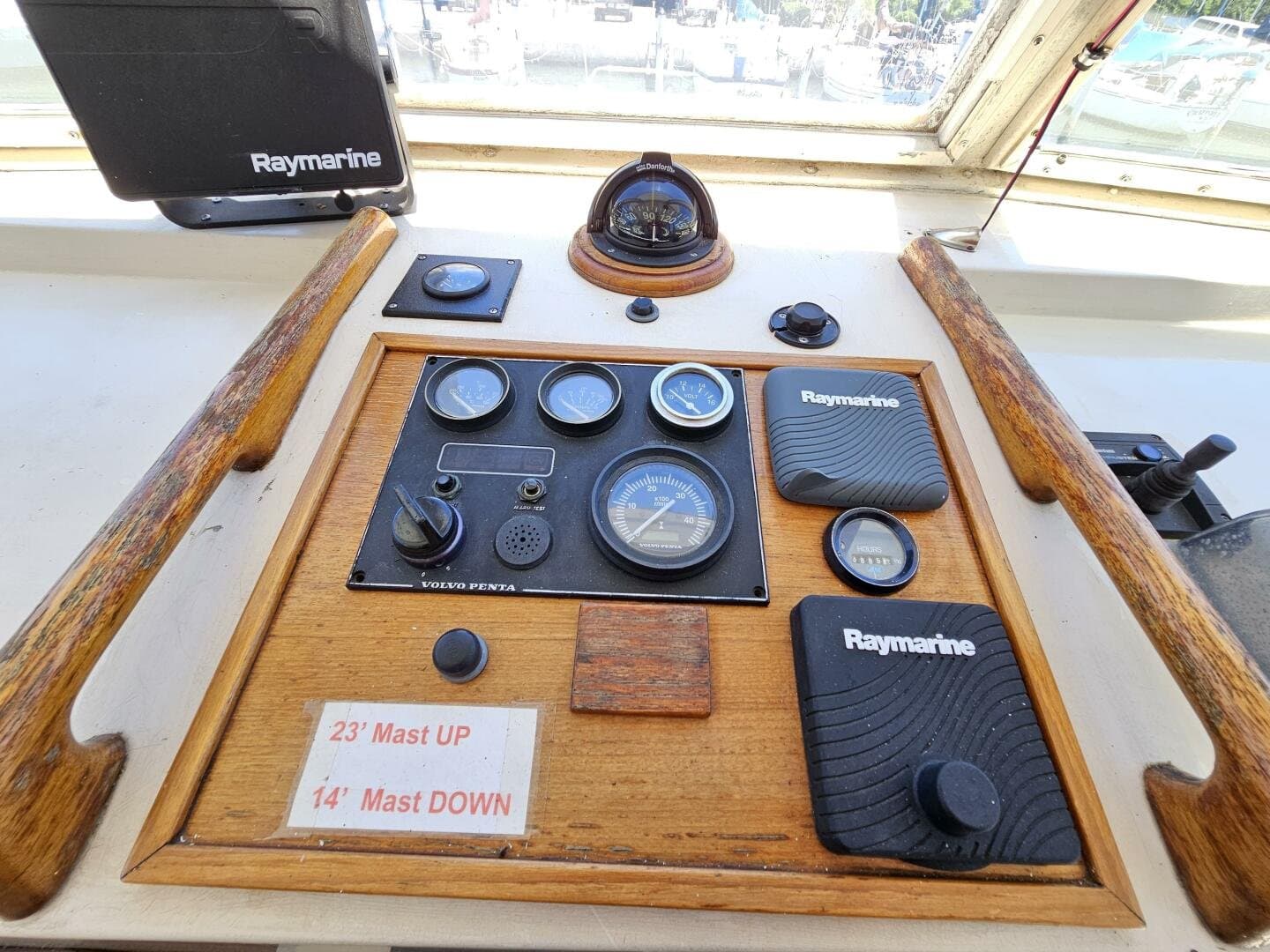

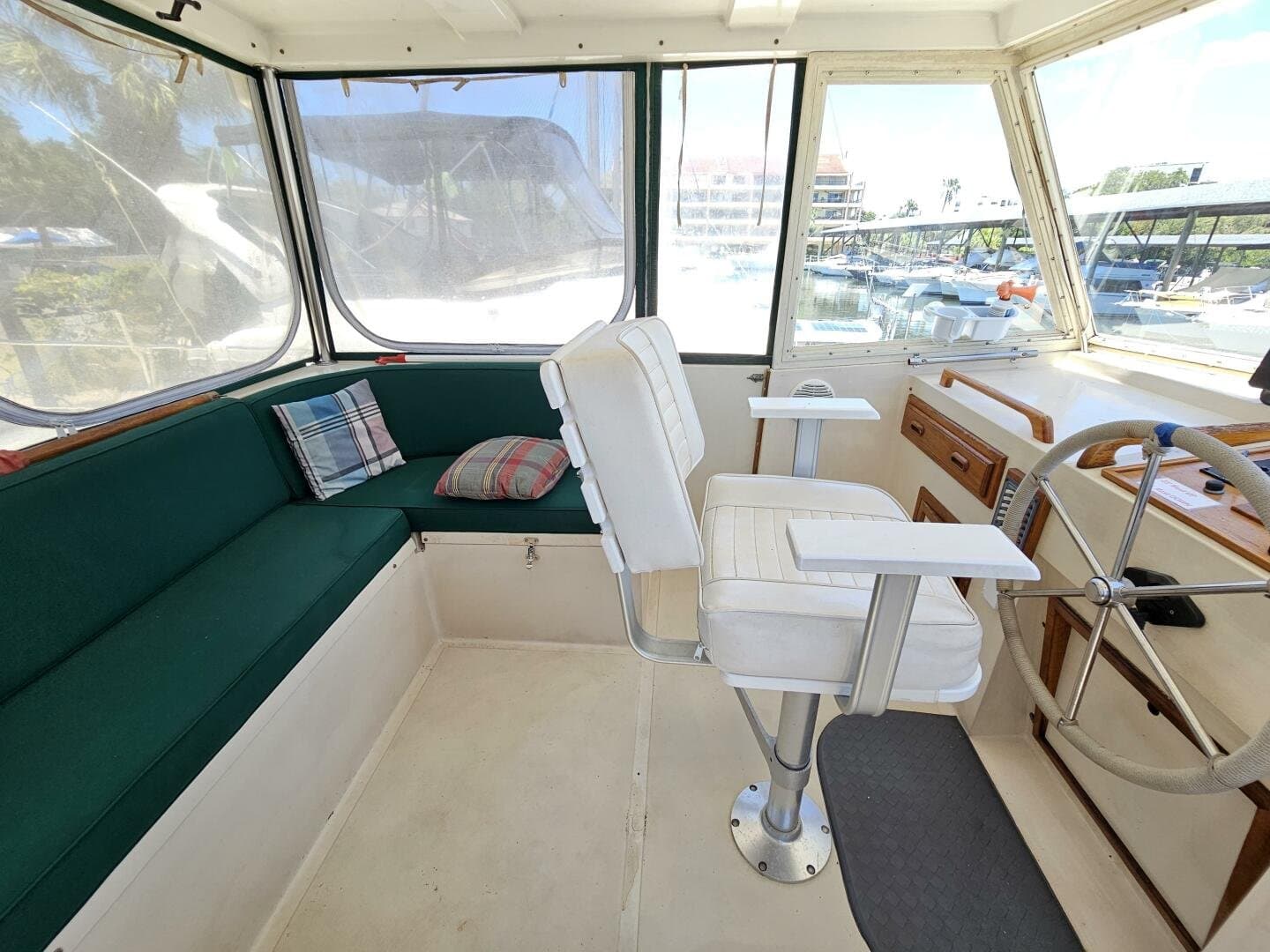

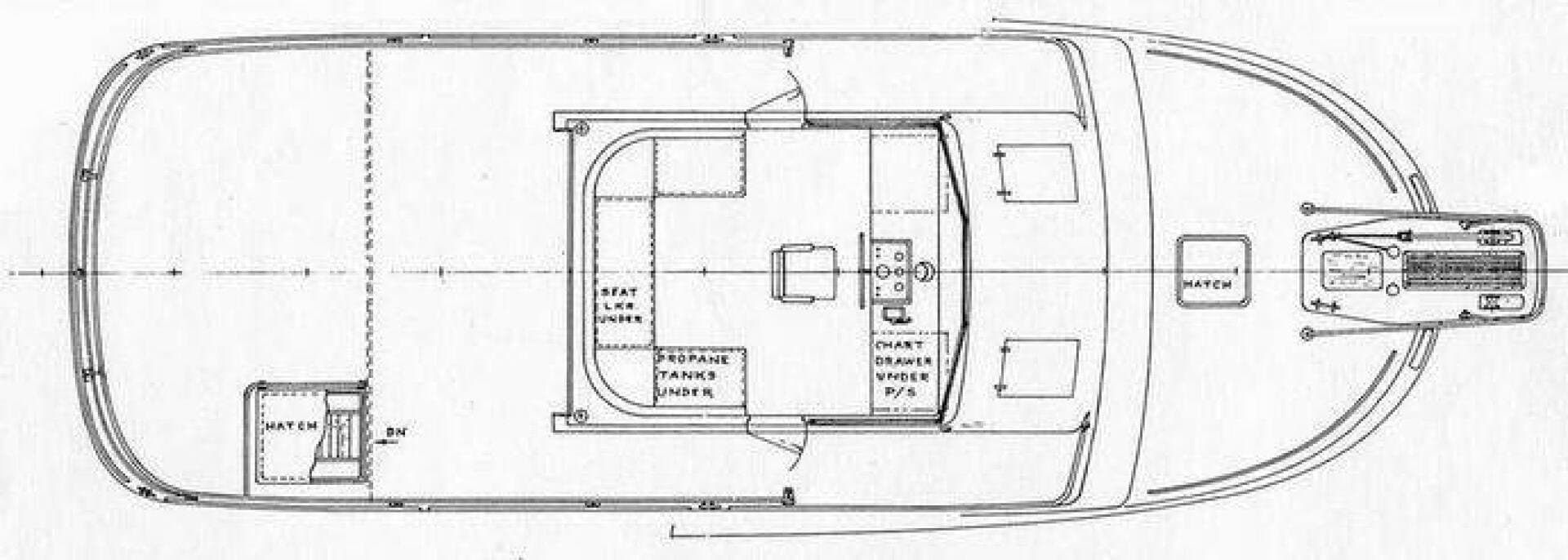

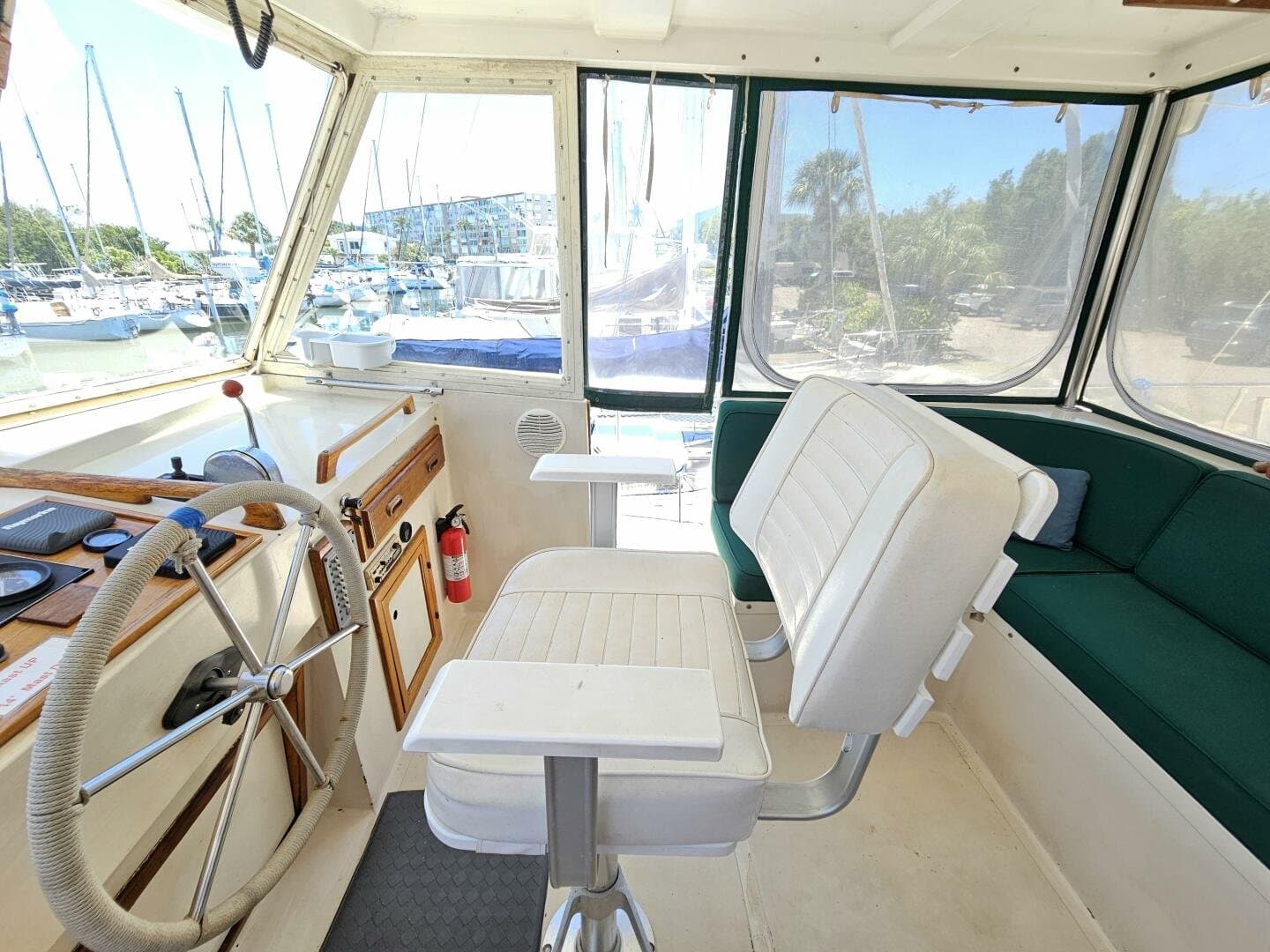

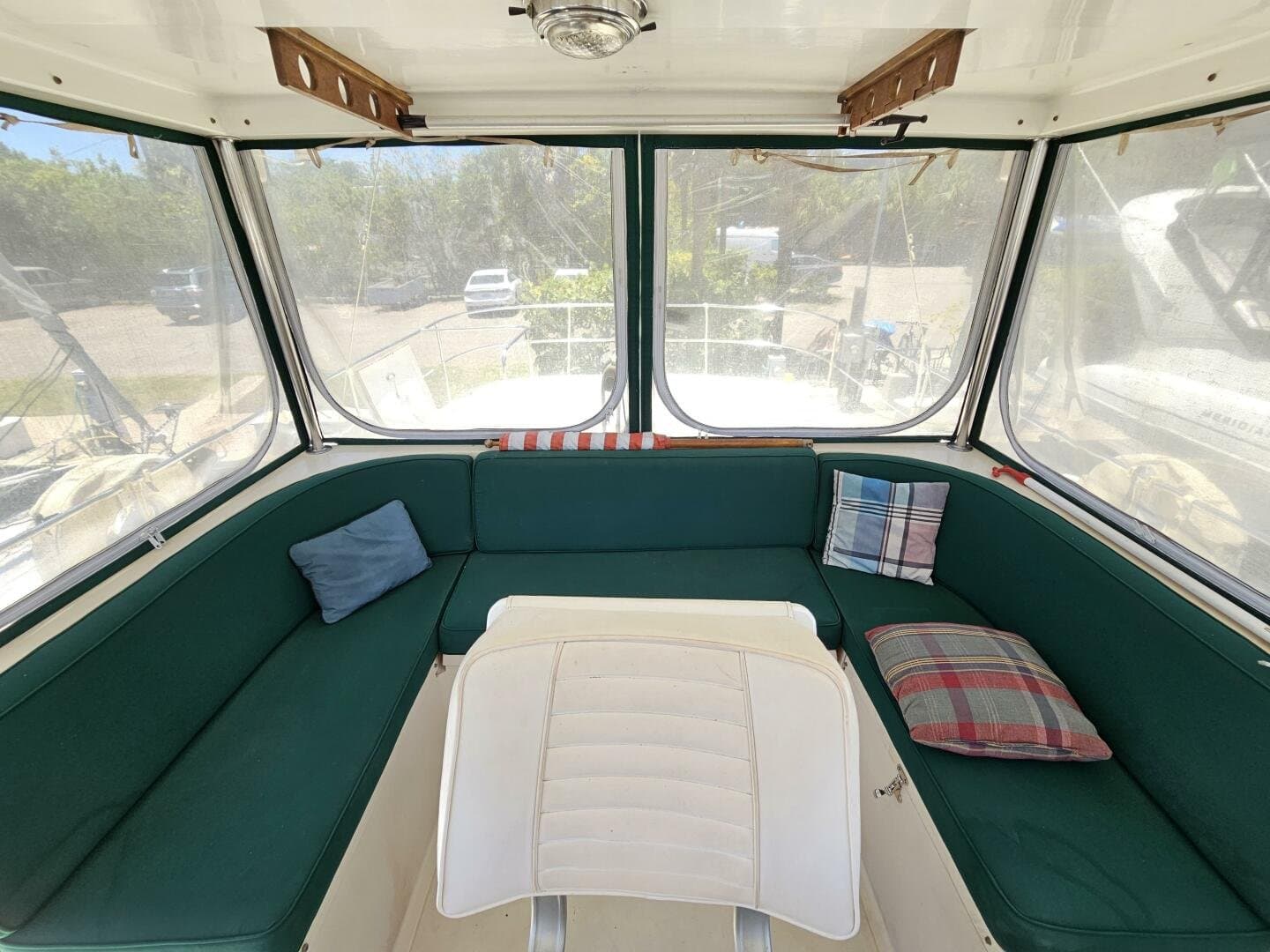

PILOTHOUSE

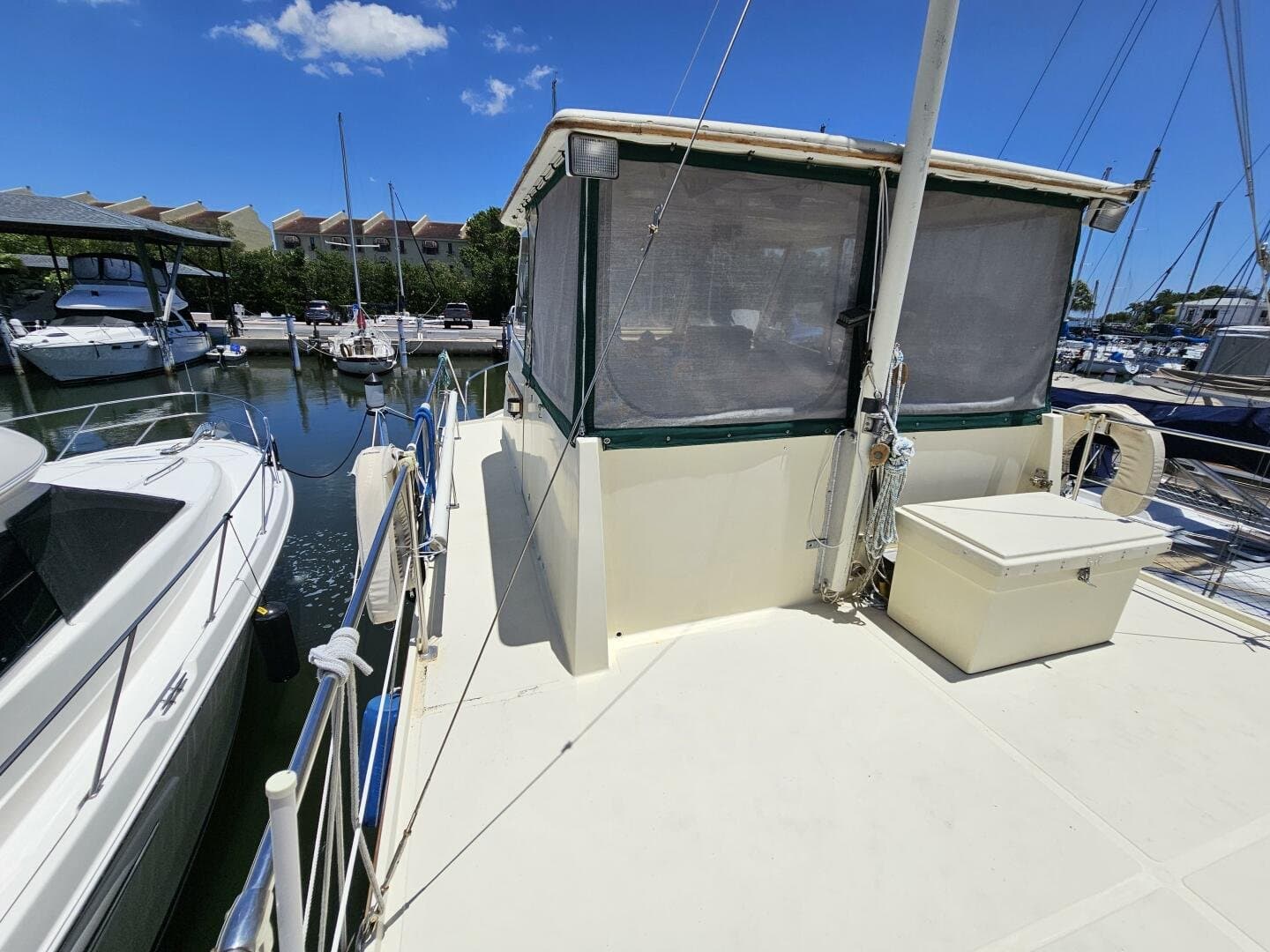

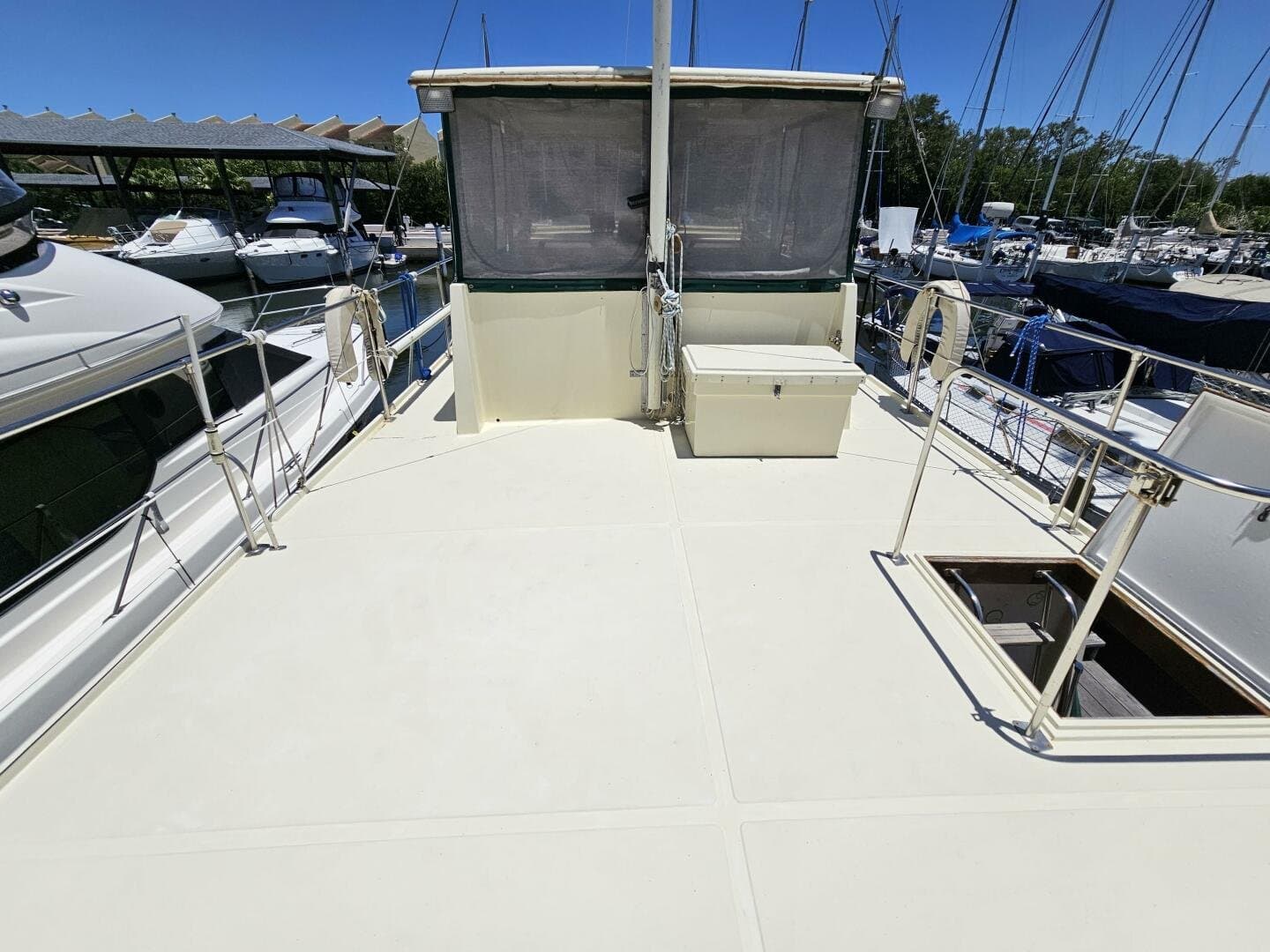

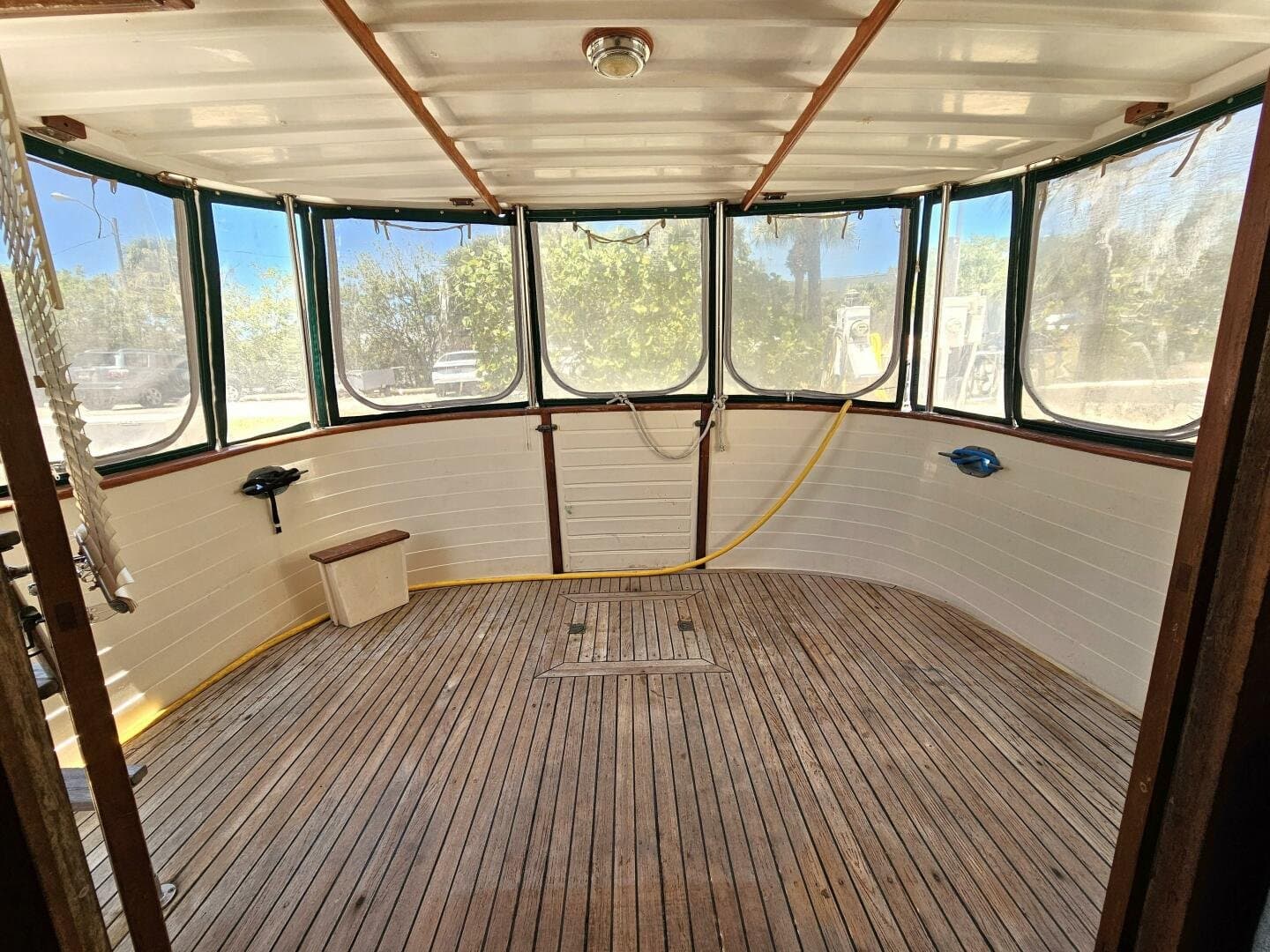

The pilothouse on the Manatee is located on the boat deck, and offers 360-degree visibility. It is completely enclosed with Lexan windows not only for the forward facing windows but on the sides and rear or the pilothouse as well. There are side deck doors port and starboard The settee converts to a double bed for an additional berth. The center of the windshield also opens for ventilation. Aft part of pilothouse fully enclosed with eisenglass/screen panels

STEERAGE

•    Hydraulic Steering – Seastar Capilano Helm; HH5250, Seastar Inboard BA175-7TM Hydraulic Marine Steering Cylinder; HC5319-3 installed new ( September 2021)

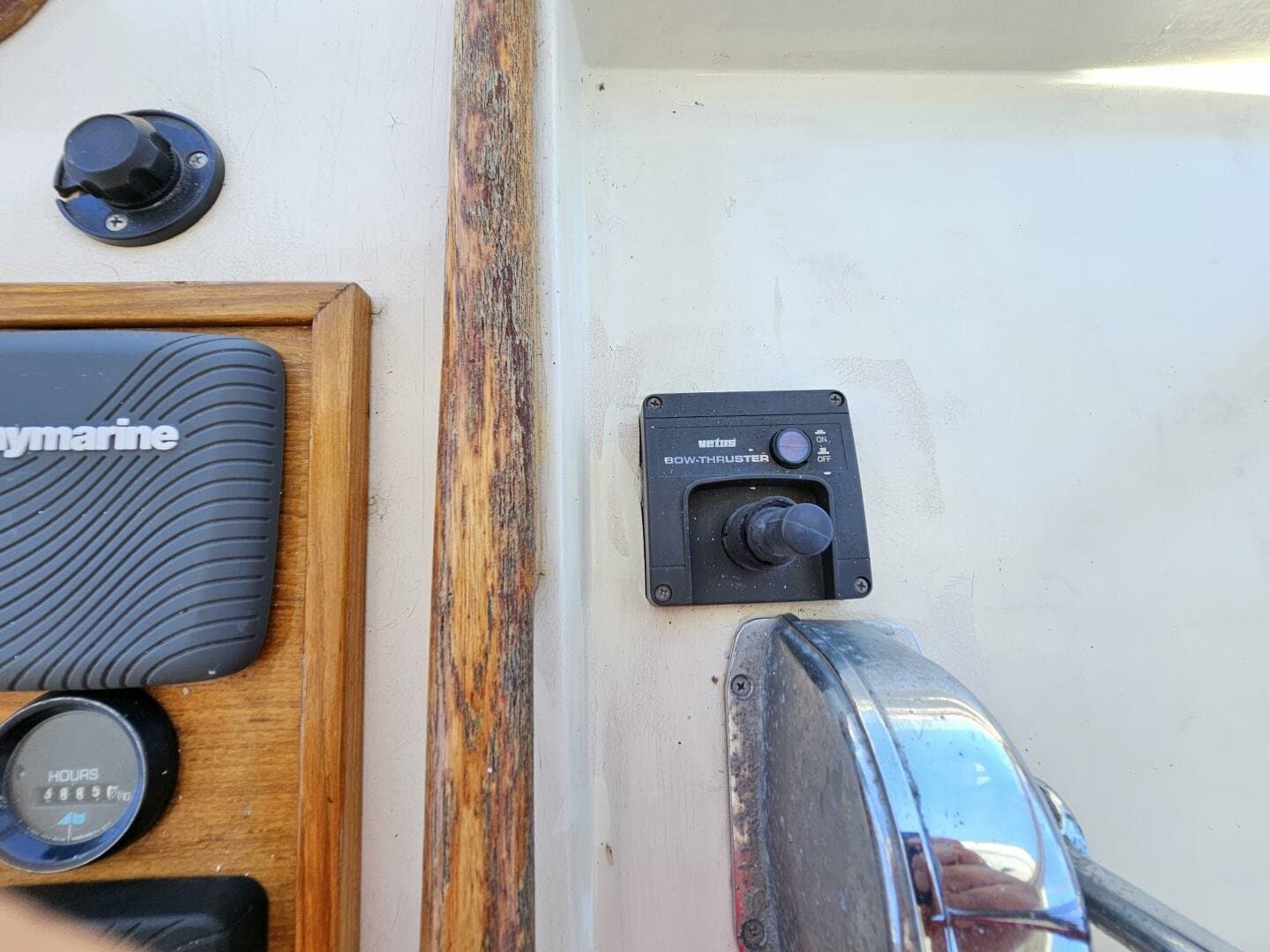

•    Bow thruster - 24 volt Vetus bow thruster

•    Compass at helm station - Danforth

ELECTRONICS

•      Raymarine Radar

•      Raymarine Chartplotter – Axiom 9 (E70366 1280058) Navionics

•      Auto pilot – Raymarine P70s

•      Depthfinder - Raymarine

OTHER INSIDE EQUIPMENT

•      Air Conditioning (Two units)

◦       Forward Berth and Galley - Dometic DTG8 115V 50/60HZ 410A , 8,000 BTU - Turbo w/ air sensor DTG8-1171 205160089 installed new ( August 2021)

◦       Salon – Dometic ECD 10K, 10,000 BTU

•      Water Heater - SuperStor Model SS-12M, s/n A29C4817 – 12 Gallon. Element and Thermostat installed new ( June 2021)

•      AC Water Pump - March Pump LC-3CP-MD 115V, 8.5 gallons per minute installed new ( March 2022)

•      Fresh Water Pump – Shurflo Aqua King II, 4 gallons per minute installed new ( May 2021)

•      Sump pump box for air conditioning condensation installed new  ( July 2022)

•      Three bilge pumps installed new. (Forward bilge pump with high-water alarm) (Engine bilge and mid-bilge January 2021)

GROUND TACKLE/RUNNING GEAR

•      Anchors

◦       Primary - Bruce 20 KG anchor with reported 25' of 3/8" chain and 140' of nylon three strand rope.

◦       Secondary - Anchor Secondary - Port - Delta, weight not seen, with reported 22' of 3/8" chain and 200' of nylon

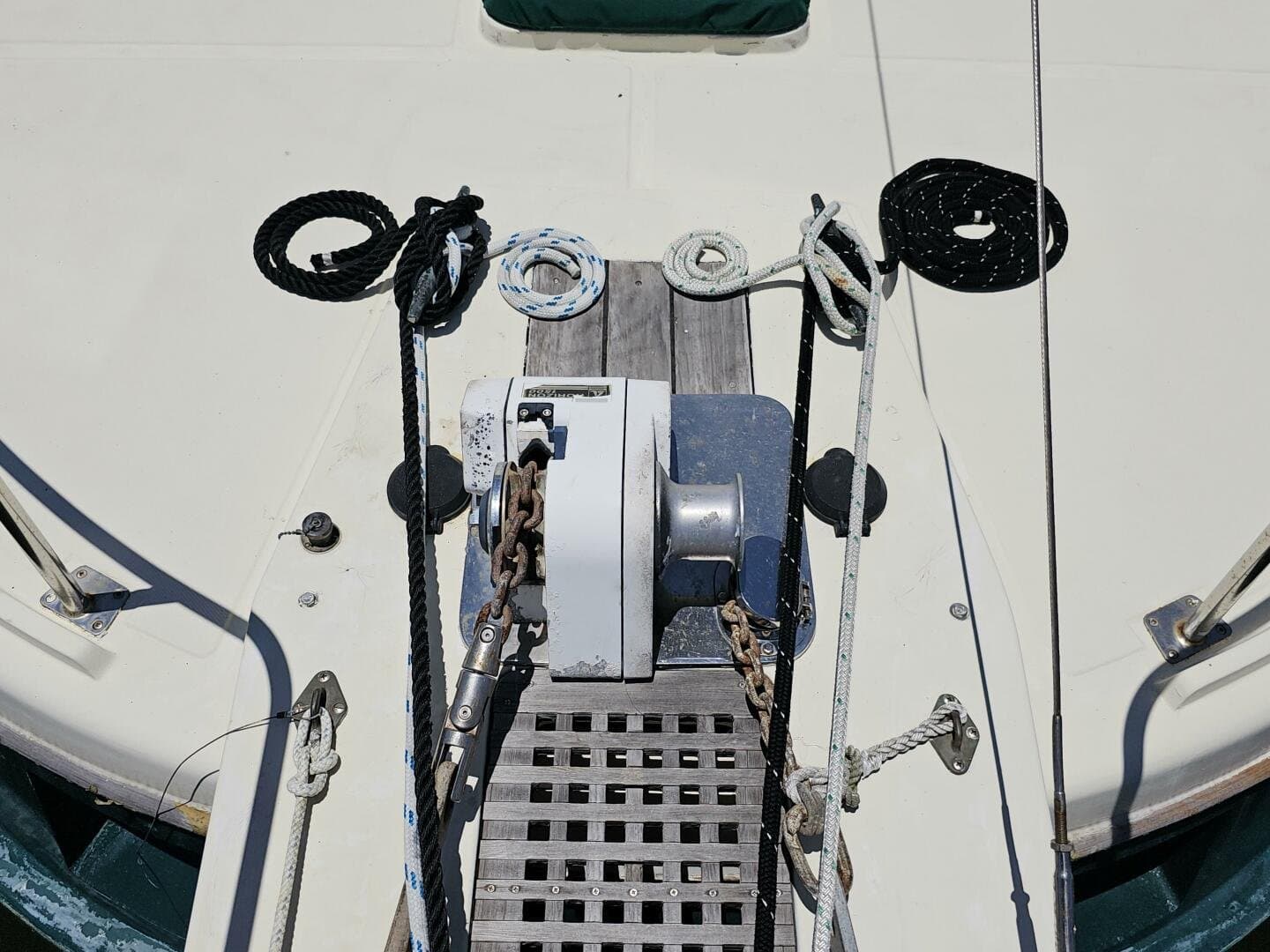

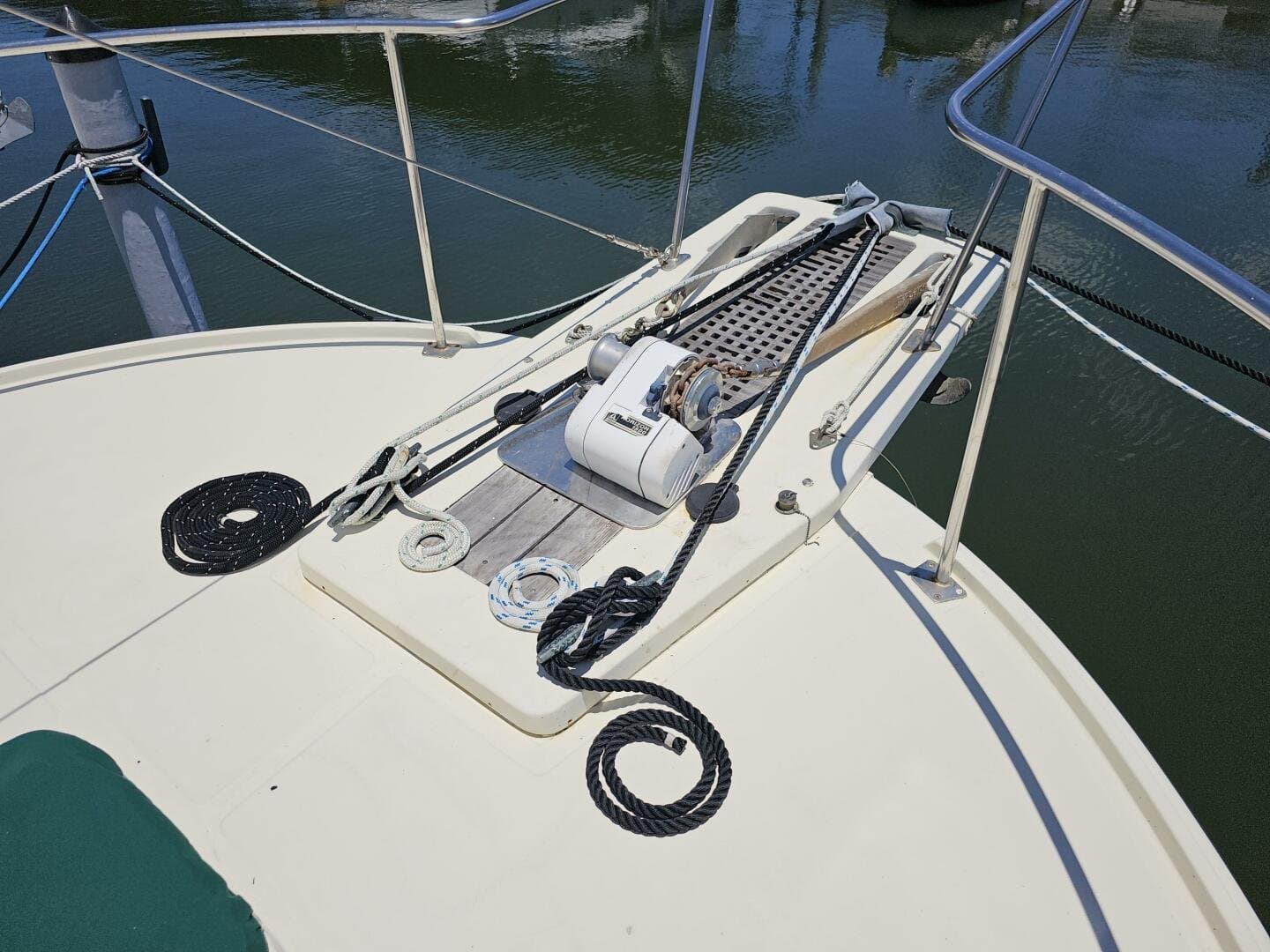

•      Windlass – Electric - 12 Volt DC, Simson Lawrence "Horizon 1500"

•      Running Gear

◦       Prop reconditioned (February 2021)

◦       Shaft, cutlass bearing, stuffing box installed new ( February 2021)

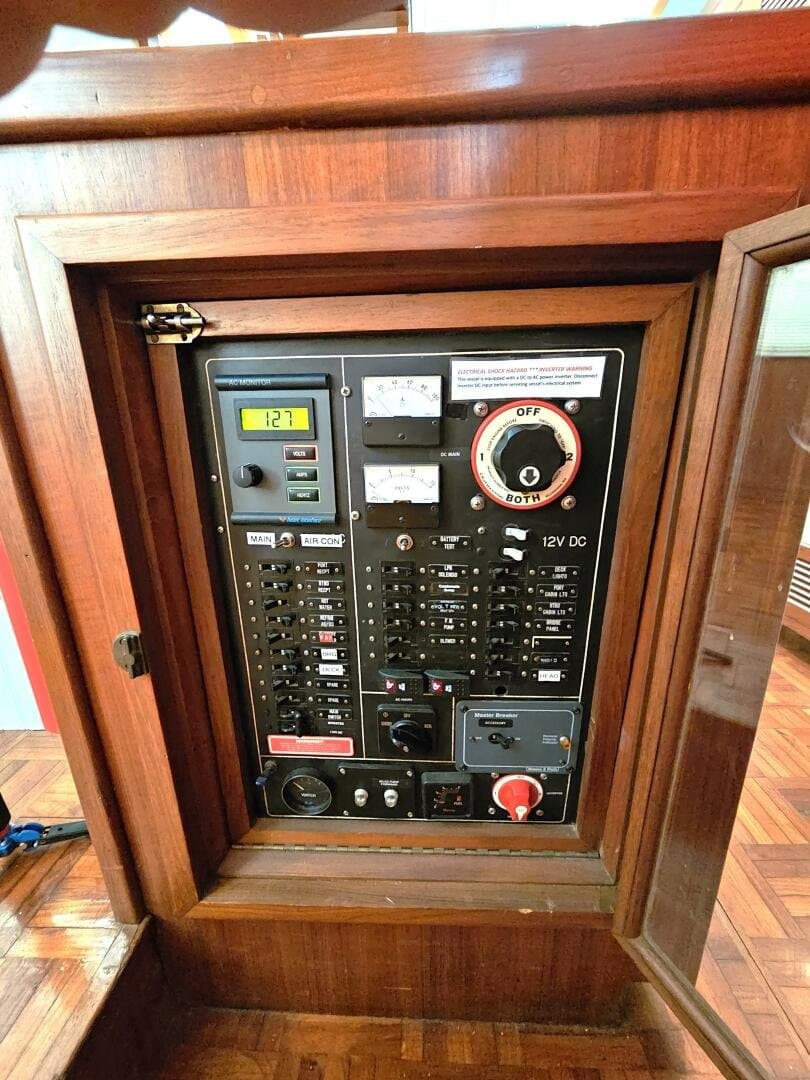

ELECTRIC

•    Generator - Kohler 6KW, model 6EKOD-S. Hours = 150. General service fuel and oil filter, oil, impeller, belt, etc (July 2022)

•    Inverter/Charger – Magnum Model MS2000. S/N T1-04176

•    Inverter Operation

•    2000 Watts continuous output.

•    DC Input 10.0-15.5VDC.

•    Continuous input current: 225A @ 12.6VDC

•    Charger Operation

•    Continuous charger current: 100ADC @ 11-14VDC

•    AC Input: 120VAC/60Hz @ 30 Amps Max

•    Batteries

•    Engine Start – 1 - AGM Group 24 Part # WM8A24M installed new ( October 2022)

•    Gen Start – 1 - AGM Group 24 Part # WM8A24M installed new ( May 2022)

•    House Bank – 1 - AGM Group installed new 4D 15020266 | West Marine 1420 Purpose AGM Battery198 Amp Hours installed new ( February 2021)

•    Windlass/Bow Thruster Bank installed new - 2 - AGM Group 4D 15020266 | West Marine 1420 Purpose AGM Battery198 Amp Hours installed new ( February 2021)

•    Galvanic Isolator - PCO Safe Galvanic Isolator installed new ( March 2022)

•    Electronic Battery Combiners

•    (1) 50' shore power cords. Other shore power cords and adapters

Additional Notes

•      Bottom painted January 2021 w/ Seahawk Biocop-TF

•      Stainless steel charcoal grill

•      Propane tanks – Two 15lb tanks

•      Boarding ladder – 6 step Gunwale-Mount boarding ladder installed new – ( August 2022)

CONSTRUCTION

The Manatee hull and cabin are of fiberglass sandwich construction with closed-cell PVC foam core; heavy hand lay-up using mat and roving. The state of the art construction is one of the most enduring and safest afloat. Closed-cell PVC foam does not deteriorate or absorb water. The composite structure serves both as a buoyancy material and shock, sound and temperature insulator. It rides quietly, increases impact strength and eliminates condensation build-up inside the hull. All joiner work, paneling and beam caps are of prime teak. Cabinetry is also teak
