58'Length

DieselFuel

Key Specifications

Length58' (58' 0" LOA)

Year1970

CategoryMotorsailers

TypeSail

Hull MaterialFiberglass

Fuel TypeDiesel

Description

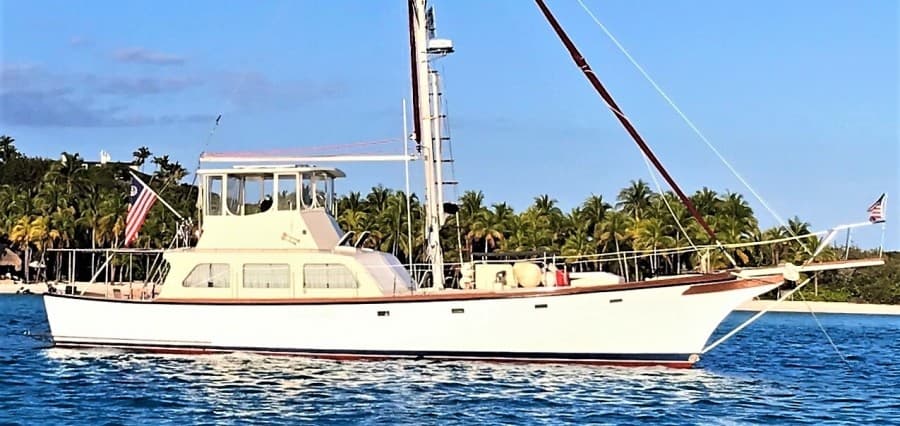

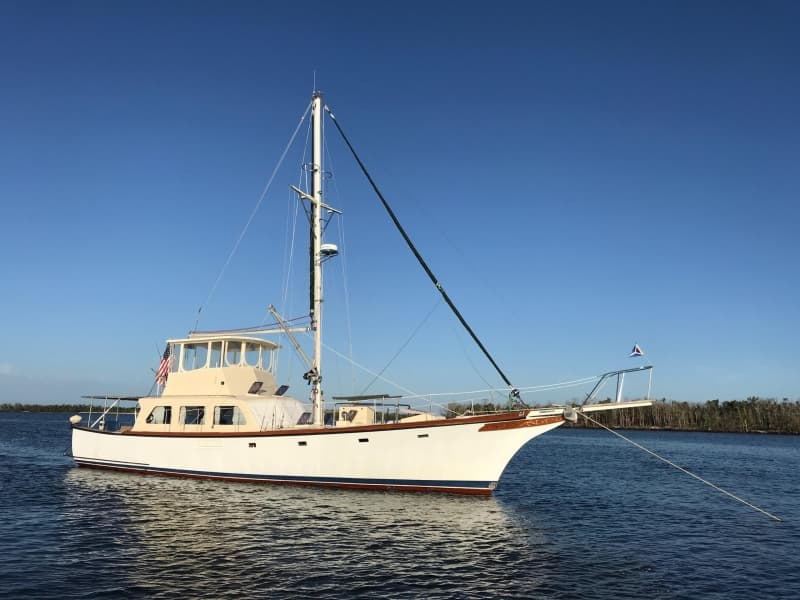

1970 Lyman-Morse John Alden Hawksbill Motorsailer 58ft

US$230,000

Saint Petersburg, Florida

BASICS

Year:1970

Make: Lyman-Morse

Model:John Alden Hawksbill Motorsailer

Class: Motorsailer

Length:58ft

Fuel Type:Diesel

Hull Material; Fiberglass

Hull Shape: Displacement

DESCRIPTION

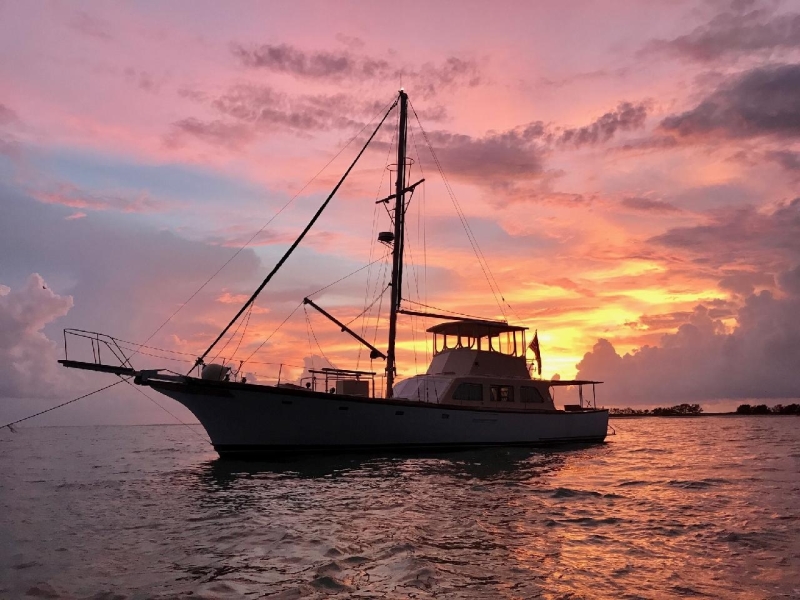

1970 Lyman-Morse John Alden Hawksbill Motor SailorRare John Alden Designed Fiberglass Motor Sailor - Timeless Elegance

Originally designed as a gentleman's fishing yacht, this is a nautical piece of art. She was created by on of the greatest yacht architects of all time and built by some of the finest craftsmen in Maine. She is both robust and refined. Over the years Arabella has been well maintained and updated to ensure that she is still the impressive yacht she is today.

Get ready for the cameras to come out when Arabella arrives. Her beautiful classic lines and distinct flair makes her a true head turner. A rare findin today's market of mass produced boats.

195 HP Commercial Grade Big Cam Cummins Engine (200 hrs SMOH)

4000 Nautical Mile Range

Immense Living Space perfect for a Family

1"Thick Fiberglass and Foam Insulated Hull

Meticulously Maintained by Experienced Owners

Impressive Living Space with Three Staterooms, Two Heads and So Much More!

Owners Comments

Cruise in style aboard Arabella, a classic motor sailer built to commercial grade standards. Originally designed as a gentleman’s fishing yacht, this nautical piece of artwork, has been continuously well maintained and updated over the years by its stuarts to the impressive yacht she is today. Get ready for the cameras to come out when Arabella arrives. Her beautiful classic lines, distinct flair and uniqueness are a real head turner.

With fuel capacity of 2,100 gallons, she has a nautical range of 4,000 miles under power. She will cruise at 9-10 knots at a comfortable 1400 rpms. Cruise the entire Bahamas, or cruise to South America and back without the need to stop for fuel along the way. No more taking on bad or overpriced fuel in questionable marinas in foreign ports. Arabella’s commercial grade, fully mechanical 195HP Cummins 850 big cam engine was removed, rebuilt and reinstalled in December 2020. 850 big cams are efficient, very powerful in the biggest of seas, and are used on commercial fishing trawlers around the world. She will not let you down.

Stay dry and comfortable in any seas, securely seated in the fully enclosed flybridge, complete with reclining captain's chair and Dometic drink refrigerator. The visibility from the flybridge cannot be beat with full 360 degree, elevated views. A second, inside and air-condition helm station will provide comfort on very hot or cold days as well as in big seas. It’s an nice feature to have when the weather does no want to cooperate.

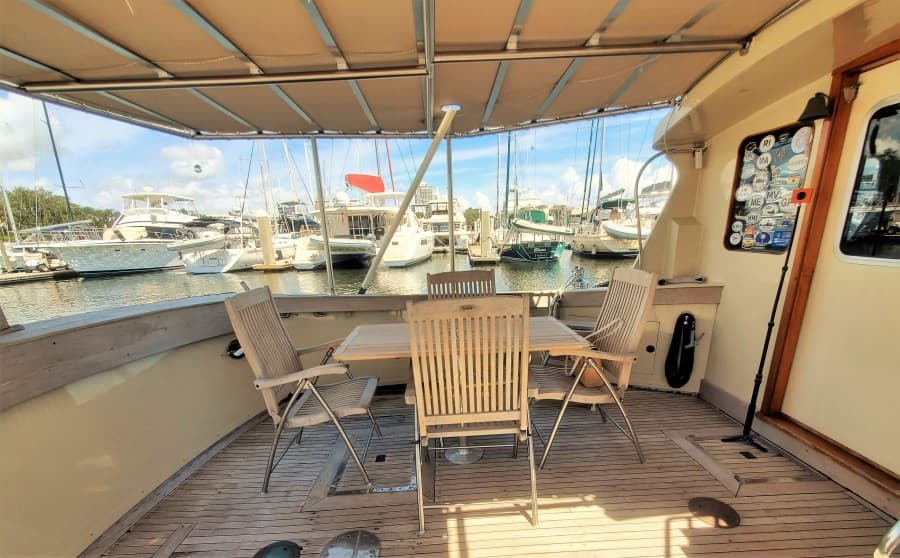

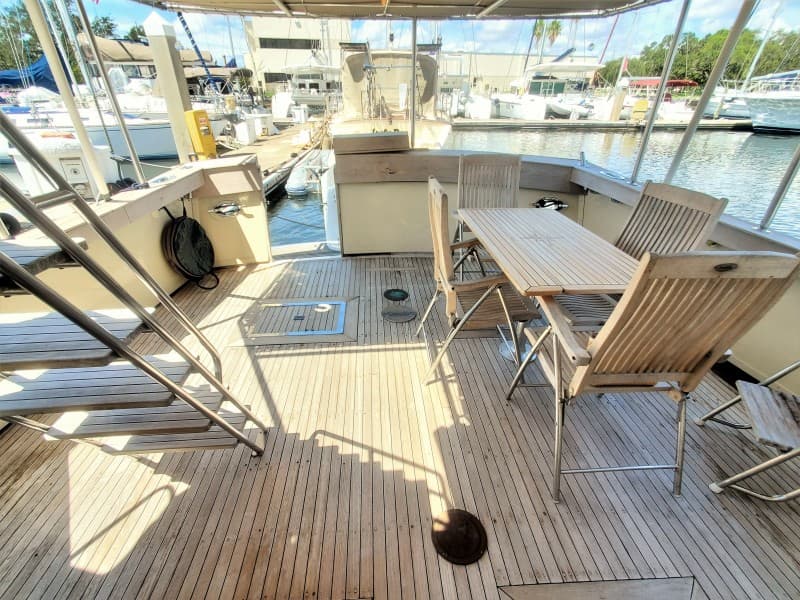

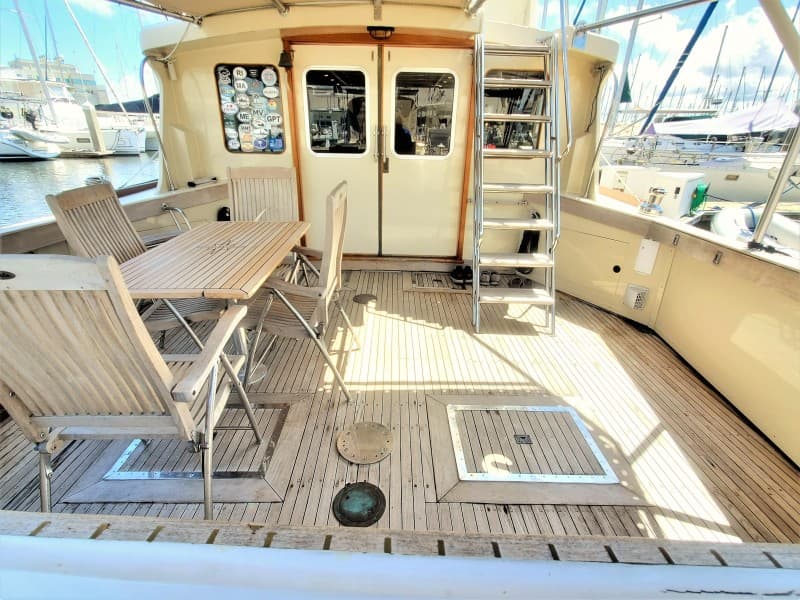

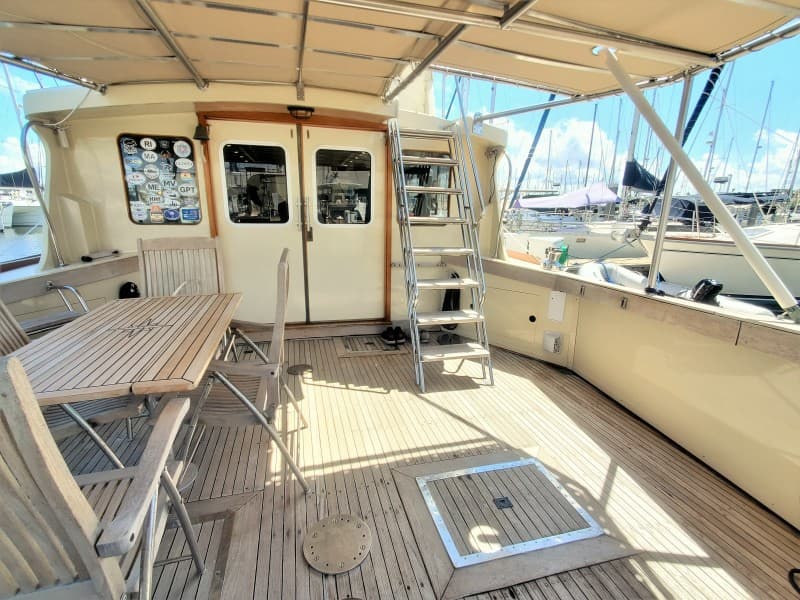

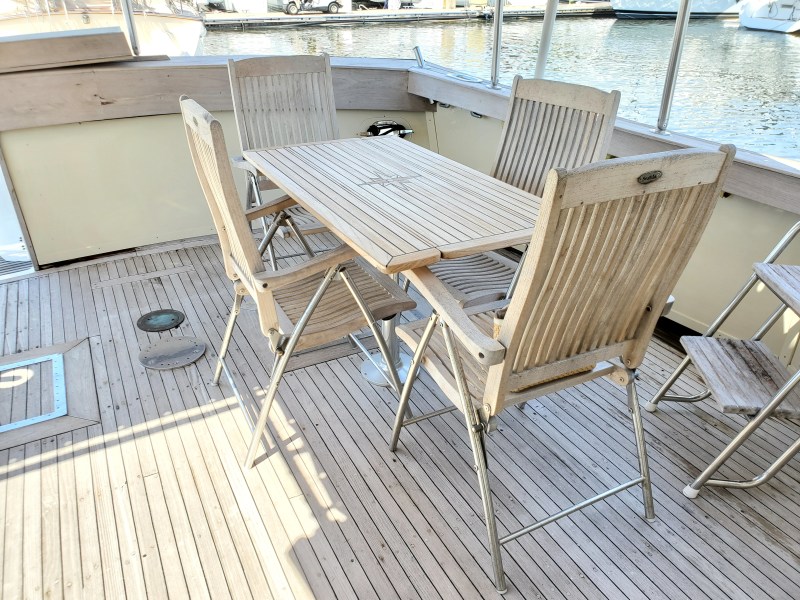

Relax and entertain in comfort in the covered spacious aft cockpit, featuring teak decking, fold down teak table and ergonomically designed and reclining teak chairs. Double sliding doors provide access to the salon, and since everything is on the same level, there is no climbing up and down stairs in the companion way. It is a fantastic platform while underway, docked or anchored in a favorite getaway spot.

The galley is a chef’s dream. 12v refrigeration and freezer, maintained by twin solar panels on the flybridge hardtop, are very large and are designed to hold provisions for months. The new propane range and oven are a pleasure to cook on. A stainless steel hood vent with fan exhaust to the exterior of the yacht are a recent addition. A house-sized galley sink, new kitchen faucet with sprayer, soap dispenser and filtered water dispenser will spoil you with features you are accustomed to back on land. A custom built, folding teak table in the galley provides more counter surface and makes a great spot to eat a casual meal for two.

Get a great night’s rest by anchoring in the premium spots with Arabella's 4’10” shoal draft keel. By being able to tuck in close with her shallow draft, Arabella can anchor protected from the waves and rolliness found in many cruising anchorages.

With a 49-foot mast height, easily cruise up and down the Intracoastal Waterway from New York to Florida and even through the Okeechobee Waterway from Florida’s East coast to West coast.

If you are planning on cruising with children, the midship cabin is setup with bunks that double as classroom benches complete with a custom built, framed and reversible 3 x 5 foot whiteboard or global nautical map. During construction, at what is now the world renowned yacht builder Lyman-Morse, Arabella’s solid fiberglass hull was spray foam insulated prior to joinery work being installed. This is a fantastic feature as it insulates the boat from noise and the elements. Arabella is nearly sound proof underway and at noisy anchorages. The insulation along with her 3 A/C and heating systems keeps the yacht chilled on the hottest of days and toasty warm on cold days. Furthermore, the insulation stops the hull from sweating, eliminating moisture and mold growth on the cabin walls.

Arabella’s power plant is a newer 9.5kw Kohler genrator in a sound box. She is quiet, efficient and most importantly reliable. Arabella holds over 350 gallons of fresh water. With a 40 gallon per hour watermaker aboard, you can do away with rationing freshwater. Enjoy unlimited showers, laundry, dishes and cooking cleanup, and even rinse the entire boat down with freshwater after every sail at sea, an unimaginable luxury on traditional saying yachts. All tankage (fuel, water and holding tank) are built-in, thick walled fiberglass tanks. It is a solid, leakproof and odor free system that has withstood the test of time. The 70 gallon holding tank can be emptied in 3 ways: through a deck plate, electric overboard macerator pump at sea, or manually with a gusher pump.

Other key features include, on deck trouble-free and secure dinghy storage for any kind of seas, 1000lbs windlass for easy anchoring, swim platform for easy boarding from the dock, dinghy, swimming or accidental man overboard, washer/dry combo with vented exhaust, 2 full-sized power Raritan heads, jack and jill shower, lighted closets, full pantry closet and enormous storage throughout. Arabella was designed for long distance cruising. As a result, most systems have multiple backups so that the failure of one system does not become disastrous while underway and ruin your trip or worse, become hazardous. She is truly a yacht designed to efficiently and safely take you anywhere you want to go... in style.

Brokers Comments

A rare find in todays market of mass produced boats, Arabella harkens back to the days of solidly built yachts capable of traveling around the world in safety, comfort and economically. Originally built to go to sea and hunt for Swordfish Arabella still has the dual crows nests mounted on the mast. What was once used to scan for Swordfish and Tuna, can now be used to look for the perfect hidden cove where you can drop anchor and relax. Ruggedly built yet elegant and stylish, Arabella is one of only two Fiberglass Hawksbills ever built. Her classic John Alden designed hull cuts through the seas with ease. The full keel with protected prop and robust rudder system provide peace of mind when traveling in uncharted waters. Powered by an economical 195 HP Cummins diesel with just 200 hour SMOH, Arabella will cruise at 9 -10 knots and has a potential range of 4000 nautical miles.

Upgrades and Improvements

2021 Cummins 855 complete engine rebuild

2021 Replaced all starter battery cabling

2021 Replaced Cutlass bearing

2017 Installed Sideshift stern thruster

2017 Replaced dry stack exhaust

2018 Replaced wet exhaust

2018 Replaced two stainless steel wash down spigots

2017 Installed shore water valve

2017 Cockpit Sunbrella cover

2017 Stainless steel sliding door handles

2017 Installed Flatscreen TV

2020 Installed Rugable washable rugs

2017 Installed high-water alarm

2018 Installed Range cover with blower motor

2021 Rub rail removed and resealed

2020 Replaced range and oven

2020 Replaced galley faucet and hardware

2017 Installed fold-down galley teak table

2017 Enlarged master cabin bunk to queen size

2018 Replaced Shower Sump pump

2017 Enlarged toilet bowls to house size

2019 Manufacturers rebuild of Raritan head

2019 Installed separate head water fill and flush buttons

2017 Replaced closet lighting

2017 Replaced all bunk reading lamps

2018 Replaced charger for windlass battery bank

2019 Installed 3 8D house batteries and 1 8D starter battery

2017 Replaced prop-shaft

2018 Replaced port and starboard engine room blower motors

2017 Installed LED lighting in engine room

2019 Installed pantry shelving in midship cabin

2019 Replaced freshwater heater $

2019 Replaced master cabin AC/heater

2019 Sanded and painted AC vents/returns

2018 Installed retractable depth/fish finder

2020 Installed 600 sq/ft genoa

2020 Installed Stainless steel cockpit winches

2018 Installed spinnaker halyard and block

2018 Installed ratlines and mast steps

2017 Replaced sacrificial sun covers on sails

2018 Replaced flybridge helm seat

2017 Installed cockpit table and chairs

2017 Rebuilt gusher pump

2021 3-stage hull buff and wax

2021 New bottom paint and hardware

2018 Replace flybridge Cummins instrument cluster

Accommodations

Arabella features an impressive open layout with an expansive salon leading onto the huge aft deck. Configured on the same level this large living space means everyone will have plenty of room. Forward and down two steps is a proper Galley on the starboard side. To port is a good sized double bed stateroom with ensuite Head and Shower. Forward of the galley are two bunk staterooms. A second Head with shower is located next to the forward stateroom.

Staterooms

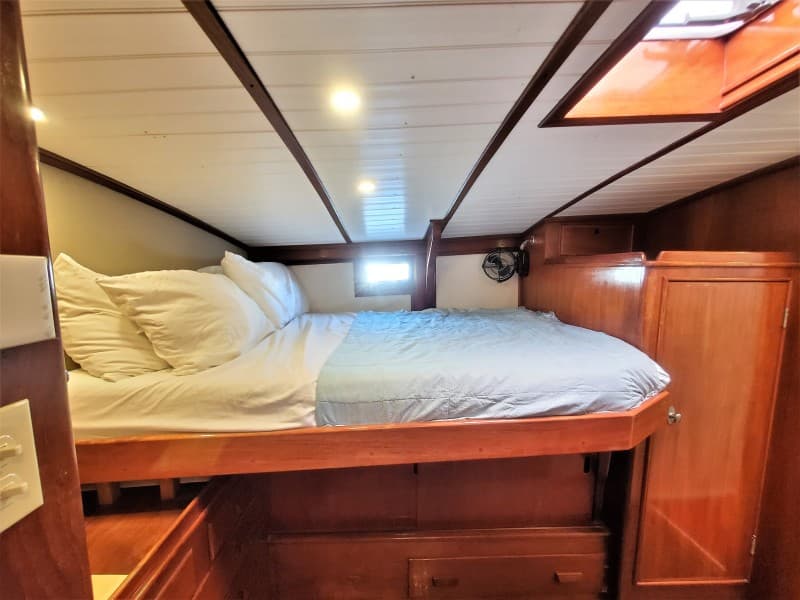

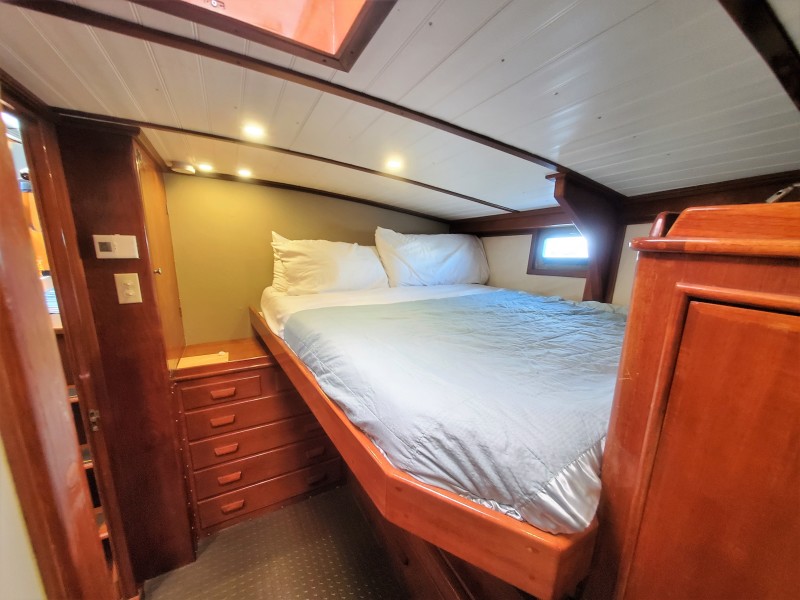

Main Stateroom with Double Bed, Hanging Lockers and Cabinet drawers.

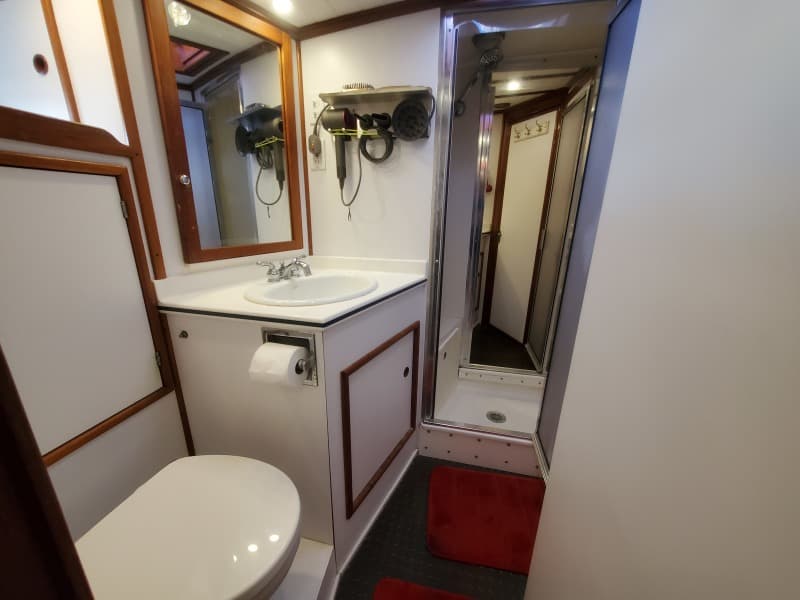

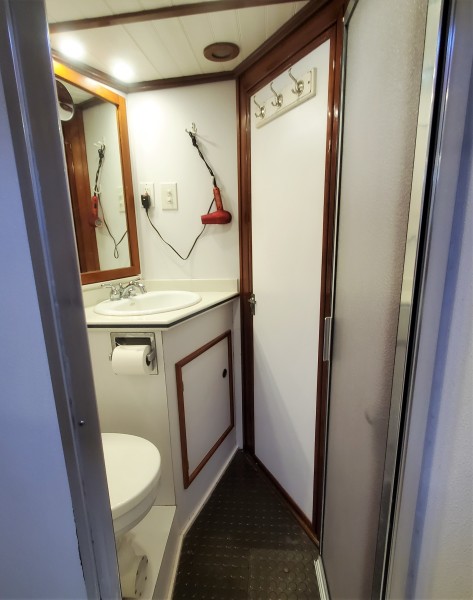

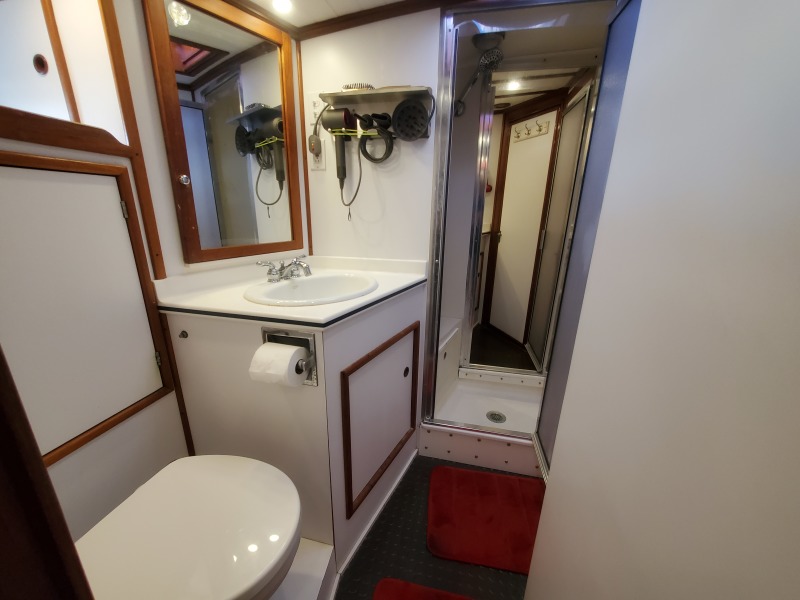

Ensuite Head with Raritan Electric Toilet and Jack and Jill shower Stall

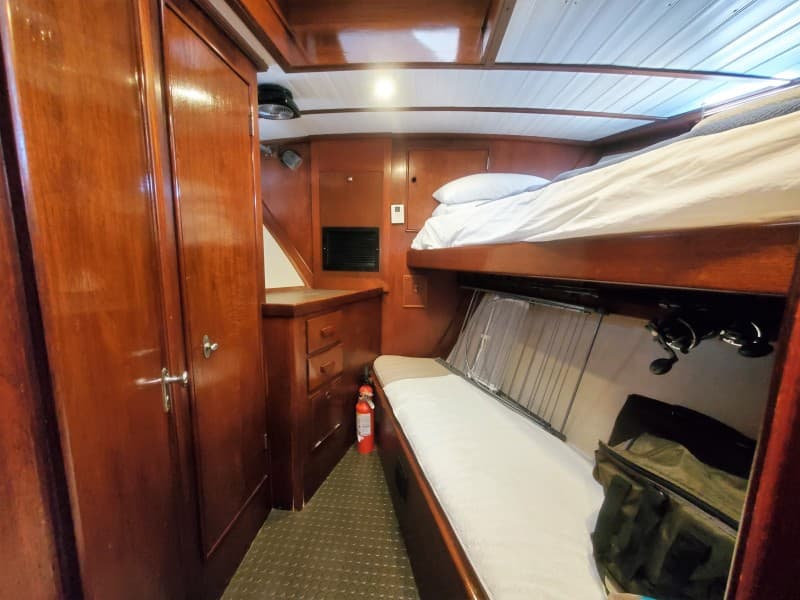

Forward Stateroom with Over / Under Bunks, Hanging Locker and Drawers
Forward Head with Raritan Electric Toilet. Shower is shared with Main SR Head
Opening Ports In Each Stateroom

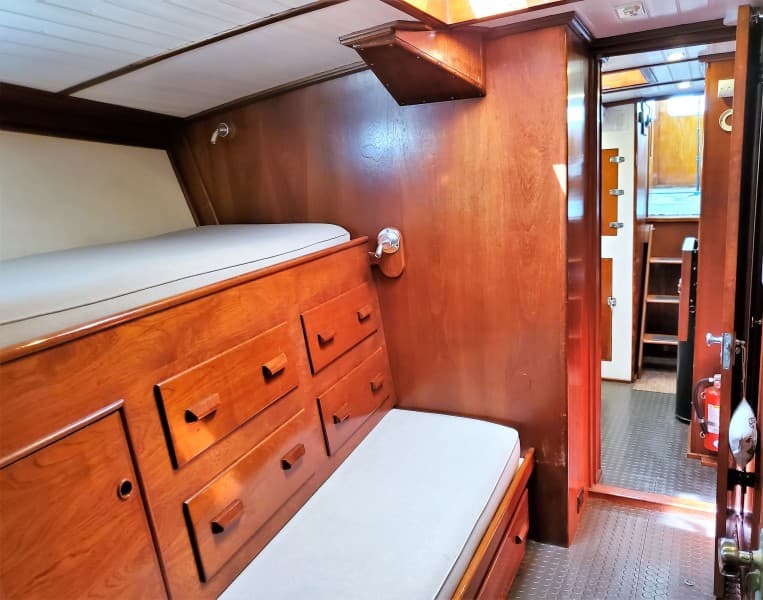

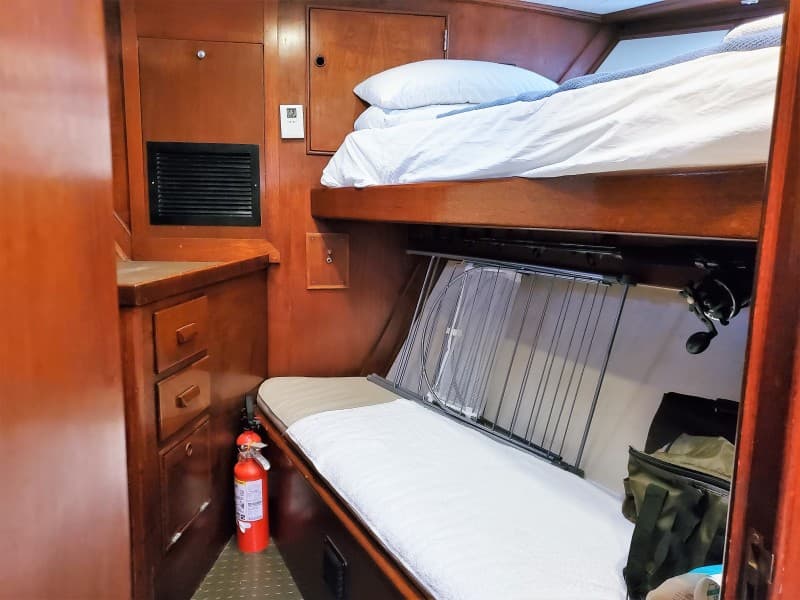

Midship Stateroom with Over / Under Bunks and access to Head

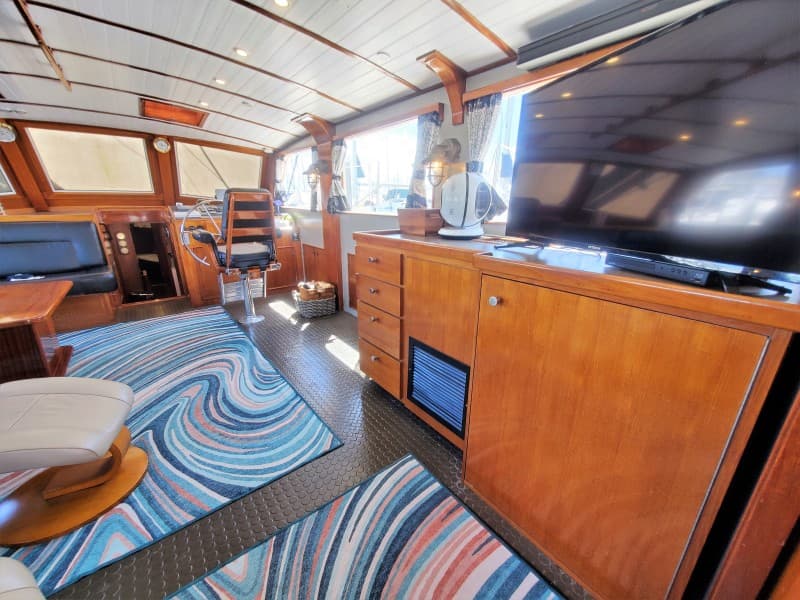

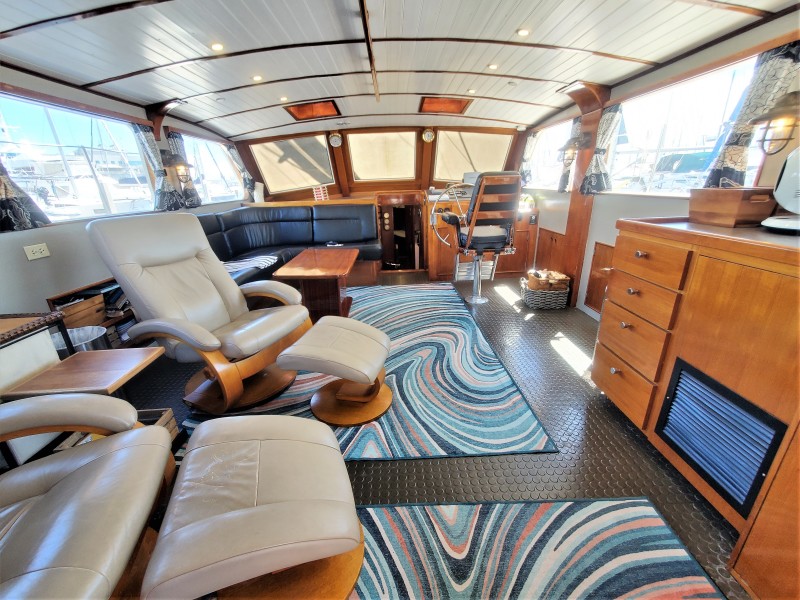

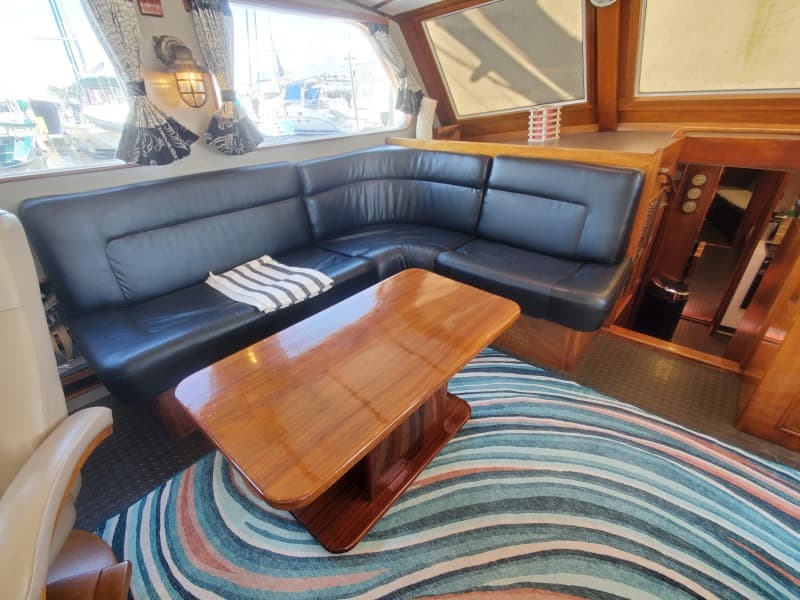

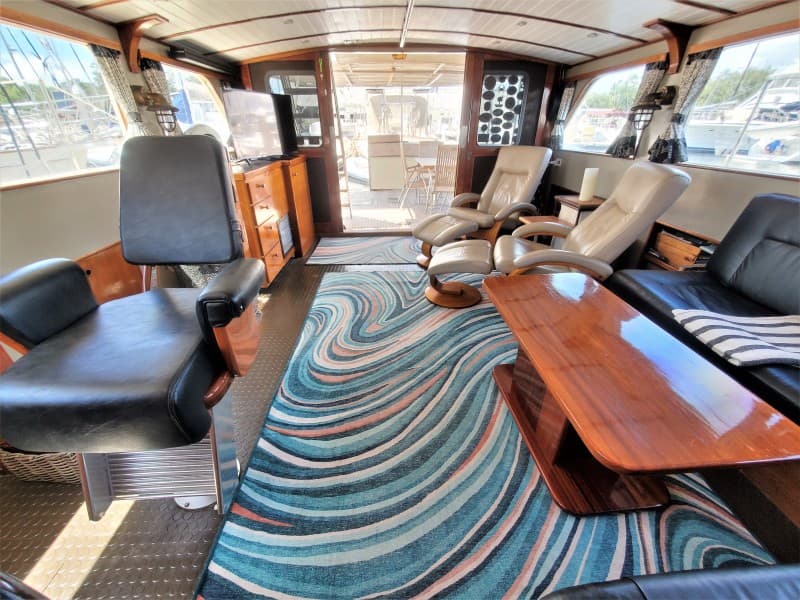

Main Salon

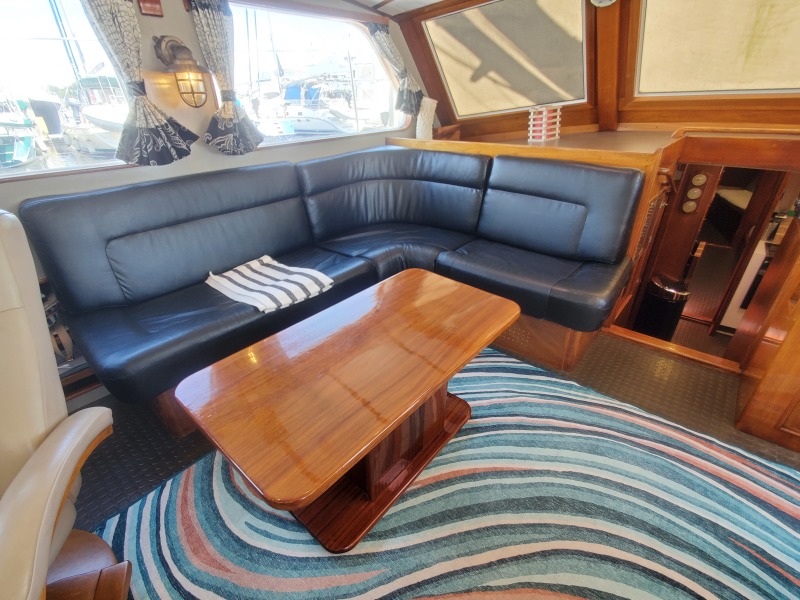

L Shaped Leather Sofa / Settee Forward on Port Side
Coffee Table

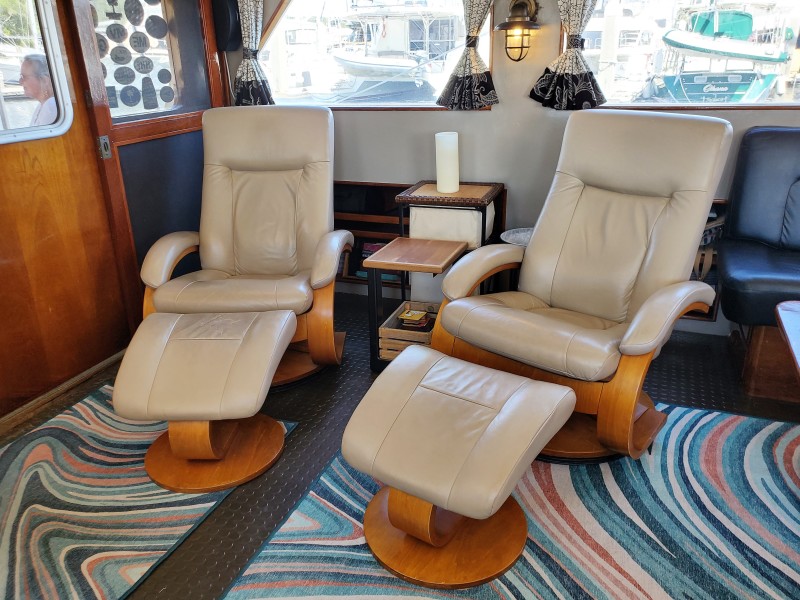

Two Reclining Scandia Chairs with Foot Rests
Lower Helm Forward on the Starboard Side
Teak Sliding Salon Doors
Teak Sliding Screened Doors
Overhead Teak Hand Railing
Durable Flooring with Rugs
3 Air Conditioning Units, with Reverse Cycle Heat

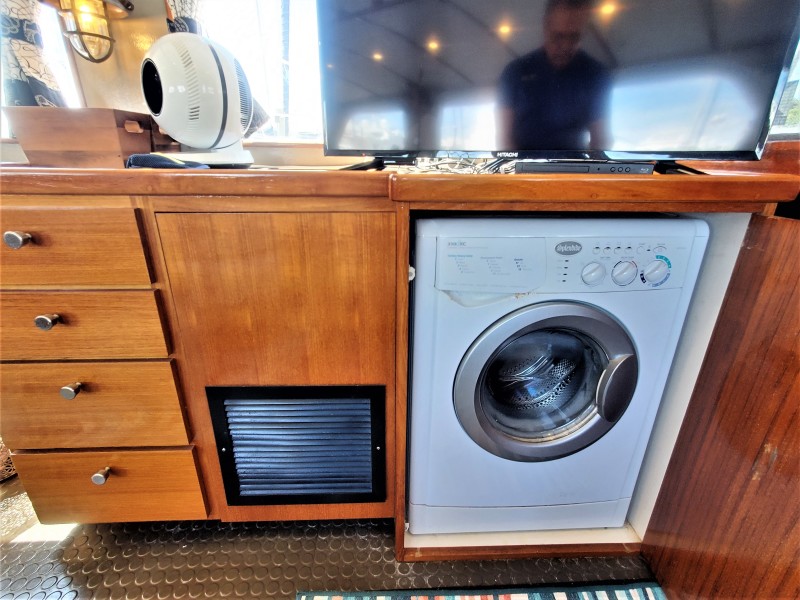

Splendide Washer Dryer Combo in Cabinet
Weems and Plath Barometer and Clock with Tide
4 x Bronze Sconce Lamps
Hitachi TV
Beadboard Ceiling Panels
Curtains
6' 5" Headroom in Salon
6" 3" Headroom in Cabins

Engine and Mechanical Equipment

Note: * In 2021 the Engine was removed from the vessel and was fully inspected, completely rebuilt and re installed in the boat. 200 Hours on the rebuild. Total hours prior to the rebuild are not known.

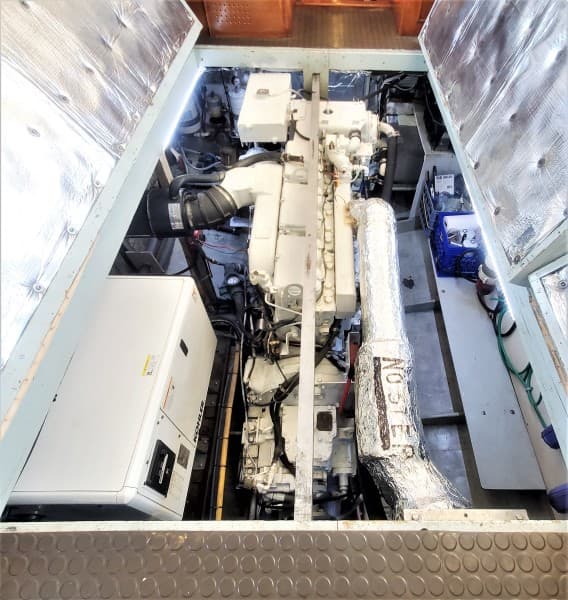

1989 Cummins 195 HP Engine , 6 Cylinders Naturally Aspirated
9 - 10 knots @1400 RPM (4000 nautical mile range under power)
200 Hours Since Major Over Haul SMOH in 2021

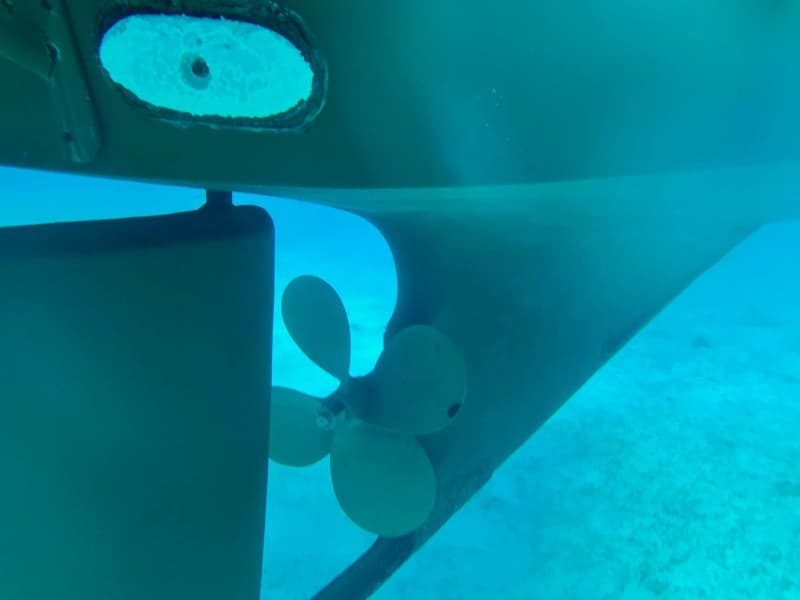

4 Blade 30" Bronze Propeller
Racor 500MA Fuel / Water Separator Primary

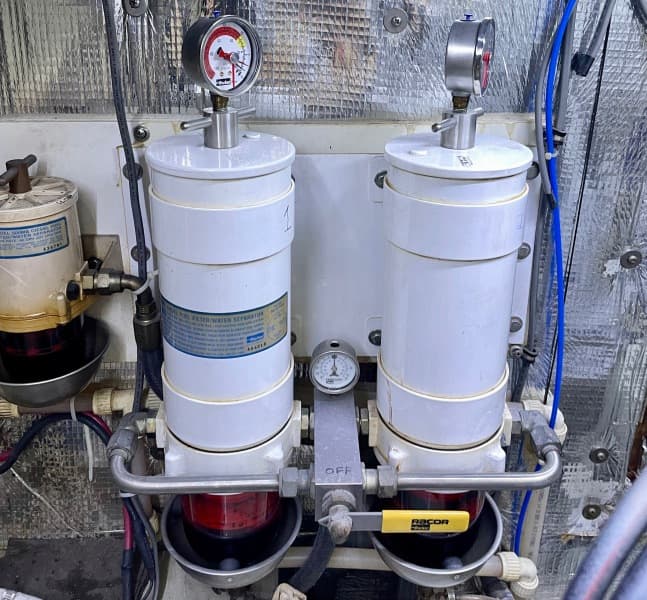

Dual Racor 1000 Fuel / Water Separators with Pressure Gauges
Engine Driven Bilge Pump
Racor 1000 Fuel Polishing System with 12 V Reverso Pump
Manual Oil Change Pump

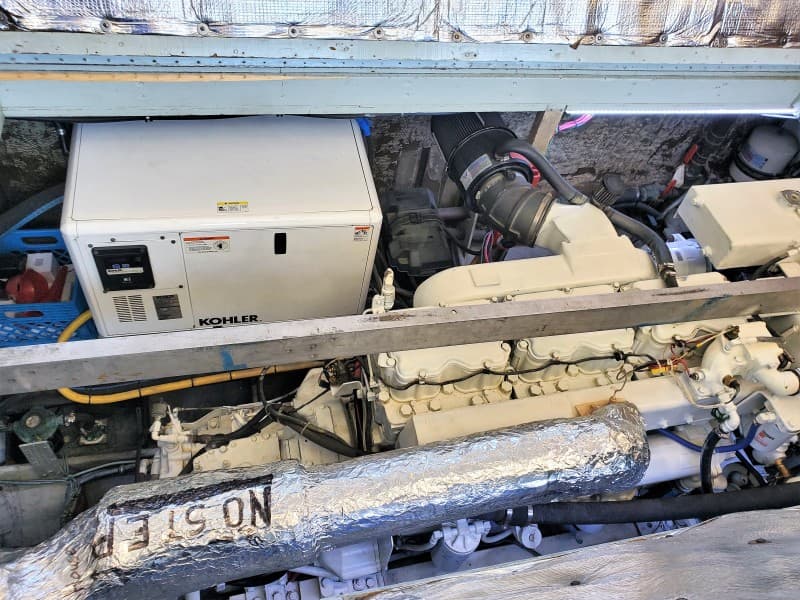

Kohler 9.5 KW Generator in Solid Sound Shield (3000 hours)
40 GPH Water Maker
Wagner Hydraulic Steering System
Stern Thruster on bracket to lift above water line to prevent algae growth
4 Fiberglass Fuel Tanks with a total of 2100 Gallons. Two Tanks are located in the engine bay and two additional tanks are located under the cockpit sole

Navigation and Helm Stations

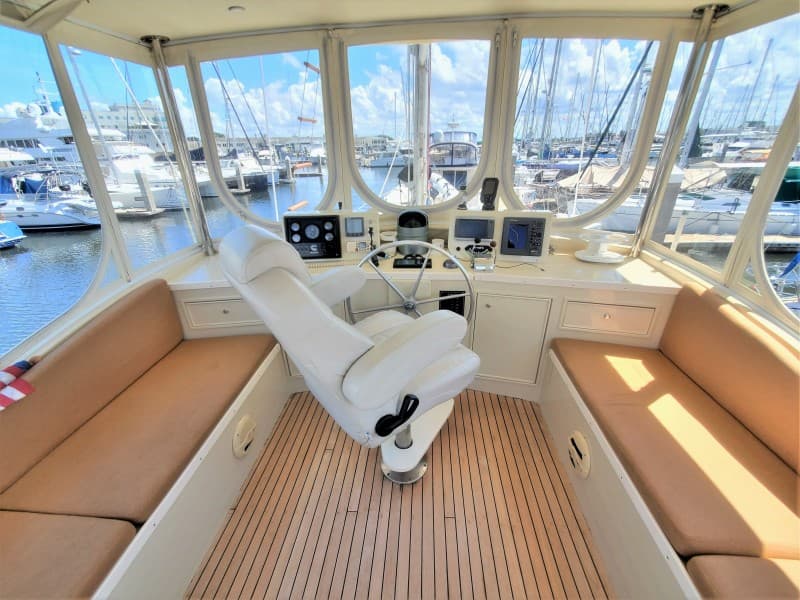

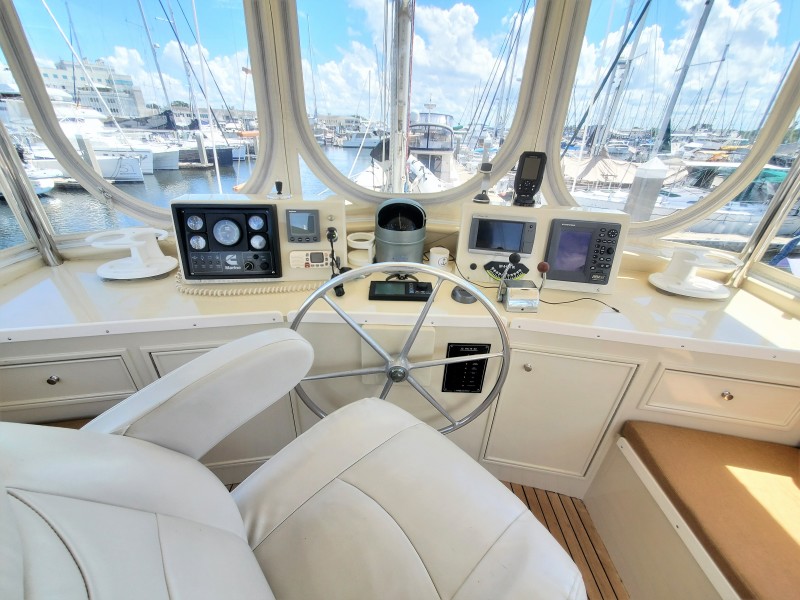

Upper Helm at Flybridge

The Upper Helm provides a full 360 degree view.

Captains Chair
Garmin Color 740 GPS Plotter.
Furuno Navnet Radar
Simrad AP20 Roberson Autopilot Controls
Standard Horizon Quest VHF Radio
Fish Finder with Depth
Fusion Stereo Control
Danforth Constellation 8" Compass with SS Binnacle
Lev O Gage
Cup Holders

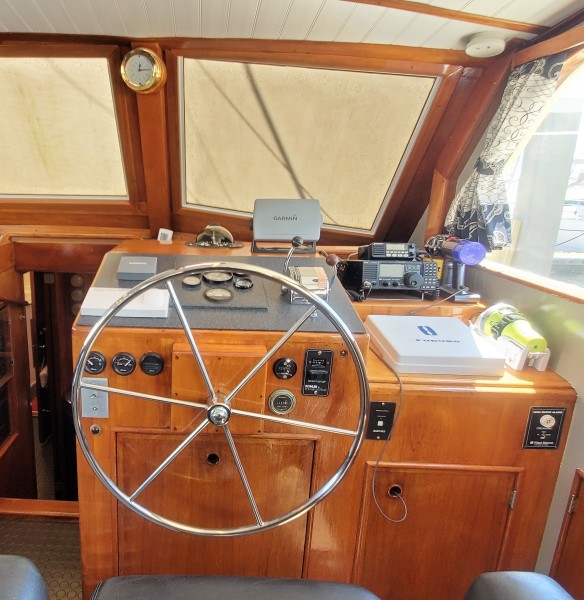

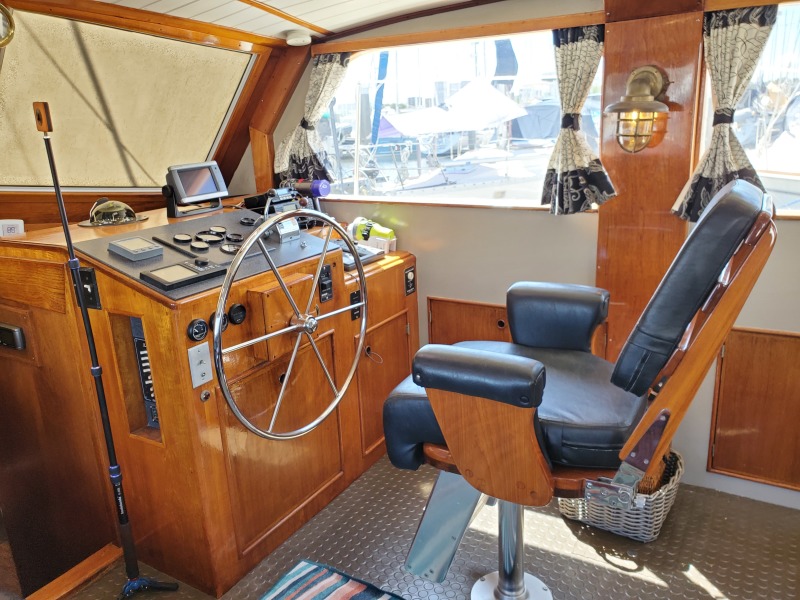

Inside Helm

Garmin Color 740 GPS Chartplotter Fish Finder
Furuno Navnet Radar
Simrad AP20 Robertson Autopilot Controls
Standard Horizon Omni VHF Radio
Ritchie Constellation 6" Compass
ICOM IC718 Hi Frequency SSB Receiver w/ Insulated Backstay Antenna
Multimode Pactor Controller for SSB

Ships Electrical

110V Electrical Panel
12V Electrical Panel
9.5KW Kohler Generator in Solid Box 3000 hours
2 x 50 Amp Connections; Port side and Starboard
50' 50 Amp Shore Power Cord
GFI Outlets
12V LED Lighting
12V Pro Mariner Battery Charger for House Bank
3x 8D Deep Cycle House Batteries
1 x Start Battery for Generator
1 x 8D 12V Deep Cycle Engine Start Battery
Xantrex 12V Battery Charger for Starting Battery and Windlass Batteries
2 x 225 Watt Solar Panels
MPPT Solar Charging Controller
IDEAL Electric 24V Bronze Anchor Windlass w/ Rode and Chain Gypsies
Windlass Foot Control
3 Zone Air Conditioning System
Aft Deck Flood Lights
12V Spreader Lights
3x 12V Electric and Manual Bilge Pumps
High Water Bilge Alarm
Guest Galvanic Isolator
Splendid 210 XC Clothes Washer/Dryer

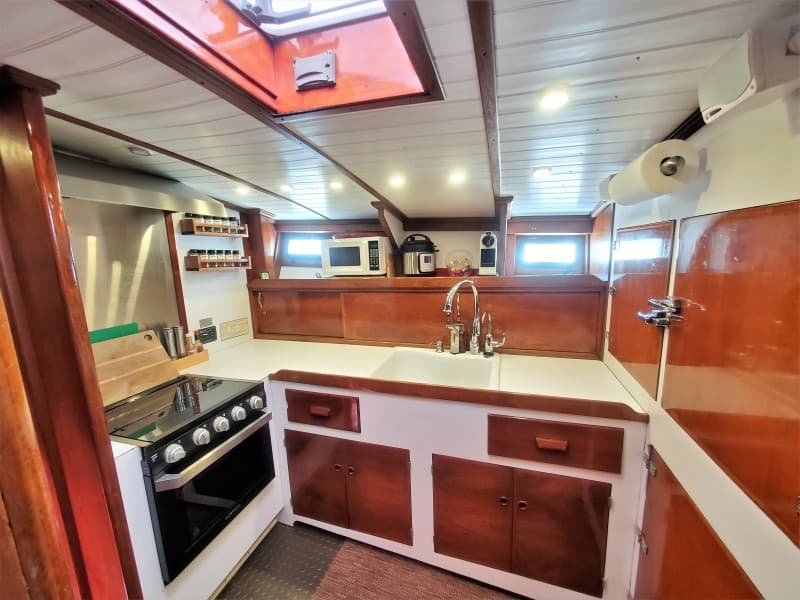

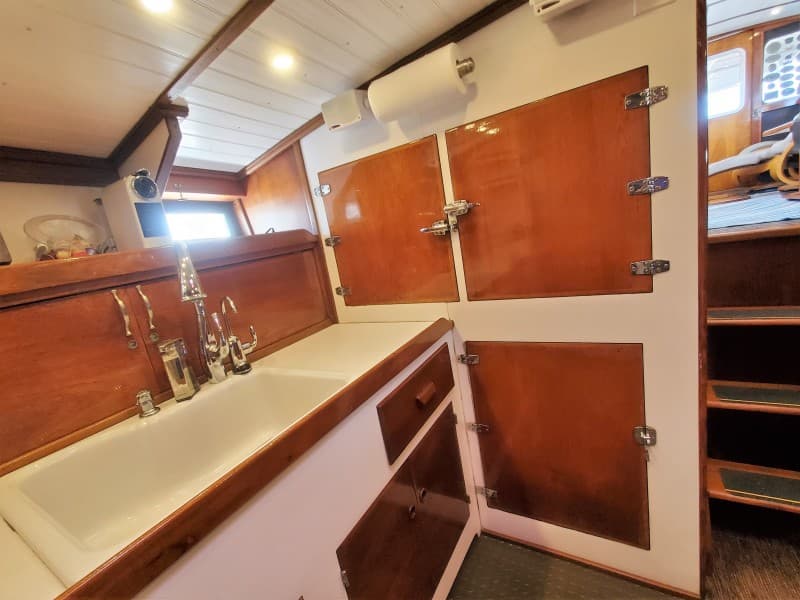

Galley

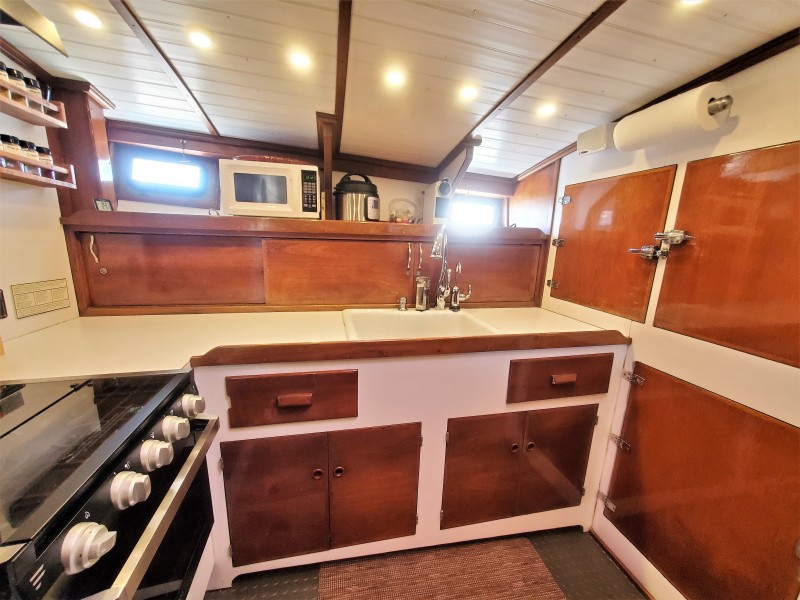

A true working Galley with plenty counter space and an impressive Refrigeration and Freezer system. Here you have room and the equipment to cook those gourmet meals.

20 Cubic ft. Frigiboat 12V Stainless Steel Front Loading Fridge with Water Cooled Keel.
10 Cubic ft Frigiboat 12V Stainless Steel Front Loading Freezer with Water Cooled Keel
3 Burner Princess Propane Stove with Oven
12V Exhaust Vent above Stove
Trident Propane Control
2 x 20 LBS Propane Tanks (in Vented Deck Box)
Large Sink with Faucet and Spigot Filter
Hot and Cold Fresh Water with Accumulator Tank
Cruise RO 40 GPH Water Maker with Fresh Water Flushing System
11 Gallon SS Hot Water Tank
Cabinet Storage

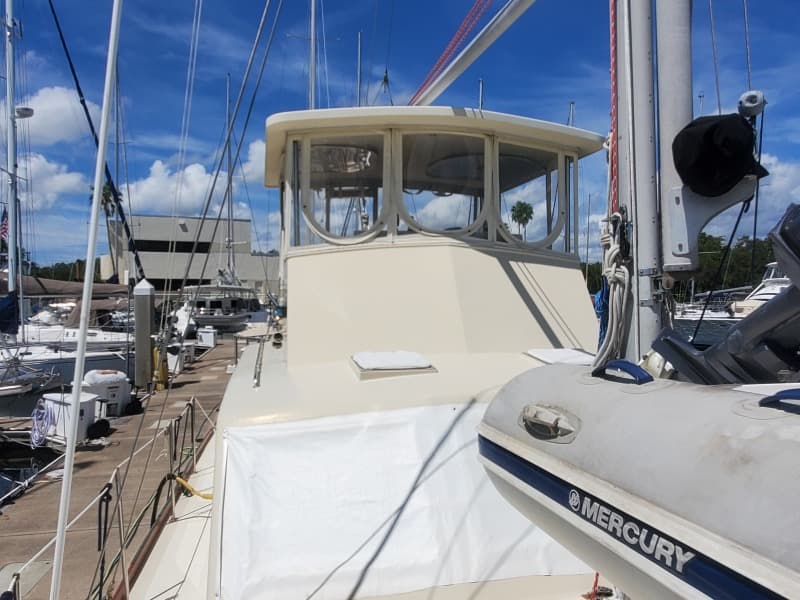

Deck and Hull

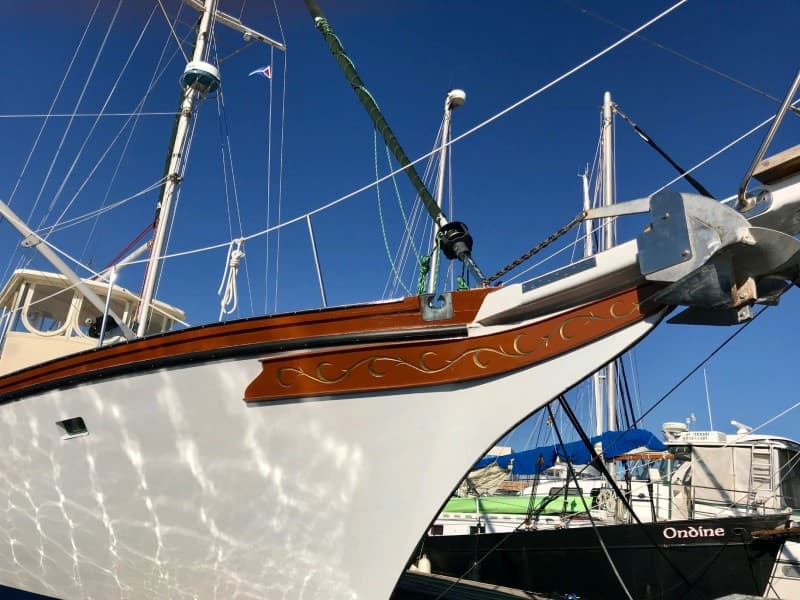

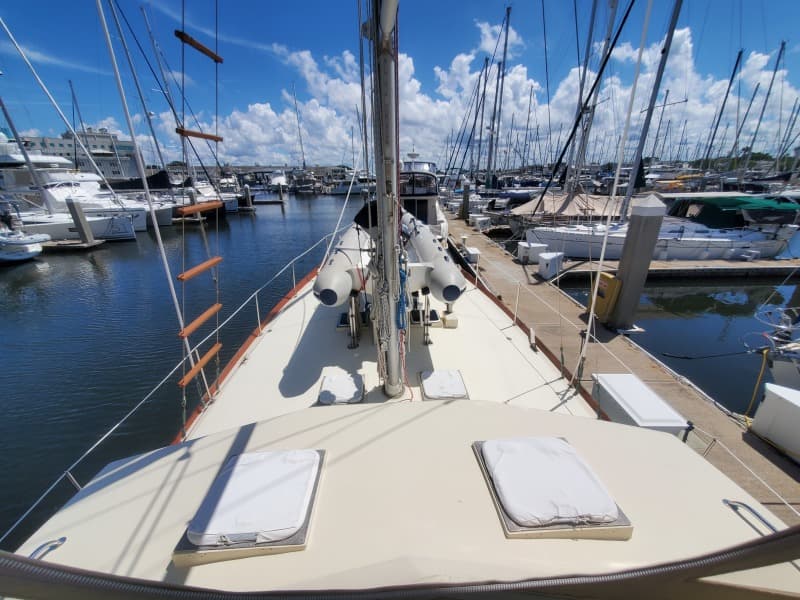

Arabella is blessed with a distinctive profile and deck layout. Her aft cockpit is an exceptional space with high gunwales and a protected canvas top. Side decks are wide enough for access to the forward deck area. Here you will find a stainless steel Dinghy Cradle. Forward is the striking bow sprit with anchor windlass and ground tackle.

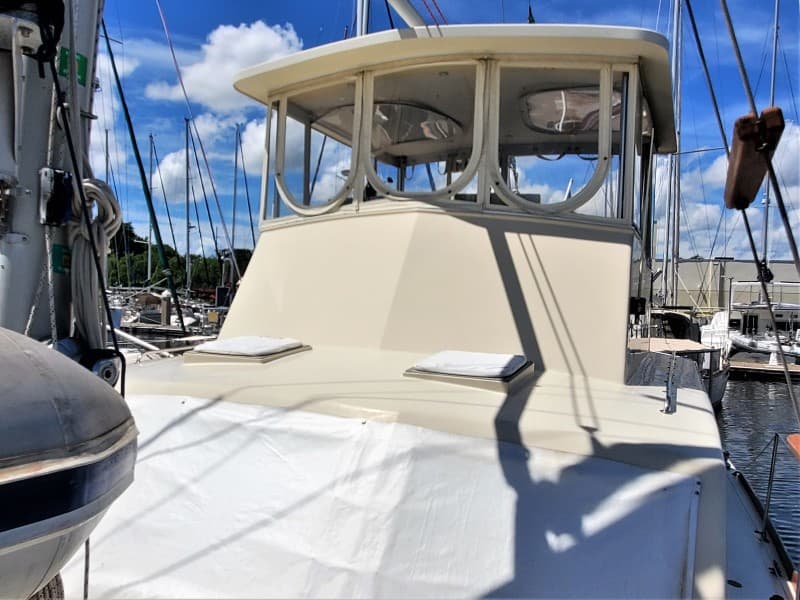

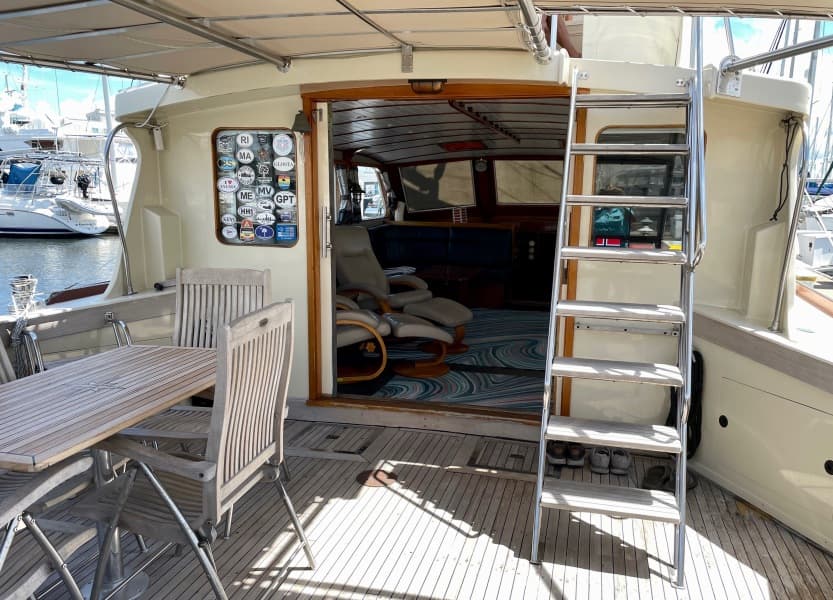

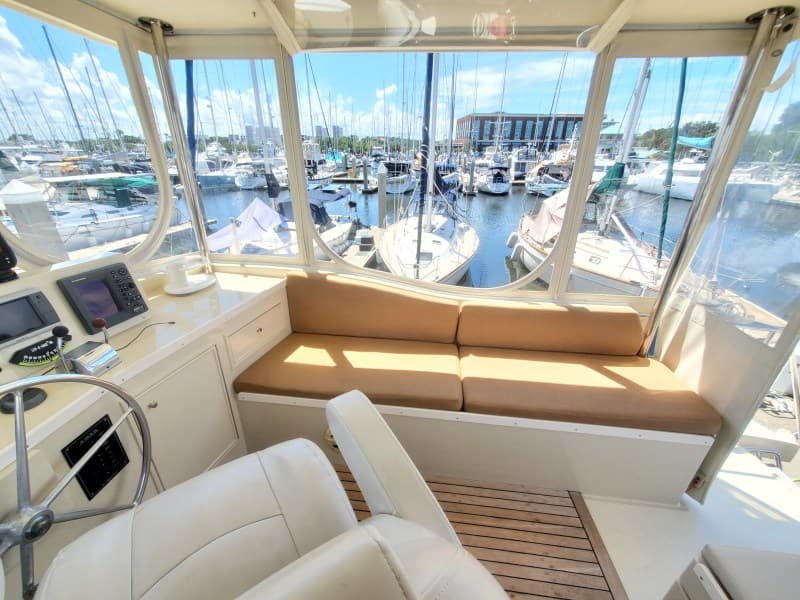

The Flybridge is accessed via a stainless steel ladder sloped at a easy to climb angle. Here you will find Bench seating and a comfortable centerline helm seat. The fully instrumented helm is protected by a Hard Top and soft sided enclosure with clear windows.

Flybridge
